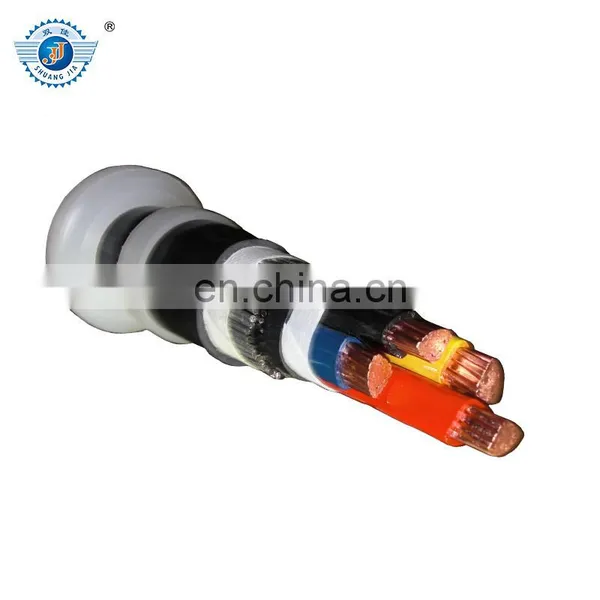

PVC insulated Armoured Power Cable
aluminum xlpe swa armoured cable is with following features and specificaitons:
1kv-10 kv xlpe armoured power cable are mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS standard, DIN standard, ASTM standard, etc.
Voltage grade is up to 35kv, cross-section area can be up to 400 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.
Laying conditions: For laying under ground with large different altitude, be able to bear external mechanical force and moderate pulling force.
-Standards / Testing Specifications: IEC 60502-1.
Installation This cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.
aluminum xlpe swa armoured cable with below size
Type | Name | Usage |
VV | PVC insulated PVC sheathed power cable | Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force |
VLV | ||
VY | PVC insulated and PE sheathed power cable | Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
VLY | ||
PVC insulated steel belt armored and PVC sheathed power cable | Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force | |
VLV22 | ||
VV23 | PVC insulated steel belt armored and PE sheathed power cable | Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
VLV23 | ||
VV32 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force |
VLV32 | ||
VV33 | PVC insulated fine steel wire armored PE sheathed power cable | Can be laid at indoor, underground .Cable can under take mechanism outside force |
VLV33 | ||
VV42 | PVC insulated thick steel wire armored PE sheathed power cable | Can be laid at indoor, underground,mining well .Cable can under take mechanism outside force |
VLV42 | ||
VV43 VLV43 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground ,mining well and the places of be terrible polluted. Cable can under take mechanism outside force |
MOQ,Capacity&Payment Method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight
If you are interested in our products, pls supply more specification, such as, how many cores, nominal section area, conductor material(aluminum or copper) and usuage to me. Then,I will send our best quotation to you.
