8030 Aluminum Alloy cable is With following features

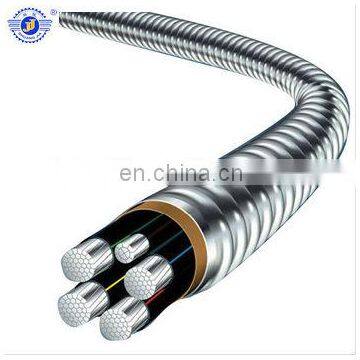

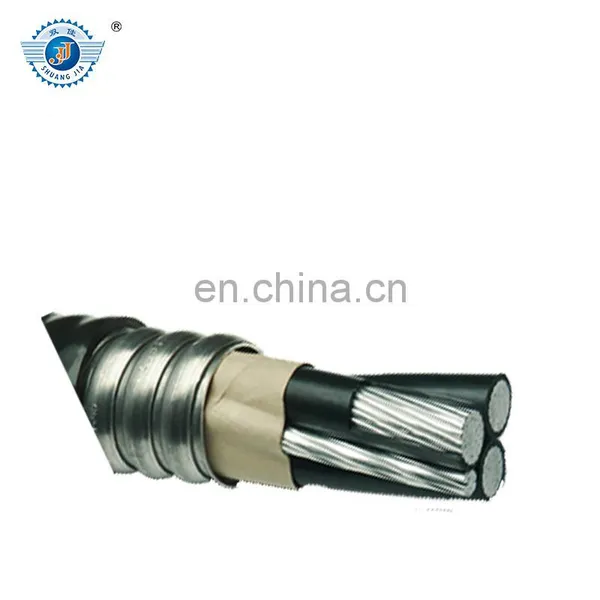

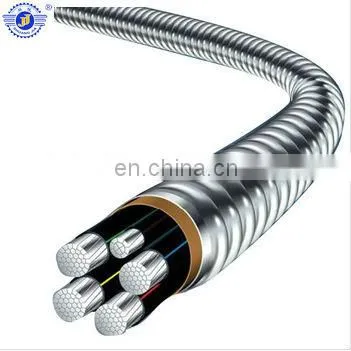

ZB-ACWU90(-40) is a highly flexible self-locking aluminum armored,PVC out sheath 90°C XLPE waterproof insulated single core or multi-core low smoke and free halogen Grade B cable.For it has PVC outer sheath of Grade FT4, ZB-ACWU90(-40) reduces the difficulty in duct wiring and labor cost.The cable has been assembled with highly flexible self-locking aluminum armor and sealing PVC our sheath,and there is no need to conduct the procedures such as duct and its accessories and manual intensive wire drawing,threading and pipe formation. ZB-ACWU90(-40) passed the CSA certification.It can be applied to lay open wiring and buried wiring in dry and humid environment and also in District 1 and District 2 Grade 1 dangerous environment and Grade 2,3 dangerous environment.Trestle,bracket,tray and cable gripper can be used for exposed laying indoor,and direct-buried,cable trench,cable tunnel and so on for out door.There is calibration marks on ZB-ACWU90(-40) per meter so as to ascertain the cable length accurately.It is in great compliance with the testing item standards IEC60502.1 and GB 12706.1.
8030 Aluminum Alloy following code and specification
Code Word | AWG or Kcmil | Bare Neutral Messenger | Phase Conductor | Weight | ||
AL.-ALLOY Stranding and wires Dia(mm) | Rated strength(lbs) | Al. Stranding and wires Dia(mm) | XLPE Insulated thickness(mm) | (kg/km) | ||
Minex | 2*6AWG+1*30.58 | 7/1.68 | 1110 | 1/4.11 | 1.14 | 152 |
prawn | 2*4AWG+1*48.69 | 7/2.12 | 1760 | 1/5.19 | 1.14 | 229 |
Shrimp | 2*2AWG+1*77.47 | 7/2.67 | 2800 | 7/2.47 | 1.14 | 354 |
Cammarus | 2*1/0AWG+1*123.3 | 7/3.37 | 4460 | 7/3.12 | 1.52 | 569 |
Dungeness | 2*2/0AWG+1*155.4 | 7/3.78 | 5390 | 7/3.50 | 1.52 | 702 |
Cyclops | 2*3/0awg+1*155.4 | 7/3.78 | 5390 | 19/2.13 | 1.52 | 703 |
Flustra | 2*3/0AWG+1*195.7 | 7/4.25 | 6790 | 19/2.39 | 1.52 | 869 |
LEPAS | 2*4/0AWG+1*246.9 | 7/4.77 | 8560 | 19/2.68 | 1.52 | 1077 |
CRAB | 2*4AWG+1*30.58 | 7/1.68 | 1110 | 7/1.96 | 1.14 | 208 |
SDCRAB | 2*1/0AWG+1*77.47 | 7/2.67 | 2800 | 7/3.12 | 1.52 | 504 |
YJHLV8(AC90)is a high flexible self-locking aluminum aluminum armored, 90°CXLPE insulated single core or multi-core low smoke and free halogen Grade A cable.
YJHLV8(AC90) reduces the difficulty in duct wiring and labor cost.The cable has been assembled with highly flexible selflocking aluminum armor and there is no need to conduct the procedures such as duct and its accessories and manual intensive wire drawing, threading and pipe formation.
YJHLV8(AC90) passed the CSA certification.It can be applied to lay open wiring in non-humid environment.And it applies same performance with the wire laying way of duct. ZA-AC90(-40)is of low smoke and free halogen and is in line with the testing items standards IEC60754,GB1765.2 and GB12706.1.
MOQ, Capacity& Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight

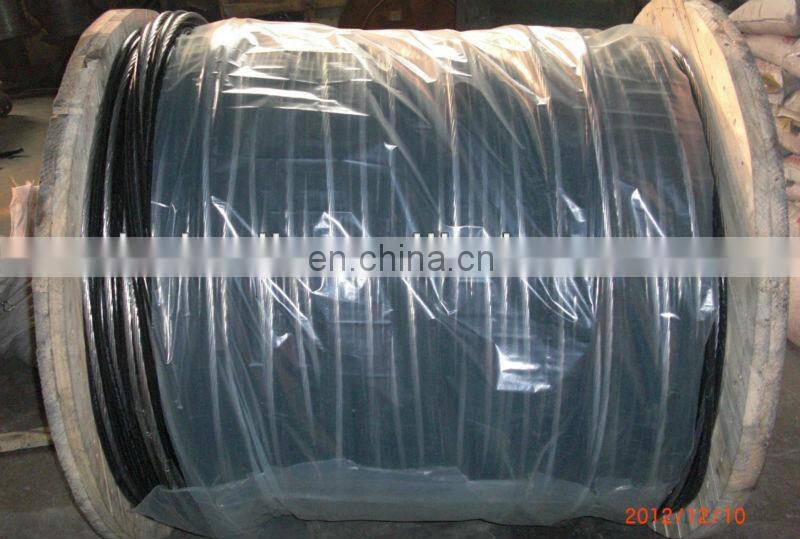

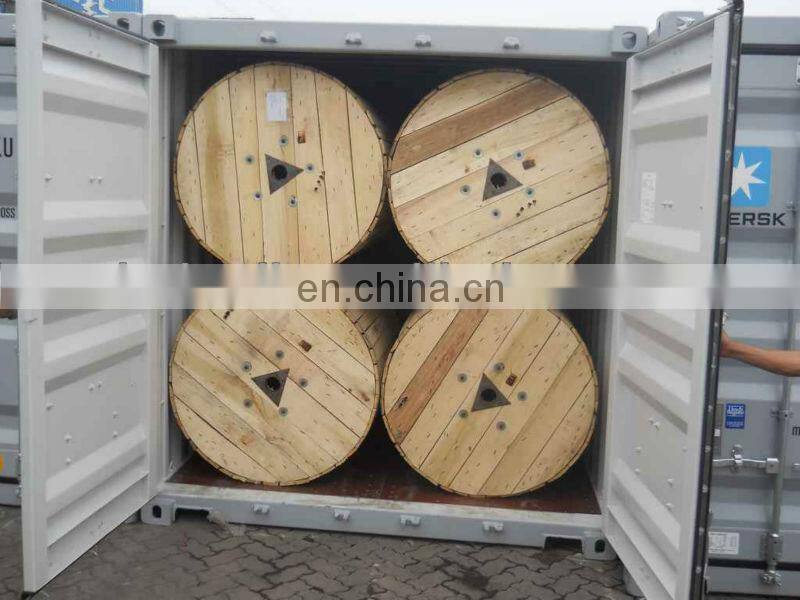

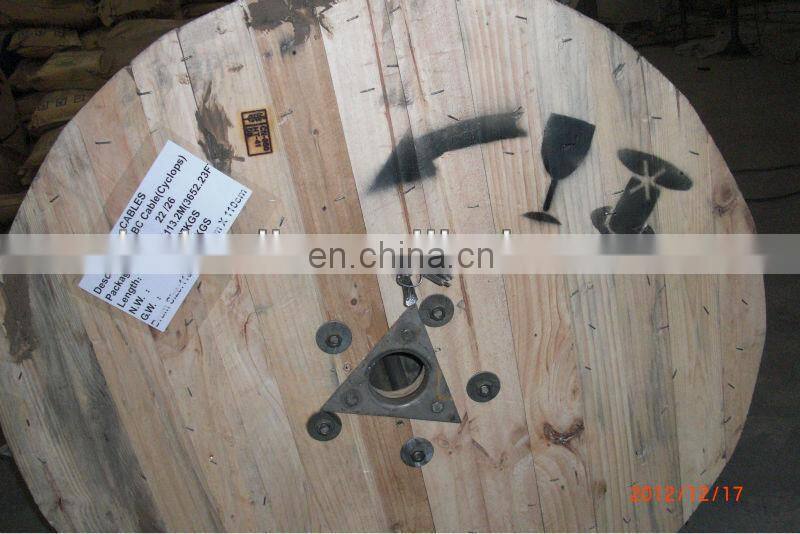

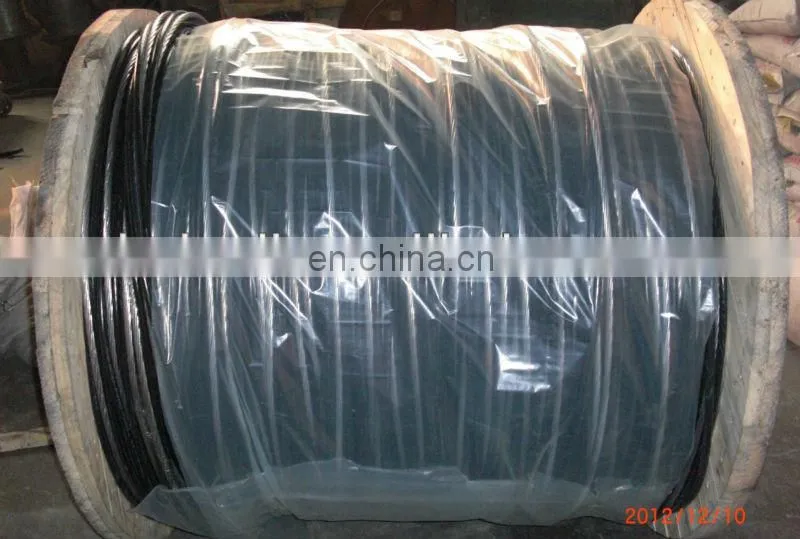

Packing pictures
