Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Power Transmission Line Aluminum Cable AAC ACSR ABC Cable

Power Transmission Line Aluminum Cable AAC ACSR ABC Cable

Name: Power Transmission Line Aluminum Cable AAC ACSR ABC Cable
Brand: shuangjia
SKU: 166275221
Availability: InStock

Power Transmission Line Aluminum Cable AAC ACSR ABC Cable thumbnail-1

Power Transmission Line Aluminum Cable AAC ACSR ABC Cable photo-1

US$ 0.1 - 3.9 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Brand Name:

shuangjia

Place of Origin:

Henan, China

Model Number:

AAC, ACSR, AAAC, ABC Cable

Contact Supplier Request Quote Chat Now

Henan Huaxing Wires And Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name shuangjia

Place of Origin Henan, China

Model Number AAC, ACSR, AAAC, ABC Cable

Type High Voltage

Insulation Material PVC

Jacket Other

Conductor Material Aluminum

Aluminum Cable with XLPE Insulation NA2XY: Al/XLPE/PVC

Advantages:

Excellent electric and mechanical properties;

Stronger resistance against chemical corrosion;

High performance of heat resistance and environmental stress resistance;

No restriction of different levels for laying

AAC Bare Aluminum Cable

Construction: Aluminum 1350-H19 wires, concentrically stranded

AAAC-6201 Alloy Bare Aluminum

Construction: Standard 6201-T81 high strength aluminum conductors, conforming to ASTM specification B-399, are concentric-lay-stranded, similar in construction and appearance to 1350 grade aluminum conductors.

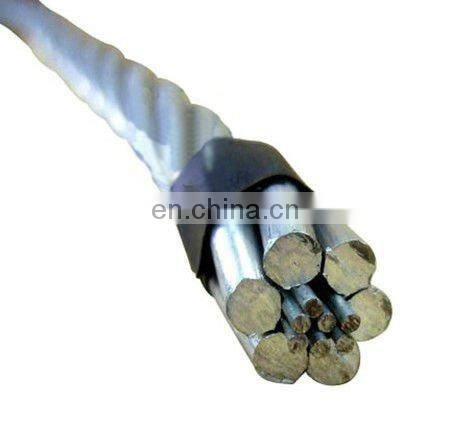

ACSR Aluminum Conductor teel Reinforced

Construction:

(6 Al/1 St, 18 Al/1 St, 36 Al/1 St;

12 Al/7 St, 26Al/7 St, 48Al/7 St, 54 Al/7 St;

54 Al/19 St, 84Al/19 St)

Aluminum alloy 1350-H19 wires, concentrically stranded about a steel core.

Core wire is available with class A,B or C galvanizing.

Aluminized aluminum coated (AZ) or aluminum-clad (AW).

ABC Cable:

Phase conductor:

Conductor: compacted, stranded, hard drawn aluminium wires

Insulation: dry cured cross linked polyethylene (XLPE) or PE

Neutral core:

Conductor: AAC AAAC or ACSR.

Insulation: XLPE , PE or bare

ABC cable Include following code and specification

Code Word	AWG or Kcmil	Bare Neutral Messenger		Phase Conductor		Weight
Code Word	AWG or Kcmil	AL.-ALLOY Stranding and wires Dia(mm)	Rated strength(lbs)	Al. Stranding and wires Dia(mm)	XLPE Insulated thickness(mm)	(kg/km)
Minex	26AWG+130.58	7/1.68	1110	1/4.11	1.14	152
prawn	24AWG+148.69	7/2.12	1760	1/5.19	1.14	229
Shrimp	22AWG+177.47	7/2.67	2800	7/2.47	1.14	354
Cammarus	21/0AWG+1123.3	7/3.37	4460	7/3.12	1.52	569
Dungeness	22/0AWG+1155.4	7/3.78	5390	7/3.50	1.52	702
Cyclops	23/0awg+1155.4	7/3.78	5390	19/2.13	1.52	703
Flustra	23/0AWG+1195.7	7/4.25	6790	19/2.39	1.52	869
LEPAS	24/0AWG+1246.9	7/4.77	8560	19/2.68	1.52	1077
CRAB	24AWG+130.58	7/1.68	1110	7/1.96	1.14	208
SDCRAB	21/0AWG+177.47	7/2.67	2800	7/3.12	1.52	504

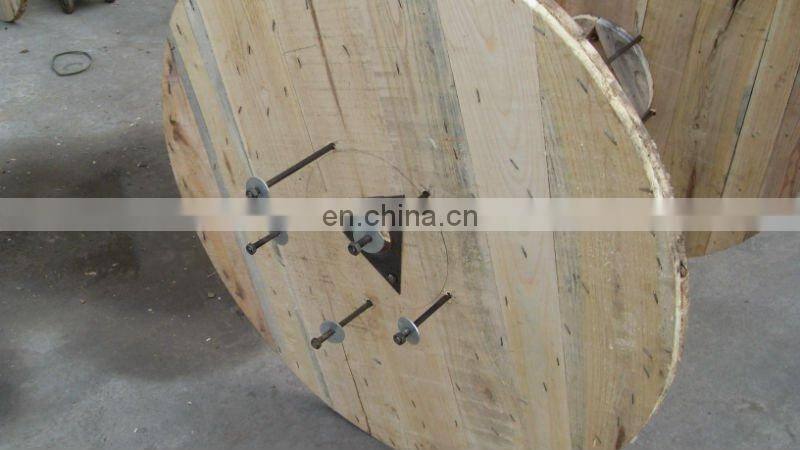

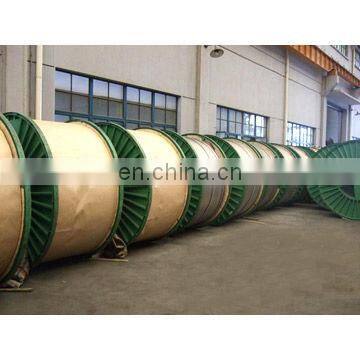

Packing Pictures:
