Overhead Conductor 100mm2 ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW 1350 Hard Draw Aluminum Strands for Power Stations

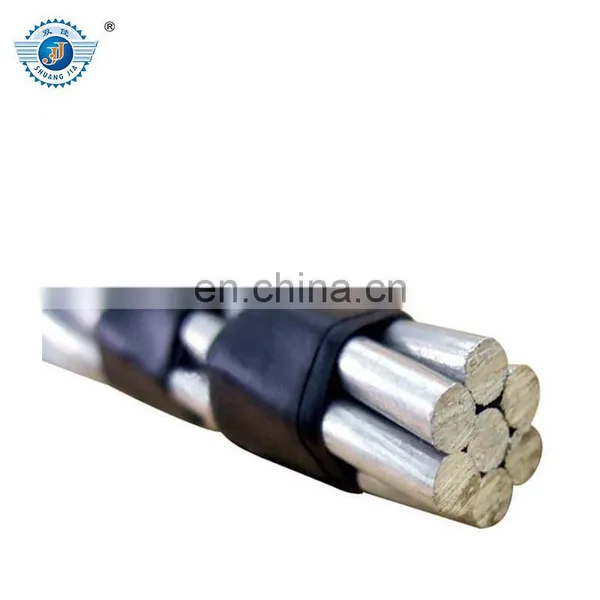

Overhead Conductor 100mm2 ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW 1350 Hard Draw Aluminum Strands for Power Stations thumbnail-1
Overhead Conductor 100mm2 ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW 1350 Hard Draw Aluminum Strands for Power Stations photo-1
US$ 1 - 5.8 MOQ: 1 Meter
Key Specifications
Get Latest Price
Brand Name:
Shuangjia
Place of Origin:
Henan, China
Model Number:
AAAC, AAC/ACSR/AAAC Bare Conductor
Contact Supplier Request Quote Chat Now
Henan Huaxing Wires And Cables Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shuangjia
Place of Origin Henan, China
Model Number AAAC, AAC/ACSR/AAAC Bare Conductor
Type Low Voltage

AAAC Conductor--All Aluminum Alloy Conductor



Brief Introduction:



AAAC (All Aluminum Alloy Conductor) referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR;







Having lower breaking loads than the latter, their use becomes particularly favourable when ice and win loadings are low.
We can supply this conductor according to different recognized standards, such as BS EN50182, IEC61089, ASTM B399DIN 48, customer special specification also can be satisfied.




 Applications:



  Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics. Aluminum-alloy gives 6201-T81 gives AAAC higher resistance to corrosion than ACSR.











All Aluminlum Alloy Conductors                                  BS  EN  50183

Old code Area No.of wires Diameter Mass per unit length Rated strength DC resistance
Wire Cond.
mm2   mm mm kg/km kN Ω/km
BOX 18.8 7 1.85 5.55  51.1  5.55 1.7480
ACACLA 23.8 7 2.08 6.24  64.9  7.02 1.3828
ALMOND 30.1 7 2.34 7.02  82.2  8.88 1.0926
CEDAR 35.5 7 2.54 7.62  96.8  10.46 0.9273
DEODAR 42.2 7 2.77 8.31  115.2  12.44 0.7797
FIR 47.8 7 2.95 8.85  130.6  14.11 0.6875
HAZEL 59.9 7 3.3 9.90  163.4  17.66 0.5494
PLNE 71.6 7 3.61 10.8 195.6  21.14 0.4591
HOLLY 84.1 7 3.91 11.7 229.5  24.79 0.3913
WILLOW 89.7 7 4.04 12.1 245.0  26.417 0.3665
OAK 118.9 7 4.65 14.0  324.5  35.07 0.2767
MULBERRY 150.9 19 3.18 15.9  414.3  44.52 0.2192
ASH 180.7 19 3.48 17.4  496.1  53.31 0.1830
ELM 211 19 3.76 18.8  579.2  62.24 0.1568
POPLAR 239.4 37 2.87 20.1  659.4  70.61 0.1387
SYCAMORE 303.2 37 3.23 22.6  835.2  89.40  0.1095
UPAS 362.1 37 3.53 24.7  997.5  106.82 0.0917
YEW 479 37 4.06 28.4  1319.6  141.31 0.0693
TOTARA 498.1 37 4.14 29.0  1372.1  146.93 0.0666
RUBUS 586.9 61 3.5 31.5  1622.0  173.13 0.0567
SORBUS 659.4 61 3.71 33.4  1822.5  194.53 0.0505
ARAUCARIA 821.1 61 4.14 37.3  2269.4  242.24 0.0406
REDWOOD 996.2 61 4.56 41.0  2753.2  293.88 0.0334





GB/T 1179-1999

Code Number

Stranding Wire Diameter

Approx

Sectional Area

ApproxWeight

Breaking Load

DC Resistance

Overall

Al

Steel

Diameter

Al

Steel

Total

mm

mm

mm

mm 2

mm 2

mm 2

Kg/km

KN

Ohm/km

16

6/1.84

1/1.84

5.53

16

2.67

18.7

64.6

6.08

1.7934

25

6/2.30

1/2.30

6.91

25

4.17

29.2

100.9

9.13

1.1478

100

6/4.61

1/4.61

13.8

100

16.7

117

403.8

34.33

0.2869

125

18/2.97

1/2.97

14.9

125

6.94

132

397.9

29.17

0.2304

160

18/3.36

1/3.36

16.8

160

8.89

169

509.3

36.18

0.18

250

22/3.80

7/2.11

21.6

250

24.6

275

880.6

68.72

0.1154

400

54/3.07

7/3.07

27.6

400

51.9

452

1510.3

123.04

0.0723

450

54/3.26

7/3.26

29.3

450

58.3

508

1699.1

138.42

0.0643

500

54/3.43

7/3.43

30.9

500

64.8

565

1887.9

153.8

0.0578

560

54/3.63

19/2.18

32.7

560

70.9

631

2103.4

172.59

0.0516

630

54/3.85

19/2.31

34.7

630

79.8

710

2366.3

191.77

0.0459

710

54/4.09

19/2.45

36.8

710

89.9

800

2666.8

216.12

0.0407

800

72/3.76

7/2.51

37.6

800

34.6

835

2480.2

167.41

0.0361

900

72/3.99

7/2.66

39.9

900

39.9

939

2790.2

188.33

0.0321

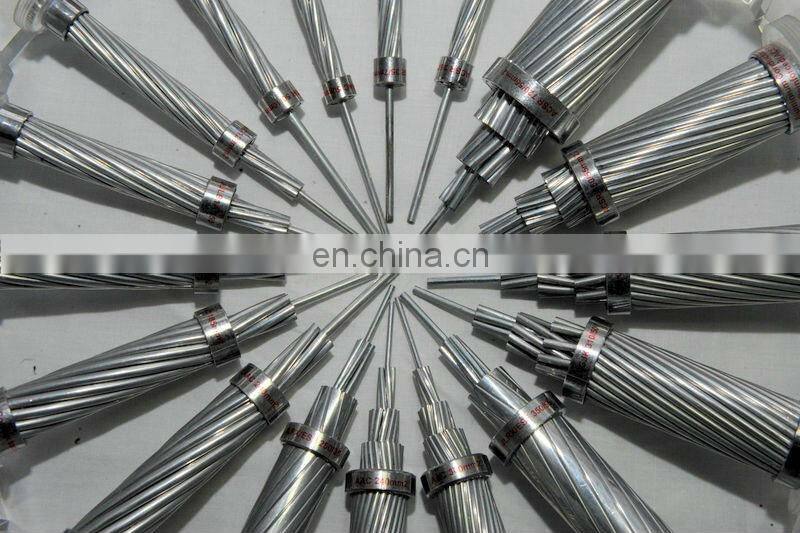

Overhead Conductor 100mm2 ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW 1350 hard draw aluminum strands for power stationsOverhead Conductor 100mm2 ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW 1350 hard draw aluminum strands for power stationsOverhead Conductor 100mm2 ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW 1350 hard draw aluminum strands for power stations

Overhead Conductor 100mm2 ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW 1350 hard draw aluminum strands for power stations

Overhead Conductor 100mm2 ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW 1350 hard draw aluminum strands for power stations

Overhead Conductor 100mm2 ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW 1350 hard draw aluminum strands for power stations

Our service

1) Inquiries are typically answered within 12 hours and OEM is welcome.

2) We have experienced QC to control the quality of different kind of cables.

3) We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.

4) We have grown from a small factory with an annual turnover of USD50,000 to over USD50,000,000 during these 10 years.

5) Huge Inventory Allows Us To Ship Your Order Immediately

6) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.

7) We ship worldwide.



Please feel free to contact me for more information.
