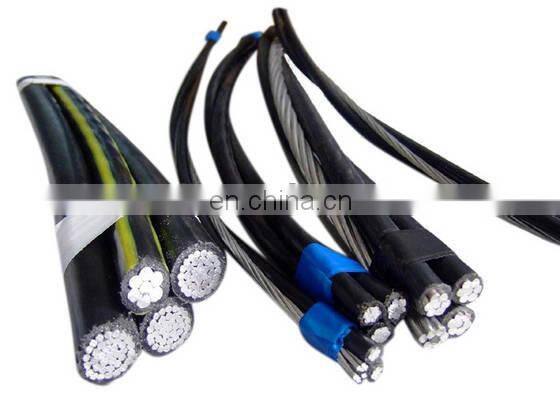

GOST 15150 XLPE Insulated wire cable SIP 2

GOST 15150 XLPE Insulated wire SIP 1 SIP2


Application:

XLPE Insulated wire SIP1 SIP2 used for OVERHEAD electric energy distribution with voltage 600/1000V.

SIP is used for trunk air electrical networks and branches to entering in dwelling, economic buildings. High strength and resistance to mechanic damage of SIP provide uninterrupted supply of electricity, working even in difficult climatic and aggressive chemical conditions.

Construction:

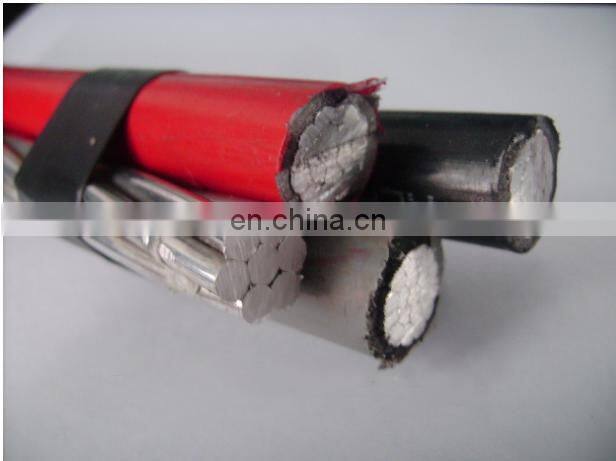

SIP 2 – self-supporting wire phase cores with Aluminum conductor and cross-linked polyethylene insulation, zero bearing core with aluminum alloy conductor and cross-linked polyethylene insulation

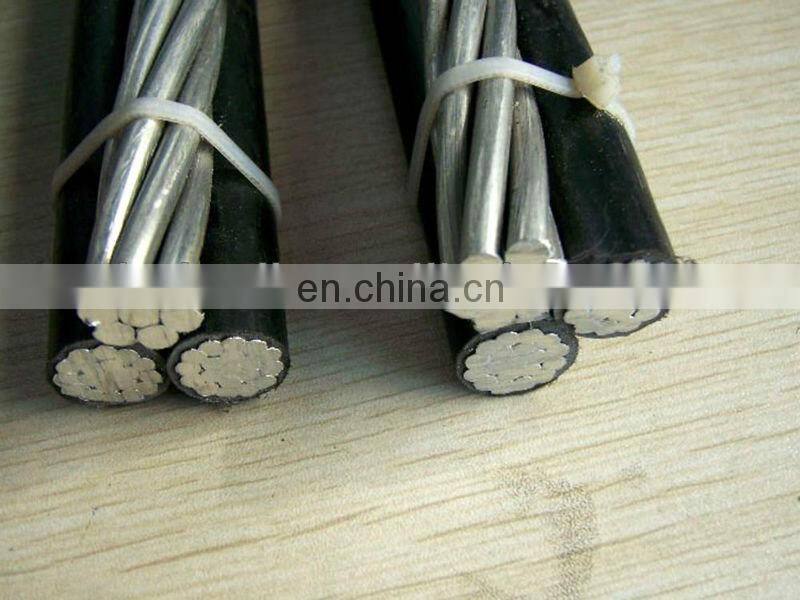

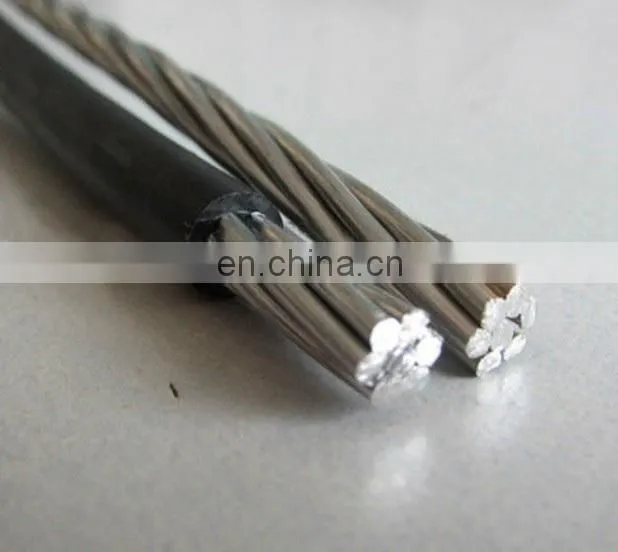

SIP 1 – self-supporting wire phase cores with Aluminum conductor and cross-linked polyethylene insulation, zero bearing core with aluminum alloy conductor (bare AAAC)

Standard: GOST 15150

        DSTU 4743:2007,

         DSTU 4809:2007

         TU U 31.3-30913256-001:2009.

SIP Specifications:

1.operating temperature from -60 Deg C up to +50 Deg C;

2.maximum permissible reheat temperature of cores:

- at the short circuit (up to 4 seconds)  250 Deg C;

- during operation not more than +90 Deg C;

3.installation and laying of cables without the preheating realizes with the temperature not lower than -20 Deg C;

4.minimum bending radius by wire laying - 10 external dimensions of cable;

5.service life – not less than 40 years.

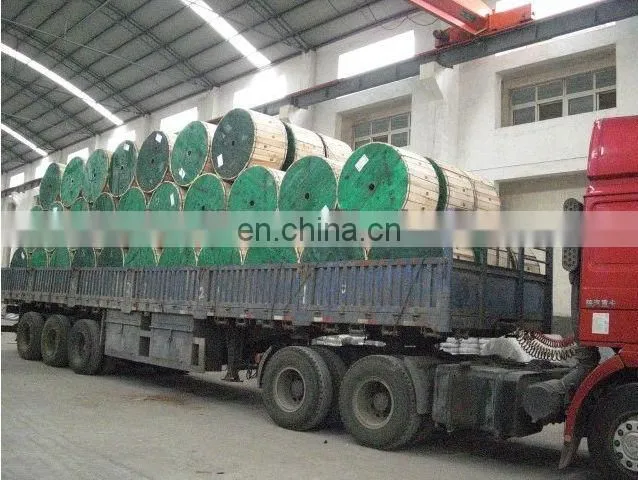

Packing of  CABLE SIP 1, SIP:
