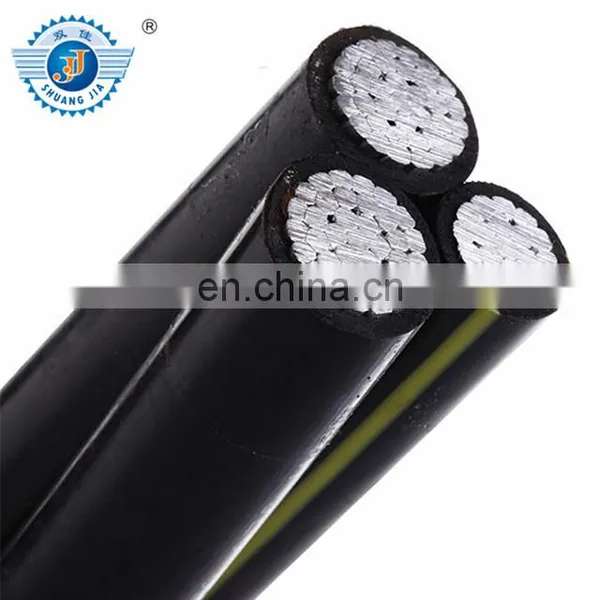

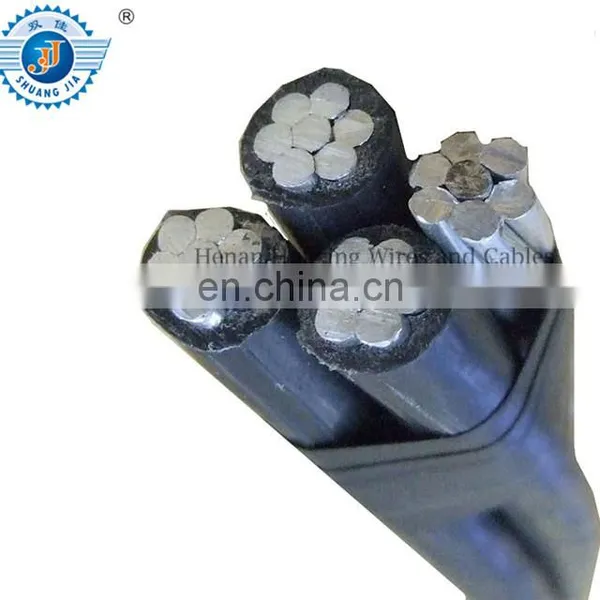

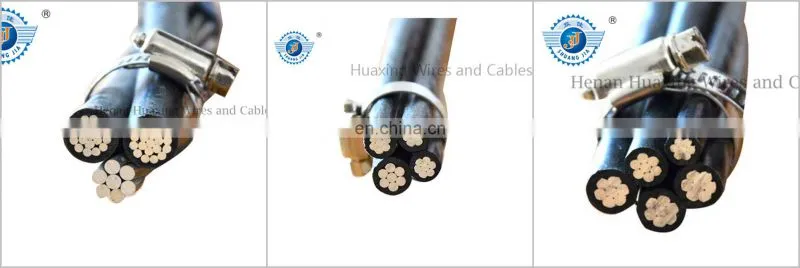

Duplex Triplex ABC Cable Overhead Aerial Bundled Cable Aluminum Conductor XIPE Insulated
- 35000 Meter / Meters per Month
- Qingdao
- T/T Credit Card
-
ABC Cable with AAAC Messenger Core 1*35+35 1*50+50
-
3 x150mm2 + 1 x 70mm2 XLPE Insulated Aerial Bundled Aluminum ABC Cable
-
ASTM Standard Aerial Bundled ABC DUPLEX TRIPLEX QUADRUPLEX CABLE
-
Aerial Bundled ABC CABLE SINGLE /TWO / THREE / FOUR PHASE
-
AL-steel/XLPE ABC light type Cable electrical cable wire JKLV/JKYJ 33kv overhead ABC cable
-
0.6/1kv Aluminum /copper conductor ABC overhead cable wih XLPE insulated Cable
Product Details
| Brand Name: | SHUANGJIA | Place of Origin: | Henan, China | Model Number: | JKLYJ |
| Type: | Low Voltage | Application: | Overhead | Insulation Material: | XLPE |
| Conductor Material: | Aluminum |
Product Description
Specifications
1.ABC overhead cable with xlpe insulatedat voltage at 0.6/1kv,15KV,35KV
2.ABC overhead cable bear 90 degree, high strength.
ABC overhead cable wih XLPE insulated Cable Features
xlpe insulated twisted overhead cable used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crossliked polyethylene(XLPE) insulated conductors.
It meets or exceeds the following specifications:
l ASTM B-230 Aluminum Wire ,1350-H19 for Electrical Purposes.
l ASTM B-231 Aluminum Conductors, Concentric-Lay-Stranded.
l ASTM B-232 Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
l ASTM B-399 Concentric-Lay-Stranded 6201-T81 Conductors
l ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire..
Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

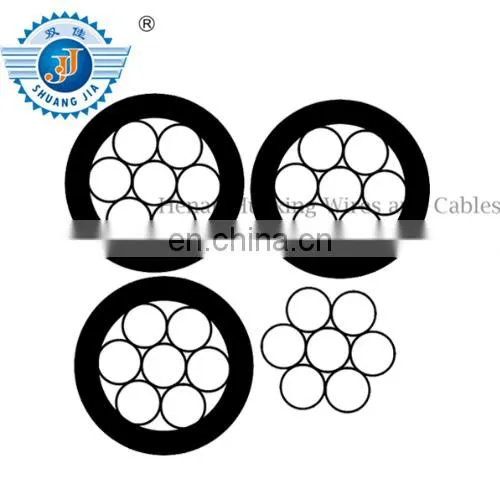

| SPEC mm2 | conductor structure | Approx. | ||||||
| Phase | Neutral(Bare ACSR) | insulation | insulation | Overall | Approx. | packing | ||
| (Compacted AL) | Aluminium | Steel | material | Thickness | Diameter | Weight | Meters Per | |
| (No./mm) | (No./mm) | (No./mm) | (mm) | (mm) | (kg/km) | Drum | ||
| 1x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE | 1.2 | 12.5 | 121.9 | 250-4000m |
| 1x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 14.9 | 182.2 | 250-4000m | |
| 1x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 17.5 | 254.7 | 250-3500m | |
| 1x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 20.1 | 333.9 | 250-3000m | |
| 1x70+1x70 | 19/2.15 | 12/2.15 | 17/2.15 | 1.4 | 23.6 | 382.2 | 250-3000m | |
| 1x95+1x95 | 19/2.54 | 12/5.24 | 17/5.24 | 1.6 | 27.6 | 528.2 | 250-3000m | |
| 2x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | (HDPE) | 1.2 | 14.2 | 187.6 | 250-4000m |
| 2x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 16.7 | 273.8 | 250-3500m | |
| 2x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 19.7 | 386.9 | 250-3500m | |
| 2x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 22.5 | 506 | 250-3000m | |
| 2x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 26.1 | 617.2 | 250-3000m | |
| 2x95+1x95 | 19/2.54 | 12/5.24 | 7/5.24 | 1.6 | 30.5 | 850.9 | 250-3000m | |
| 3x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | 1.2 | 16.3 | 253.3 | 250-3500m | |
| 3x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 19.1 | 371.9 | 250-3500m | |
| 3x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 22.5 | 519.1 | 250-3000m | |
| 3x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 25.7 | 678.1 | 250-3000m | |
| 3x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 29.7 | 1024.3 | 250-3000m | |
| 2x95+1x95 | 19/2.54 | 12/2.54 | 7/2.54 | 1.6 | 34.6 | 1413.7 | 250-3000m | |
Code word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight kg/km | Allowable Ampacities(A) | |||||
AAC | Rated Strength lbs. | AAC | Insul. Thick. mm | XLPE | PE | |||||
No. | Dia. mm | No. | Dia. mm | |||||||
Pekingese Collie Dachshund Spaniel Doberman Malemute | 1*6AWG+1*6AWG 1*6AWG+1*6AWG 1*4AWG+1*4AWG 1*4AWG+1*4AWG 1*2AWG+1*2AWG 1*1/0AWG+1*1/0AWG | 7 7 7 7 7 7 | 1.56 1.56 1.96 1.96 2.47 3.12 | 563 563 881 881 1350 1990 | 1 7 1 7 7 19 | 4.11 1.56 5.19 1.96 2.47 1.89 | 1.14 1.14 1.14 1.14 1.14 1.52 | 92 94 139 141 216 347 | 85 85 115 115 150 205 | 70 70 90 90 120 160 |
Code word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight kg/km | Allowable Ampacities(A) | |||||||
ACSR | RatedStrength lbs. | AAC | Insul. Thick. mm | XLPE | PE | |||||||
No. | Dia. mm | No. | Dia. mm | No. | Dia. mm | |||||||
Setter Shepherd Eskimo Terrier Chow Bull | 1*6AWG+1*6AWG 1*6AWG+1*6AWG 1*4AWG+1*4AWG 1*4AWG+1*4AWG 1*2AWG+1*2AWG 1*1/0AWG+1*1/0AWG | 1 1 1 1 1 1 | 1.68 1.68 2.12 2.12 2.67 3.37 | 6 6 6 6 6 6 | 1.68 1.68 2.12 2.12 2.67 3.37 | 1190 1190 1860 1860 2850 4380 | 1 7 1 7 7 19 | 4.11 1.56 5.19 1.96 2.47 1.89 | 1.14 1.14 1.14 1.14 1.14 1.52 | 111 113 171 173 266 427 | 85 85 115 115 150 205 | 70 70 90 90 120 160 |
We would like to introduce ourselves as an ISO9001/14001/18001 ,CCC ,UL certificated Manufacturer of different kinds of Cables ,our products have exported to more than 50 countries .

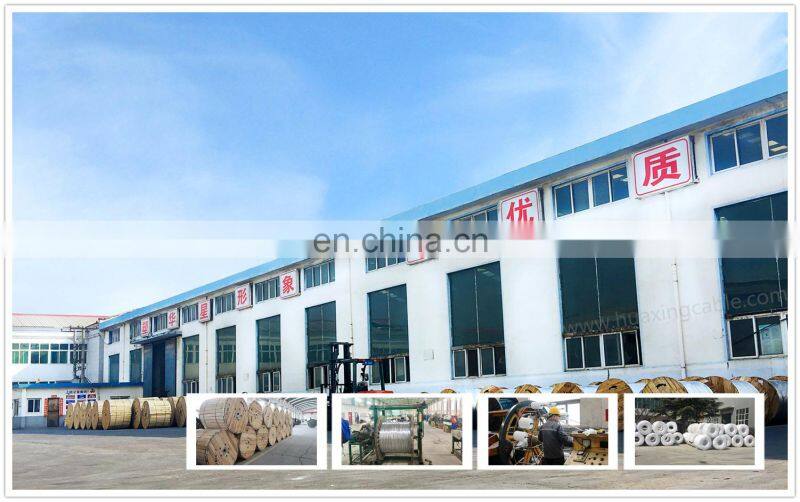

Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.
We are also the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
Our hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on;

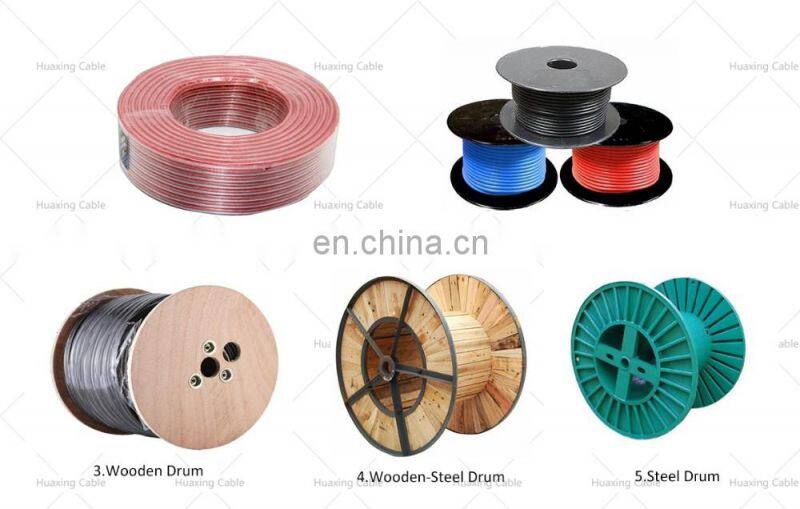

1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
