Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > AL-steel/XLPE ABC Light Type Cable Electrical Cable Wire JKLV/JKYJ 33kv Overhead ABC Cable
AL-steel/XLPE ABC Light Type Cable Electrical Cable Wire JKLV/JKYJ 33kv Overhead ABC Cable
US$ 0.5 - 4.8
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
SHUANGJIA
Place of Origin:
Henan, China
Model Number:
ABC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.6/1kv Aluminum /copper Conductor ABC Overhead Cable Wih XLPE Insulated CableUS$ 0.5 - 4.8MOQ: 1000 Meters -
0.6/1kv Aluminum Conductor PVC Insulated Cable Multi-core ABC CableUS$ 0.5 - 4.8MOQ: 1000 Meters
-
ABC Cable With AAAC Messenger CoreUS$ 0.5 - 4.8MOQ: 1 Meter
-
Aerial Bundle CableUS$ 0.9 - 15MOQ: 1 Meter
-
Electric Transmission Aerial Bundled Cable Aerial Bundle CableUS$ 0.9 - 15MOQ: 1 Meter
Brand Name
SHUANGJIA
Place of Origin
Henan, China
Model Number
ABC
Type
Low Voltage
Application
Overhead
Insulation Material
XLPE
Conductor Material
Aluminum
Specifications

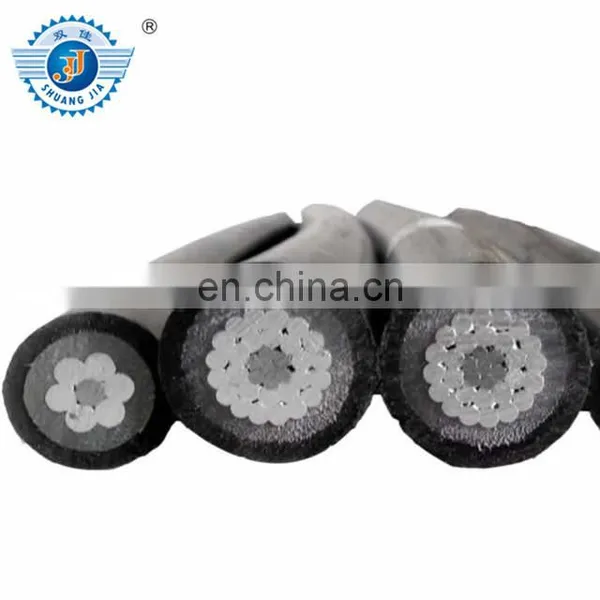

The medium voltage ABC Cable is a kind of climate bearable XLPE and HDPE insulated aerial cable of copper core,aluminum core or aluminum alloy core, suitable for overhead power line of AC rated voltage Uo/U 10KV and below.
STANDARD:IEC60502, NF C33-209, GB 12527-90 ASTM

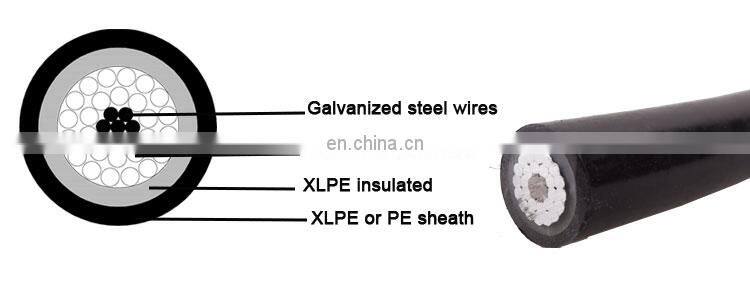

CONSTRUCTION

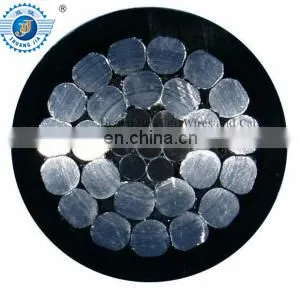

Conductor:Aluminium or Aluminium alloy or Copper;
Bare Conductor may be made of AAC,ACSR,AAAC etc.
Insulation:PVC or XLPE or PE
Inner sheath:PVC or PE

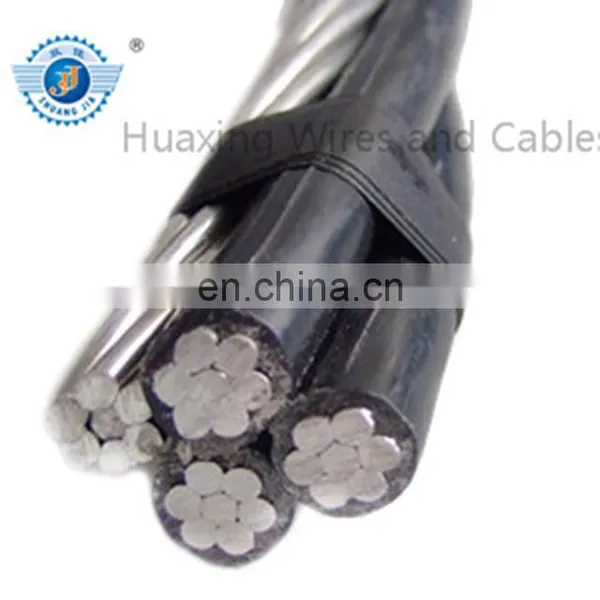

Cores:Single,Duplex.Triplex,Quadruple
ode Number | Area | Number of wires | Diameter of wire | Diameter of conductor | Linear mass | Rated strenght | D.C. resistance |
|---|---|---|---|---|---|---|---|
| mm2 | mm | mm | Kg/km | kN | Ω/km | ||
| 16 | 18.4 | 7 | 1.83 | 5.49 | 50.4 | 5.43 | 1.7896 |
| 25 | 28.8 | 7 | 2.29 | 6.87 | 78.7 | 8.49 | 1.1453 |
| 40 | 46.0 | 7 | 2.89 | 8.67 | 125.9 | 13.58 | 0.7158 |
| 63 | 72.5 | 7 | 3.36 | 10.80 | 198.3 | 21.39 | 0.4545 |
| 100 | 115.0 | 19 | 2.78 | 13.90 | 316.3 | 33.95 | 0.2877 |
| 125 | 144.0 | 19 | 3.10 | 15.50 | 395.4 | 42.44 | 0.2302 |
| 160 | 184.0 | 19 | 3.51 | 17.55 | 506.1 | 54.32 | 0.1798 |
| 200 | 230.0 | 19 | 3.93 | 19.65 | 632.7 | 67.91 | 0.1439 |
| 250 | 288.0 | 19 | 4.39 | 21.95 | 790.8 | 84.68 | 0.1151 |
| 315 | 363.0 | 37 | 3.53 | 24.71 | 998.9 | 106.95 | 0.0916 |
| 400 | 460.0 | 37 | 3.98 | 27.86 | 1268.4 | 135.81 | 0.0721 |
| 450 | 518.0 | 37 | 4.22 | 29.54 | 1426.9 | 152.79 | 0.0641 |
| 500 | 575.0 | 37 | 4.45 | 31.15 | 1585.5 | 169. 76 | 0.0577 |
| 560 | 645.0 | 61 | 3.67 | 33.03 | 1778.4 | 190.14 | 0.0516 |
| 630 | 725.0 | 61 | 3.89 | 35.01 | 2000.7 | 213.90 | 0.0458 |
Company Information

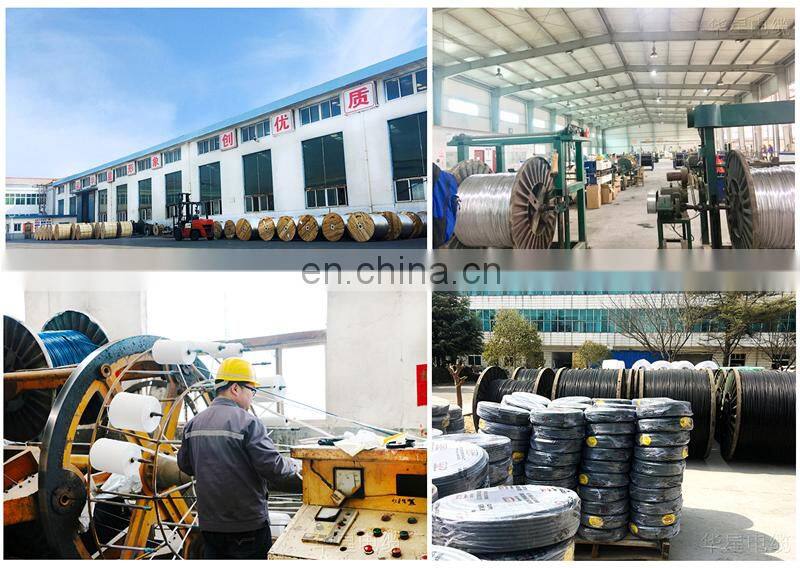

Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees ,our products have exported to more than 50 countries.
We are the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .

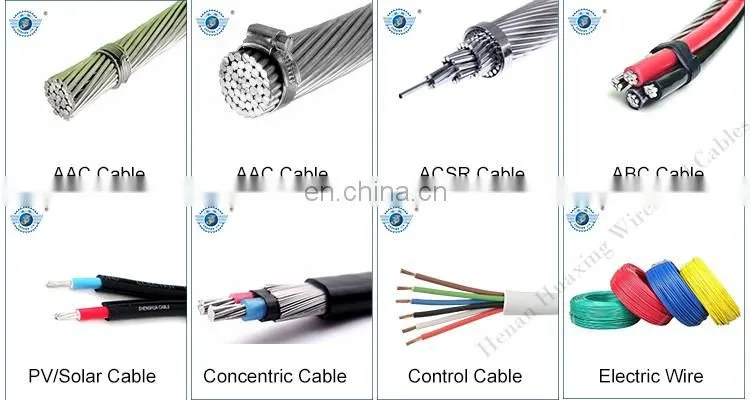

Main Products
Certifications
Packaging & Shipping
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
