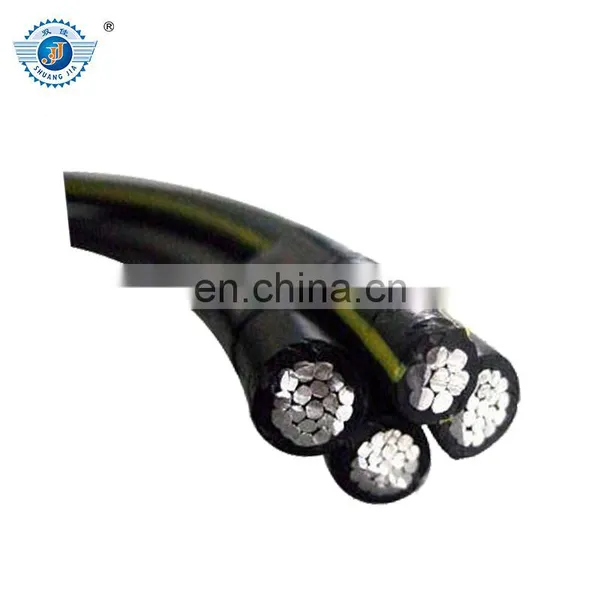

PVC abc cable (aerial bundle cable)
1. Standards: According to IEC, also can do by standards of ASTM, BS, GB, DIN and AS/NZS or other standards.
2. Rated Voltage: 0.6 / 1 kV; 10 kVV
3. Construction:
Conductor:aluminium or aluminium alloy or copper; (Bare Conductor may be made of AAC, ACSR, AAAC etc.)
Insulation: PVC or XLPE or PE
Inner sheath: PVC or PE
Cores: single; duplex; triplex; quadruple
Sheath: PVC
4. Features:
Rated voltage at 0.6 / 1 kV:
a. Max operating temperature: XLPE insulation 90°C, PVC or PE insulation 70°C.
b. Installing temperature of cable should not be below -20°C.
c. Max short-circuit temperature not more than5
Sec: XLPE insulation 250°C; high-density PE insulation 150°C; PVC insulation 130°C.
d. Permissible bending radius of cable: When outside diameter (O.D.) is less than 25mm, it should be not less than 4O.D.; when O.D. is 25mm or more, it should be not less than 6O.D.
Rated voltage at 10 kV:
a. Max operating temperature: XLPE insulation 90°C; high-density PE insulation 75°C; PVC insulation 70°C.
b.Installing temperature of cable should not be below -20°C.
c.Max short-circuit temperature: not more than5°C
Sec: XLPE insulation 250°C; high-density PE insulation 150°C; PVC insulation 130°C.
d.Permissible bending radius of cable: Should be not less than 20(d+D)±5mm. (D is outside diameter of cable; d is diameter of conductor.)
