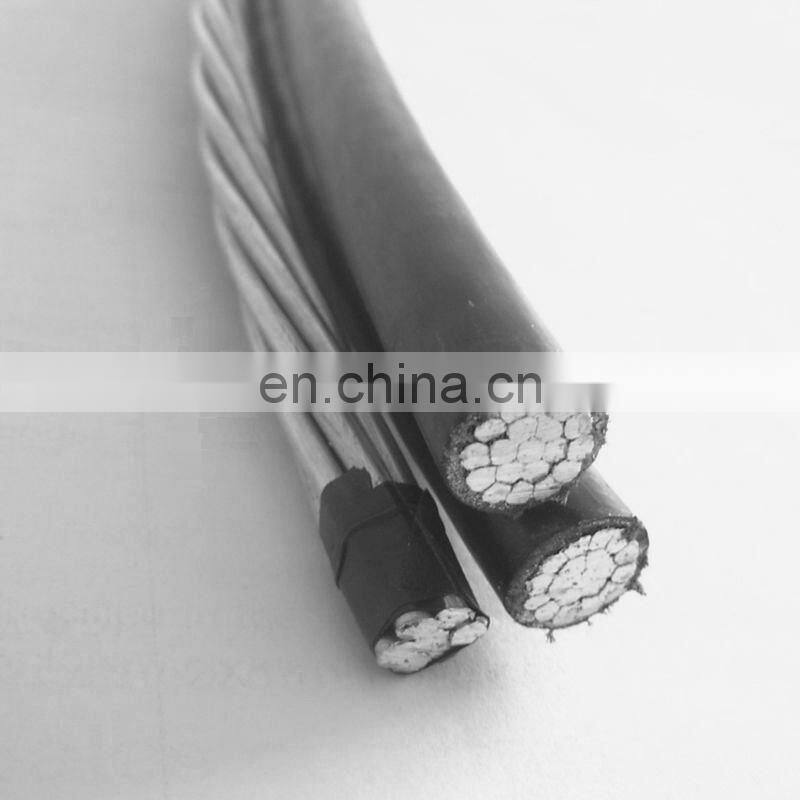

CAAI 2X16+25sqmm ABC Cable Service Drop Cable With Volt 1000V

CAAI 2X16+25sqmm ABC Cable Service Drop Cable With Volt 1000V photo-1
US$ 0.2 - 2 MOQ: 500 Meters
Key Specifications
Get Latest Price
Brand Name:
Shuang jia
Place of Origin:
Henan, China
Model Number:
CAAI 2X25+25
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Shuang jia
Place of Origin Henan, China
Model Number CAAI 2X25+25
Type Low Voltage
Application Overhead
Insulation Material XLPE
Conductor Material Aluminum

Overhead XLPE Insulated Service Drop Cable ABC Cable 0.6/1KV  CAAI 2X25+1X16+25mm2



ABC Cable, can be munufactrued as standard IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.

1. Application of Overhead Insulated Cable :



Using this cable,it is unneccessary to prune the branches, so thant reduce the across and parallel distance of the cable. It is convenient to install and high mobility . It can reduce accidents of electric shouck and power failure carsing by circuit troubles. To guarantee supllying of electic power for industry production and residents` safety. It is especially suitable for an old city , which has densely buildings ,densely population and narrow streets.



2. Characteristics of Overhead Insulated Cable

1)Rated voltage U0/U :0.6/1 KV

2)Max. permissible long-time working temperature : PVC or PE insulated conductor is not more than 70 ,and that of XLPE insulation is not more than 90 .

3)Installing temperature should not be below -20 .

4)Admissible bending radius to cable :When overall-diameter (D) is less than 25 mm , it should be not less than 4D . When overall diamter(D) is 25mm or more , it should not be less than 6D .



Our overhead insulated cable have formed a system, such as single core, two-core ,three core and four core. There are conductors of aluminium , aluminium alloy or aluminium steel-reinforced . We can manufacture the overhead insulated cable not only in accordance with China`s standard GB12527-90 but also the other standards and special requiement by the custormers.

CAAI 2X16+25sqmm ABC Cable Service Drop cable with Volt 1000VCAAI 2X16+25sqmm ABC Cable Service Drop cable with Volt 1000VCAAI 2X16+25sqmm ABC Cable Service Drop cable with Volt 1000VCAAI 2X16+25sqmm ABC Cable Service Drop cable with Volt 1000VCAAI 2X16+25sqmm ABC Cable Service Drop cable with Volt 1000V

CAAI 2X16+25sqmm ABC Cable Service Drop cable with Volt 1000VCAAI 2X16+25sqmm ABC Cable Service Drop cable with Volt 1000VCAAI 2X16+25sqmm ABC Cable Service Drop cable with Volt 1000V
