High quality 0.6/1KV XLPE Insulated Aluminum Twisted Cable 35mm2
US$ 1.5 - 1.5
/ Kilometer
1000 Kilometers(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | SHUANG JIA | Place of Origin | Henan, China | |
| Model Number | ABC Cable JKLYJ | Type | Low Voltage | |
| Application | Underground | Insulation Material | XLPE | |
| Conductor Material | Aluminum |
Product Description
Twisted Cable abc overhead power cable is with following features:
abc overhead power cable used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for crossliked polyethylene(XLPE) insulated conductors.
1.Rated Voltage:0.6/1KV
2.Insulation:PVC ,PE or XLPE
3.Type:with messenger or without messenger core
4.Standard:IEC60502...
| ABC Cable With AAAC Messenger Core | |||||||

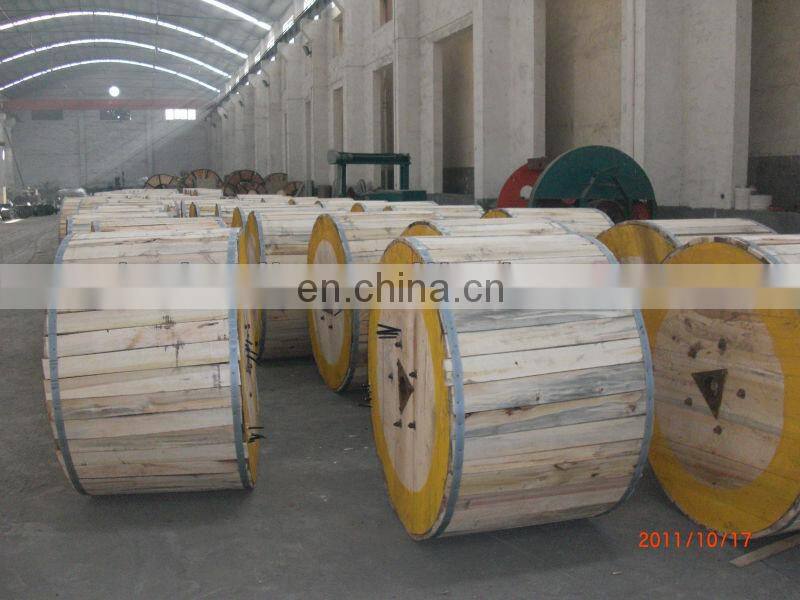

| SPEC. mm2 | Conductor Structure | Insulation Material | Insulation Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Weight (kg/km) | Packing Meters per Drum | |
| Phase (Compacted AL) | Neutral(Alloy) | ||||||
| (No./mm) | Aluminum (No./mm) | ||||||
| 1x16+1x16 | 7/1.72 | 7x1.72 | XLPE (HDPE) | 1.2 | 12.5 | 110.1 | 250-4000m |
| 1x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | 250-4000m | |
| 1x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229.0 | 250-3500m | |
| 1x50+1x50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | 250-3000m | |
| 1x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | 250-3000m | |
| 1x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | 250-3000m | |
| 2x16+1x16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | 250-4000m | |
| 2x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | 250-3500m | |
| 2x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | 250-3500m | |
| 2x50+1x50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | 250-3000m | |
| 2x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | 250-3000m | |
| 2x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | 250-3000m | |
| 3x16+1x16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | 250-3500m | |
| 3x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | 250-3500m | |
| 3x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | 250-3000m | |
| 3x50+1x50 | 7/2.92 | 7/2.94 | 1.4 | 25.7 | 644.1 | 250-3000m | |
| 3x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | 250-3000m | |
| 3x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | 250-3000m | |
| ABC Cable Without Messenger Core | ||||||
| SPEC. mm2 | Conductor Structure (Compacted AL) (No./mm) | Insulation Material | Insulation Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Weight (kg/km) | Packing Meters per Drum |
| 2x16 | 7/1.72 | XLPE (HDPE) | 1.2 | 14.6 | 131.4 | 250-4000m |
| 2x25 | 7/2.15 | 1.2 | 16.8 | 189.0 | 250-4000m | |
| 2x35 | 7/2.54 | 1.4 | 19.8 | 264.5 | 250-3500m | |
| 2x50 | 7/2.92 | 1.4 | 22.6 | 344.1 | 250-3000m | |
| 2x70 | 19/2.15 | 1.4 | 25.6 | 470.0 | 250-3000m | |
| 2x95 | 19/2.54 | 1.6 | 29.8 | 645.5 | 250-3000m | |
| 3x16 | 7/1.72 | 1.2 | 15.7 | 197.1 | 250-4000m | |
| 3x25 | 7/2.15 | 1.2 | 18.1 | 283.5 | 250-3500m | |
| 3x35 | 7/2.54 | 1.4 | 21.3 | 396.7 | 250-3500m | |
| 3x50 | 7/2.92 | 1.4 | 24.3 | 516.2 | 250-3000m | |
| 3x70 | 19/2.15 | 1.4 | 27.6 | 705.1 | 250-3000m | |
| 3x95 | 19/2.54 | 1.6 | 32.1 | 968.2 | 250-3000m | |
| 4x16 | 7/1.72 | 1.2 | 17.6 | 262.9 | 250-3500m | |
| 4x25 | 7/2.15 | 1.2 | 20.3 | 378.0 | 250-3500m | |
| 4x35 | 7/2.54 | 1.4 | 23.9 | 528.9 | 250-3000m | |
| 4x50 | 7/2.92 | 1.4 | 27.3 | 688.3 | 250-3000m | |
| 4x70 | 19/2.15 | 1.4 | 30.9 | 940.1 | 250-3000m | |
| 4x95 | 19/2.54 | 1.6 | 36.0 | 1291.0 | 250-3000m | |
