Home > Products > Aerial bundle cable > steel aluminum XLPE insulated aerial cable

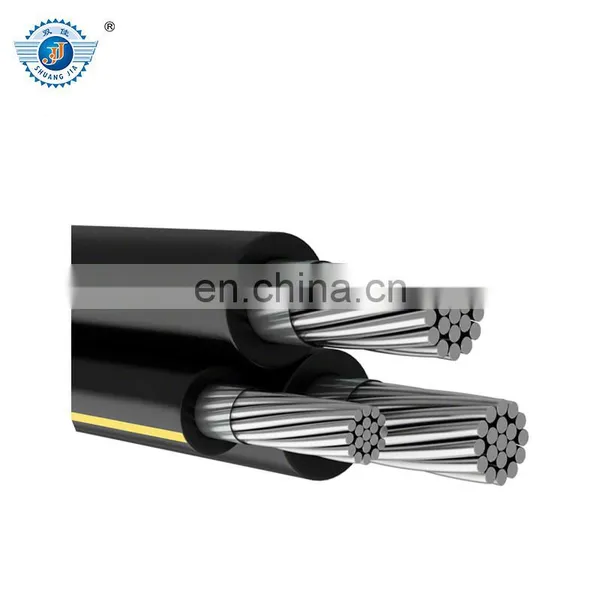

steel aluminum XLPE insulated aerial cable
- 0 per Month
- Qingdao
- T/T Credit Card
Product Details
Brand Name: | Shuangjia | Place of Origin: | Henan, China | Model Number: | low voltage |
Jacket: | PVC | Conductor Material: | Aluminum | Insulation Material: | XLPE |
Product Description
steel aluminum XLPE insulated aerial cable exploitation condition:
1).The long time working temperature of cable should not be higher than 90.
2).While installation ambient temperature should not be lower than -20.
3).When core is in short circuit(max 5s) the temperature should not exceed 250.
Model |
Section |
Name |
Main usage |
JKLGYJ |
10/2500/65 |
steel core aluminum XLPE PE insulation aerial cable |
It is applicable to fix and down 10KV overhead power line. To extend cables, it shall be taken into consideration to keep a certain distance between cable and tree. And it permitted to have frequent contacts between cable and tree while the cable is in operation. |
JKYJ |
25240 25120 |
Copper XLPE PE insulation aerial cable |
Soft coppercore is used to lead wire out for transform when overhead, fix and lay down the cable. |
JKTRYJ |
25240 25120 |
Flexible copper XLPE PE insulation aerial cable |
To extend cables, it shall be taken into consideration to keep a certain distance between cable and tree. And it permitted to have frequent contacts between cable and tree while the cable is in operation. |
ABC |
10120 |
Aerial bundle cable |
The product is a new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting |
Delivery requirement:
1).The length of cables should be in accordance with mutual agreements.
2).Cables delivery should be coiled orderly. Cable tip should be closely, wrapped and sealed. Exposed cable tip for AC testing should be long enough to meet the needs. The coiled cable must be in the same model and the same specification.
3).If there is no agreement; execute the stipulation of GB14040-93standard.
If you are interested in our products, please provide us more specification, for example, how many cores, nominal section area, conductor material (aluminum or copper) and usage to me. Then, I will send our best quotation to you.
