China Circuit Breaker Vibration Analyzer Miniature Circuit Breaker Analyzer

1.HS code is 9030820000.
2.Wooden or carton box with foam inside.
3.No fumigation,not influence the delivery.
4.Standard of CE ISO IEC.
5.Customer OEM packing is also available">circuit-breaker analyzer Packaging:
1.HS code is 9030820000.
2.Wooden or carton box with foam inside.
3.No fumigation,not influence the delivery.
4.Standard of CE ISO IEC.
5.Customer OEM packing is also available

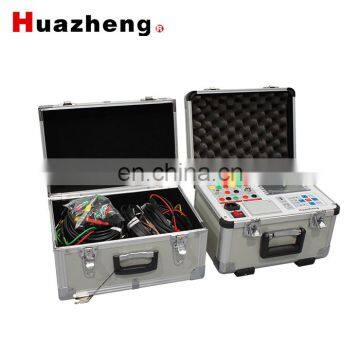

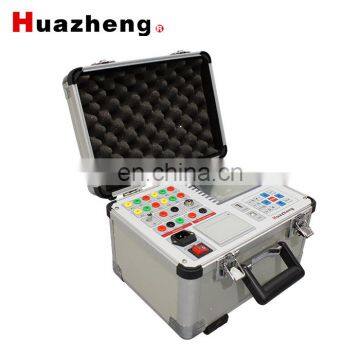

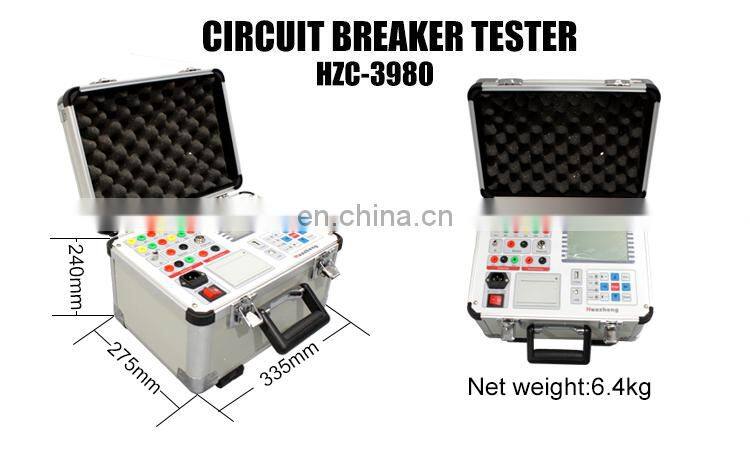

China Circuit breaker vibration analyzer/miniature circuit-breaker analyzer

Performance Characteristics

1. Performance

a. Time: 12 inherent in the fracture points, closing time, with the same period, and white the same period.
b. Reclosing: each fracture together - sub, sub - together, sub - Hopewell - sub-process time: one point, a time is the time of the two-in-gold short time, current time value.

c. Speed: just now, just closing speed, maximum speed, time - stroke characteristic curve.
d. Stroke: total trip, open distance, over-travel, the overshoot travel, rebound amplitude.
e. Current: points, closing coil points, closing the current value, the current waveform diagram.
f. Operating Voltage: DC30 ~ 250V/20A digital machine adjustable breaker operation power supply, to automatically complete low voltage operation test of the breaker, measuring the value of the operating voltage of the circuit breaker.

2. Characteristics

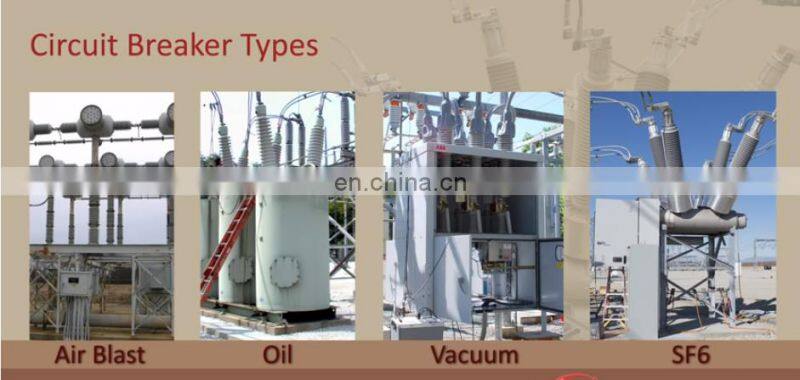

a. All models suitable for domestic and foreign production of SF6 switchgear, GIS combination of electrical, vacuum switch, oil switch mechanical properties test

b. Super anti-jamming capability, 500KV substation the bypass bus charged case can easily test to accurately measure.

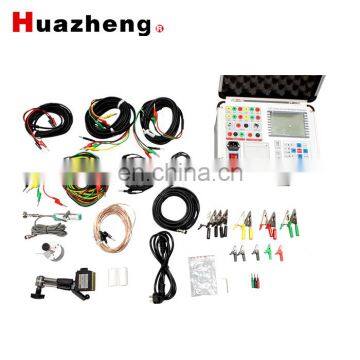

c. Universal speed sensor, straight line linear sensor, rotary sensor, extremely easy to install and simple.
d. Switching operation once obtained the switch mechanical properties testing of all data and the corresponding waveform Spectrum.
e. The host field test data, the machine can be stored in the real-time clock, easy to the archive save the test date, time.
f. Host big screen, wide temperature, direct perspective, backlight LCD Chinese display all data and maps, LCD contrast electronic adjustment, power and memory.
g. Chinese menu operation, easy to use. Instrument built-in printer, fast print all data and maps at any time.
h. The instrument with data analysis and management software, with PC online operation, the test results can be output to the various types of dot matrix, laser or ink-jet printer to print the test report, the field trials computerized.

Company Profile

Huazheng Electric Manufacturing (baoding) Co., Ltd.

Huazheng Electric Manufacturing (baoding) Co., Ltd. is established in year of 2008, located at Baoding city, Hebei province, China. It is a professional company specializing in the development and production of electric power testing equipment. Main products are transformer oil test series, high voltage test series, safety product test series, cable fault location system, relay & microcomputer protection test, etc. All of our products comply with international quality standard and obtained CE and ISO 9001 certificate. Our products are exported to over 100 countries and regions , and cooperate with some well-known enterprise in the world such as Ausgrid and Orient Oils, etc. We are dedicated to making HUAZHENG brand an industry benchmark in order to realize the dream of the HUAZHENG brand and serve the global clients. You are warmly welcome to visit Huazheng company!
