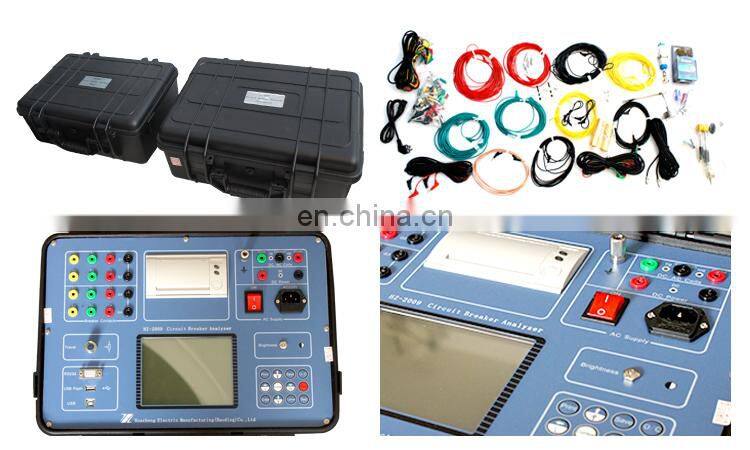

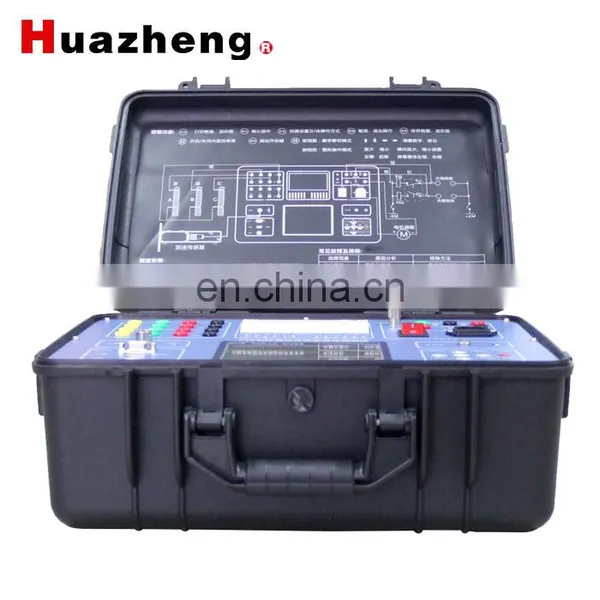

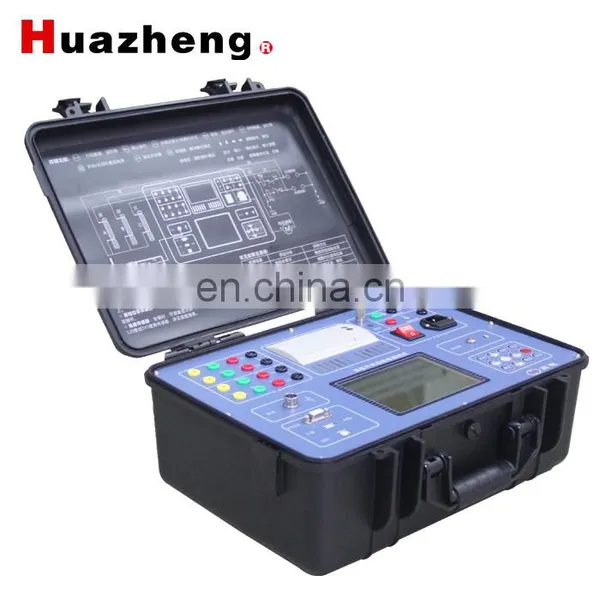

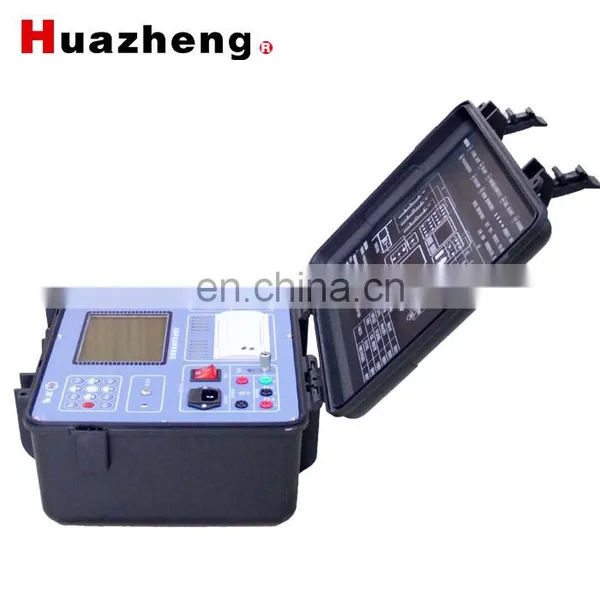

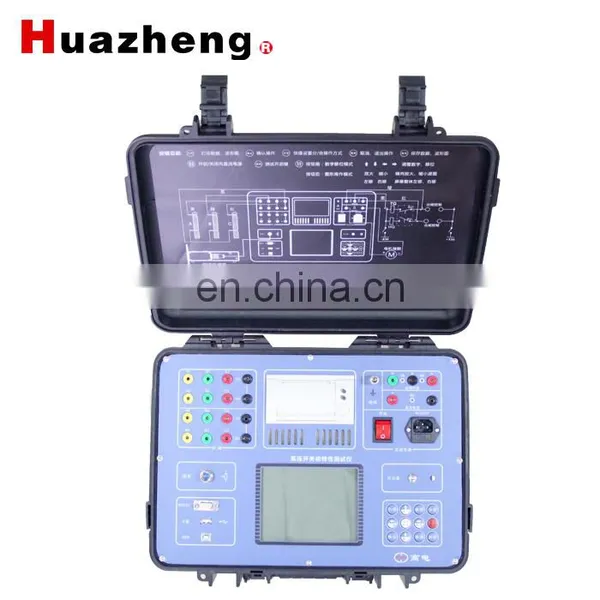

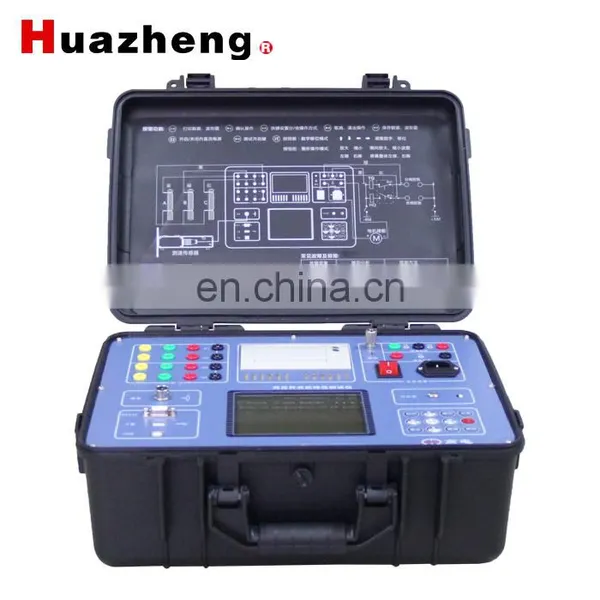

circuit analyzer breaker tester automotive circuit breaker test kit
circuit analyzer breaker tester automotive circuit breaker test kit
Ability : the instrument can test the vacuum circuit breaker ,sf6, oil circuit breaker, gis and etc. the test parameters include, close or open time ,delta time ,bounce time ,bounce cycles, multi-operation, stroke , gap ,over-travel ,overshoot ,rebound and the speed, with the ability of test results and graph display.
Immunity : withstand the 550KV electrostatic environment .
Transducer : with one analog transducer test ability .
Standard : with the standard of DL/T846.3—2004 (P.R.C.).
Power : with internal dc power ,the voltage ranges from 15v to 250v.
Trigger : with four triggers to start the recording ,channels state, voltage, current and transducer.
HMI : via keypad and a large transflective LCD display (320 x 240 pixels).
Speed :supply series of speed definition with editable and un-editable selection.
Recording: with twelve channels ,coil current and transducer .
Print :with internal installed 58mm wide thermal printer.
Communication:with RS232 and USB communication interface.
Memory: with a SD card of 2GB,the maximum storage ability is 100 test results.
USB FLASH: USB and RS232 interface for data communication with the PC.

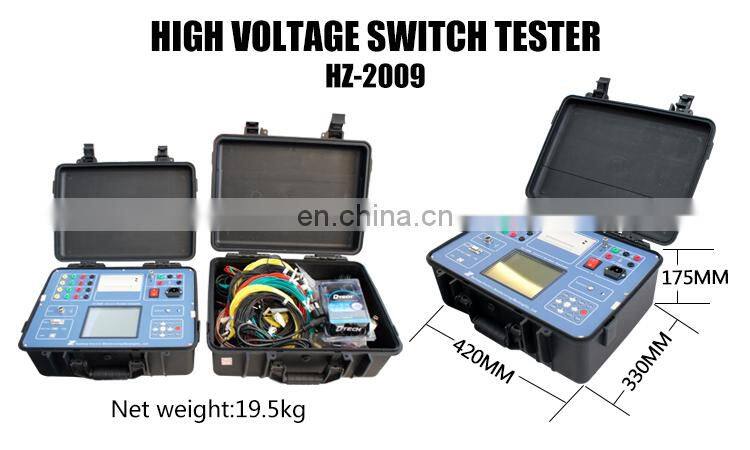

HZ-2009 Switch dynamic characteristic circuit breaker test kit Technical index
Test channel: time fracture: metal contact, 12 way 25V, current limiting 50mA
Displacement sensor: 1 way
Time tested: range: 0 ~ 9.9s
Error: + 0.l% reading + 2 words
Resolution: 0.01ms
Travel test: range: 0 ~ 1000mm
Accuracy: + 1% reading + 1 words
Resolution: 0.1mm
Speed characteristic: range: 0.01 ~ 20.00m/s
Accuracy: + 1% reading + 1 words
Resolution: 0.01m/s
Graphical display: the value of 0.01ms per path
DC power supply: range of adjustment: 15 ~ 260V
Maximum instantaneous current: 20A
Accuracy: + 1% reading + 1 words
The load rate is less than 1%.
Synchronous triggering: voltage: 15 ~ 260V
Current: 0.1-20A
Sensor: displacement change
Fracture: signal jump

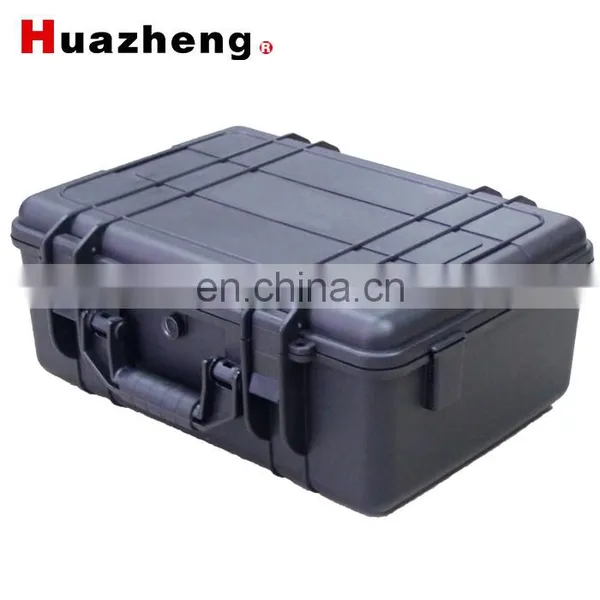

Structure type: top open portable
Shape size: 415mm * 320mm * 168mm
Host weight: 6kg
Use environment: environmental temperature: -10 ~ 50 DEG C
Relative humidity: less than 80% RH
Working power supply: voltage: AC 220V + 10%
Frequency: 50Hz + 10%
Safety performance: insulation resistance: > 2M
Leakage current: < 3.5mA
Dielectric strength: AC, 1500V, 50Hz, 1min (power line to chassis)
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
