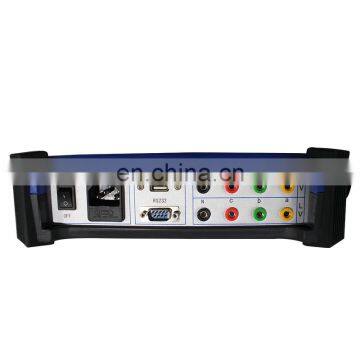

Automatic Digital Ratio Tester Ttr Meter 3 Phase Transformer Turns Ratio Tester

Turns Ratio Tester  Main Technical Specifications

1. Ratio measurement range: 0.8-20000

2. Ratio measurement accuracy: 0.2% (0.8-2000), 0.5% (2000-20000)

3. Input voltage: HV side AC 24V, LV side AC 4V

4. Working power: AC220V ± 15%

5. Operating temperature: -10 ℃ -40 ℃

6. Environmental humidity: 10% -85%

7. Volume: 270 × 190 × 70mm

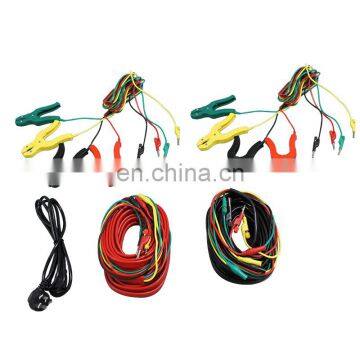

8. Weight: 2kg (not including test wires)

Turns Ratio Tester  Main Functions and Characters

1. The tester makes automatic measurement with no need to set any parameters and automatically completes the three-phase ratio and connection group measurements with easy operation.

2. The tester measures three-phase and single-phase transformer ratios automatically, and calculates the ratio error.

3. The tester has inner three-phase signal source, which can make measurement of Y / y, Y / d, D / y, D / d, ZN / y, ZN / d, rectifier transformer, traction transformer and all kinds of ratios of transformer connection groups.

4. The tester can measure transformer connection group label and polarity to clearly display the first and second winding connection vector.

5. The tester can track the transformer on-load tap-changer

position automatically, and indicate the current tap point automatically.

6. The tester can display a transformer’s first and secondary voltage Oscillograms and phase relationship. It can measure transformer’s first and second harmonic voltages, to facilitate the analysis of transformer failure.

7. The tester has perfect and reliable automatic protection, to ensure the intactness of the tester under abnormal conditions.

8. The tester is has small size and light weight. It makes accurate measurement at fast speed (about 3 seconds to complete the test).

9. The tester is available to store and print all the test results. It has Built-in 128M memory (extendable to 4G memory card), available to export the database by USB, or upload to computer. The database supports excel spreadsheet opening, easy for edit or archive.

10. The tester has 5-inch true color touch screen operation, emwinGUI interface and Chinese input, which is easy and convenient. It also has no power-down calendar and clock function. The test time can be stored at any time.

11. The tester support on-site record print by Bluetooth or serial printer.
