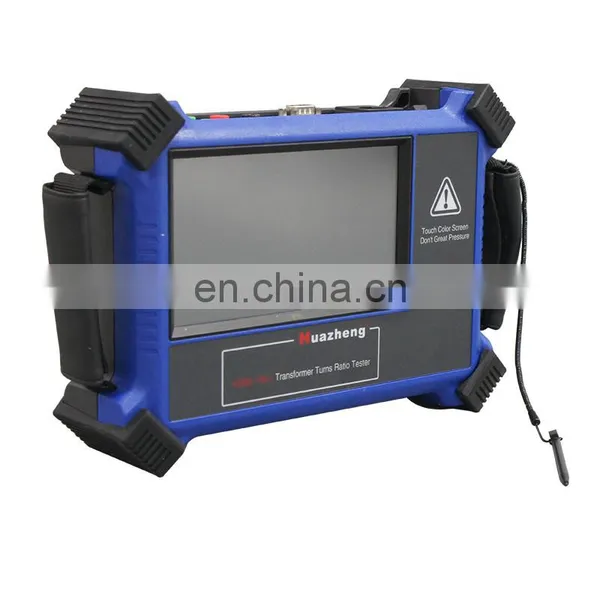

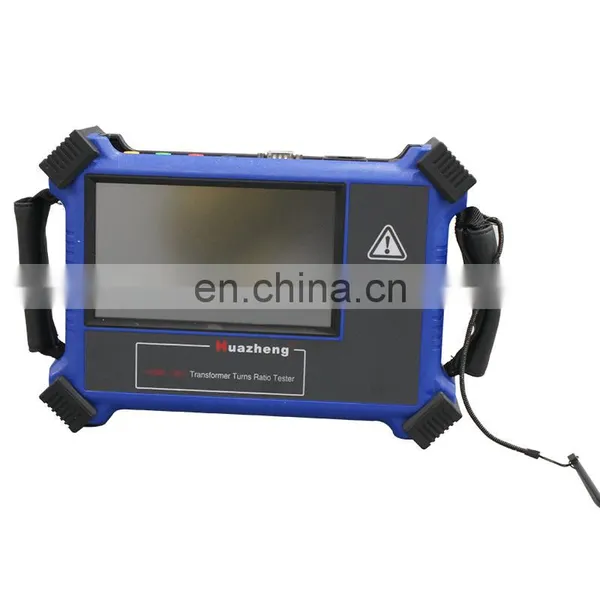

Transformer turn ratio tester testing equipment single phase ttr tester
Main Technical Specifications
1. Ratio measurement range: 0.8-20000
2. Ratio measurement accuracy: 0.2% (0.8-2000), 0.5% (2000-20000)
3. Input voltage: HV side AC 24V, LV side AC 4V
4. Working power: AC220V ± 15%
5. Operating temperature: -10 ℃ -40 ℃
6. Environmental humidity: 10% -85%
7. Volume: 270 × 190 × 70mm

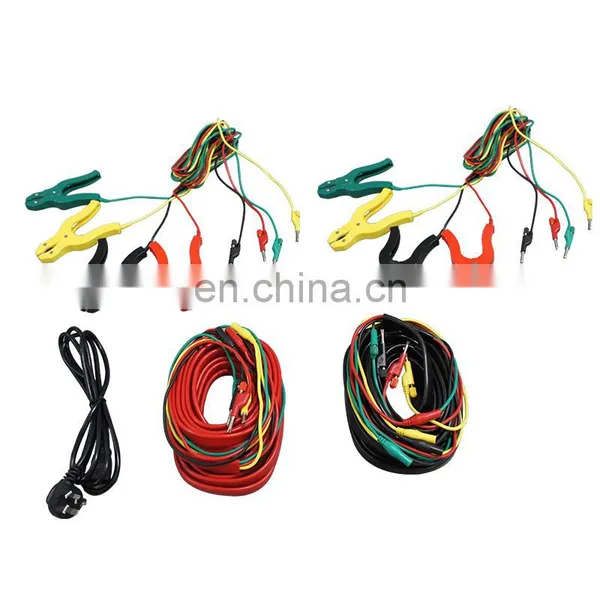

8. Weight: 2kg (not including test wires)
Main Functions and Characters
1. The tester makes automatic measurement with no need to set any parameters and automatically completes the three-phase ratio and connection group measurements with easy operation. All you need to do is to press a button.
2. The tester measures three-phase and single-phase transformer ratios automatically, and calculates the ratio error.
3. The tester has inner three-phase signal source, which can make measurement of Y / y, Y / d, D / y, D / d, ZN / y, ZN / d, rectifier transformer, traction transformer and all kinds of ratios of transformer connection groups.
4. The tester can measure transformer connection group label and polarity to clearly display the first and second winding connection vector.
5. The tester can track the transformer on-load tap-changer
position automatically, and indicate the current tap point automatically.
6. The tester can display a transformer’s first and secondary voltage Oscillograms and phase relationship. It can measure transformer’s first and second harmonic voltages, to facilitate the analysis of transformer failure.
7. The tester has perfect and reliable automatic protection, to ensure the intactness of the tester under abnormal conditions.
8. The tester is has small size and light weight. It makes accurate measurement at fast speed (about 3 seconds to complete the test).
9. The tester is available to store and print all the test results. It has Built-in 128M memory (extendable to 4G memory card), available to export the database by USB, or upload to computer. The database supports excel spreadsheet opening, easy for edit or archive.
10. The tester has 5-inch true color touch screen operation, emwinGUI interface and Chinese input, which is easy and convenient. It also has no power-down calendar and clock function. The test time can be stored at any time.
11. The tester support on-site record print by Bluetooth or serial printer.
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
