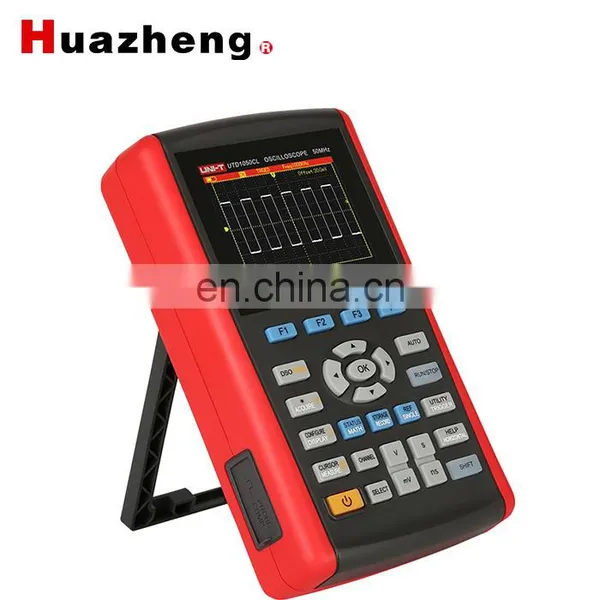

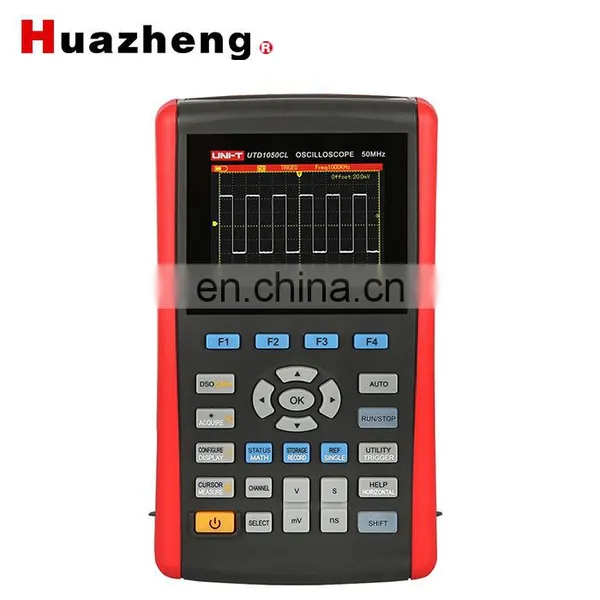

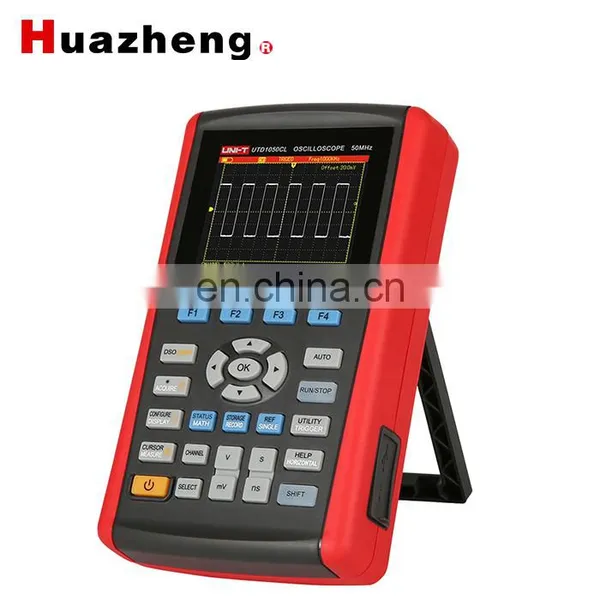

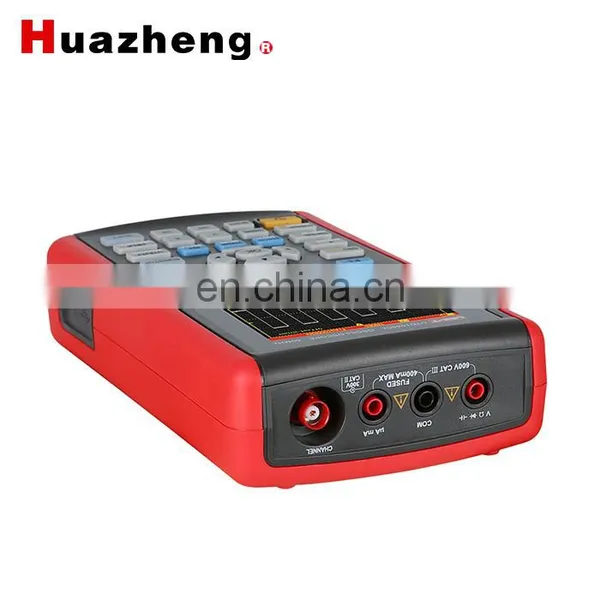

one channel 50MHZ Reasonable price Hand-held Digital Storage portable Oscilloscopes handheld oscilloscope
Features:
1. Fully auto scale; vertical scale and time-based automatically adjusted with the signal and without any manual interference;
2. Unique and powerful auto setup, quick and accurate to set up for signals with any DC component;
3. Wider voltage measuring range; coupled with 10×probe with attenuation up to 200V/div;
4. Isolated USB for much safer communication;
5. White and black display for your option, perfect for use outdoor with strong light;
6. Intelligent localor network software update
7. More than 8 hours of continuous battery operation
Technical specifications:
Specifications | UTD1050CL | |
Channels | 1 | |
Bandwidth | 50MHz | |
Sample Rate | 200MS/s | |
Rise Time | ≤7ns | |
Memory Depth | 12kpts | |
Vertical Sensitivity | 5mV/div~20V/div | |
Timebase Range | 5ns/div~50s/div | |
Storage | Bitmap, Setup, Waveform | |
Trigger Modes | Edge, Pulse, Video, Slope | |
Interface | Mini USB | |
Multimeter Specifications | Range | Best Accuracy |
DC Voltage (V) | 400.0mV/ 4.000V/ 40.00V/ 400.0V | ±(1%+5) |
AC Voltage (V) | 400.0mV/ 4.000V/ 40.00V/ 400.0V | ±(1.2%+5) |
DC Current (A) | 400.0μA/ 4000μA | ±(1.2%+5) |
40.0mA/ 400mA | ±(1%+5) | |
10A | ±(1.5%+5) | |
AC Current (A) (45Hz~400Hz) | 400.0μA/ 4000μA | ±(2%+5) |
40.0mA/ 400mA | ±(1.5%+5) | |
10A | ±(2.5%+5) | |
Resistance (Ω) | 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ | ±(1.2%+5) |
40.00MΩ | ±(1.5%+5) | |
Capacitance (F) | 51.20nF/512.0nF/5.120μF/51.20μF/100μF | ±(3%+5) |
Display Count | 4000 | |
| General Characteristics | ||
Power | Lithium Battery: 7.4V 3600mAh; | |
LCD Size | 3.5 inches TFT LCD, QVGA (320×240) | |
Product Color | Red and grey | |
Product Net Weight | 0.9kg | |
Product Size (W×H×D) | 199mm × 118mm × 49mm | |
Standard Accessories | DC Adaptor, Test Lead, Probe×1 (1×,10× switchable), Current-to-Voltage Convertor, Power Cord, USB Cable, PC Software CD | |
Standard Individual Packing | Gift Box, Carrying Bag, English Manual | |
Standard Quantity Per Carton | 6pcs | |
Standard Carton Measurement (L×W×H) | 515mm x 295mm x 315mm | |
Standard Carton Gross Weight | 10.8kg | |

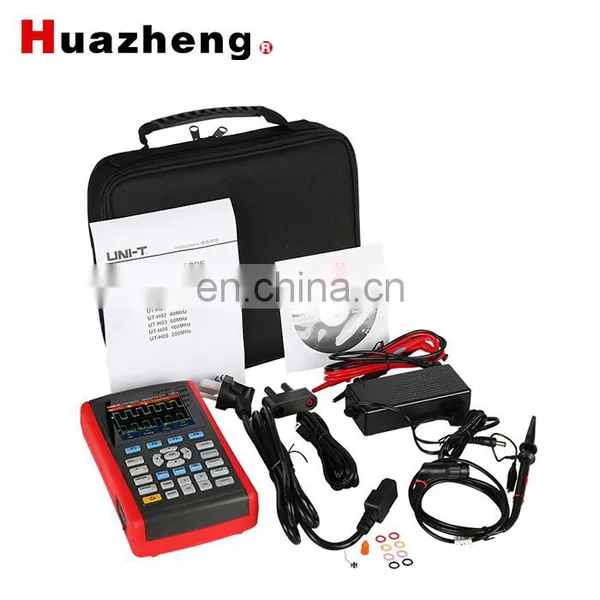

Accessories:
DC Adaptor, Test Lead, Probe×1 (1×,10× switchable), Current-to-Voltage Convertor, Power Cord, USB Cable, PC Software CD
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
