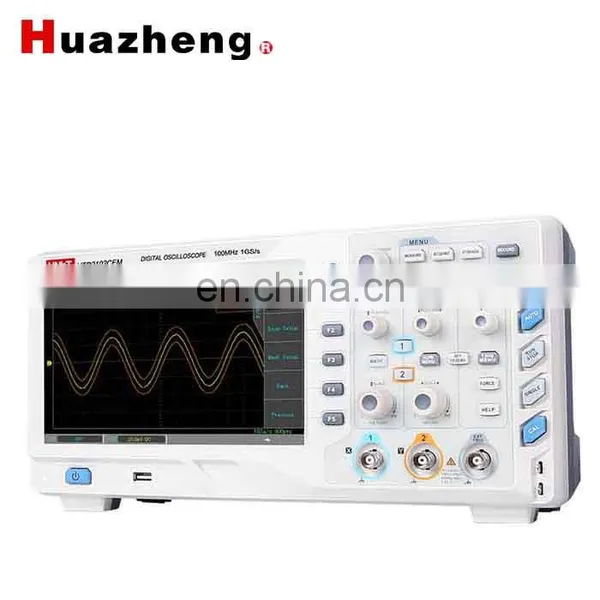

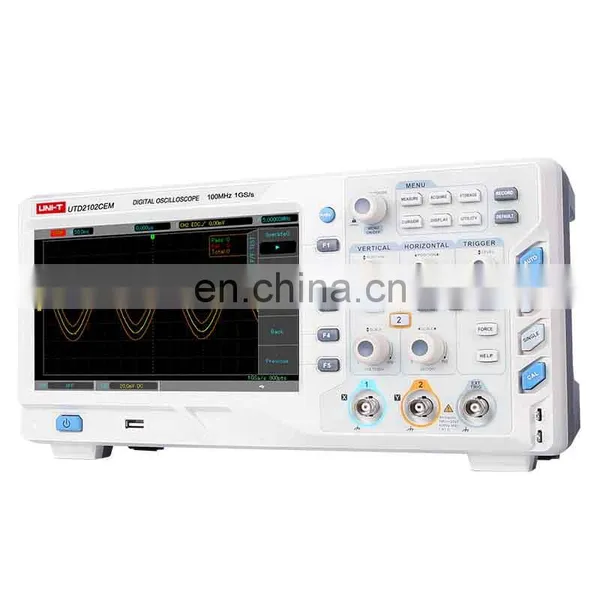

100MHz 2 Channels Digital Oscilloscope
- 1000 Set / Sets per Month
- T/T Credit Card
- Uni-t brand UT71C scope digital tester multimeter digital low-resistance ohmmeter
- Loop/Line Impedance Insulation Resistance Grounding Continuity Meter/Tester UT595 Electric comprehensive tester
- UNI-T UT595 RCD Phase Consequence Loop/Line Impedance Insulation Resistance Earthing Continuity Multifunction Meter Tester
- Multifunction micro-ohm meter UNI-T UT595 Ramp Slope RCD Phase Consequence Electric comprehensive tester
- UNI-T UT278A Earth Leakage Current Ground Resistance Clamp Meter
- UT805A Bench Type Design Digital Multimeter
Product Details
Brand Name: | UNIT | Place of Origin: | Hebei, China | Model Number: | UTD2102CEM |
Packaging Details
Tektronix Oscilloscope Inside packing: bubble board Outside packing: standard box Customer OEM packing also available
Product Description
100MHz 2 Channels Digital Oscilloscope
1. 2 channels, wide vertical range: 1mV/div~20V/div;
2. 7 inch widescreen LCD display;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveform setups and interface waveform and setup reproduction;

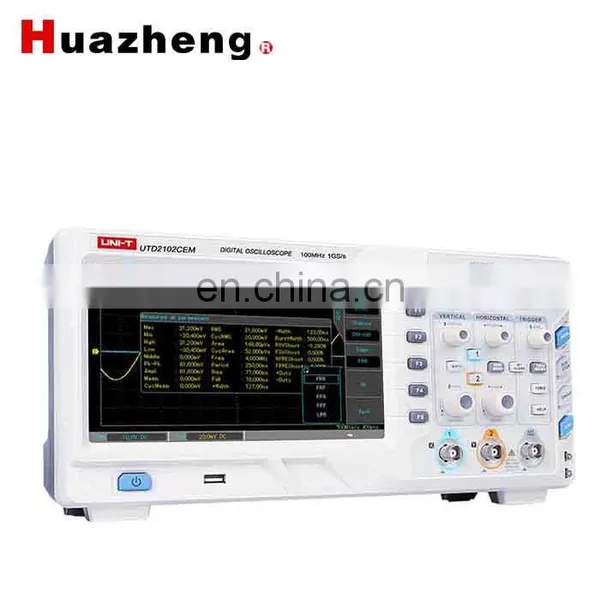

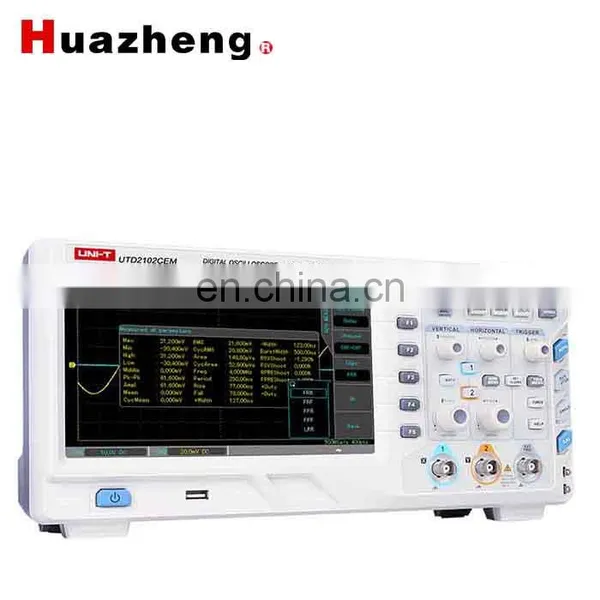

7. Automatic measurement of 32 waveform parameters;
8. Unique waveform record and replay function;
9. Multilingual menu available
Technical specifications:
Specifications | UTD2102CEX | ||
Channels | 2 | ||
Bandwidth | 100MHz | ||
Sample Rate | 1GS/s | ||
Rise Time | ≤3.5ns | ||
Memory Depth | 25kpts | ||
Waveform Acquisition Rate | ≥2000wfms/s | ||
Vertical Sensitivity (V/div) | 1mV/div~20V/div | ||
Timebase Range (s/div) | 2ns/div~50s/div | ||
Storage | Setup, Wave, Bitmap | ||
Trigger Modes | Edge, Pluse, Video, Slope, Alternate | ||
Interface | USB OTG | ||
General Characteristics | |||
Power | 100-240VAC, 45-440Hz | ||
Display | 7 inches 64k Color TFT LCD, 800×480 | ||
Product Color | White and grey | ||
Product Net Weight | 2.2kg | ||
Product Size (W×H×D) | 306mm ×147mm × 122mm | ||
Standard Accessories | Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD | ||
Standard Individual Packing | Gift Box, English Manual | ||
Standard Quantity Per Carton | 2pcs | ||
Standard Carton Measurement (L×W×H) | 450mm× 420mm × 280mm | ||
Standard Carton Gross Weight | 8.5kg | ||
Optional Accessories | |||
LA Module |
Accessories:
Probe×2 (1×, 10× switchable),
Power Cord,
USB Cable,
PC Software CD,
LA Module (UT-M09)*
