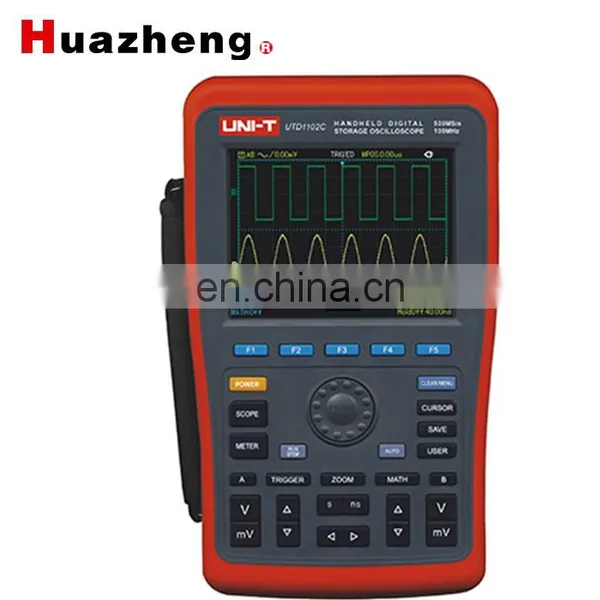

2 Channel 100MHZ Portable Digital Storage Handheld Oscilloscope

Specifications

UTD1102C

Channels

2

Bandwidth

100MHz

Sampling Rate

500MS/s

Rise Time

≤3.5ns

Memory Depth

7.5kpts

Vertical Sensitivity

5mV-50V/div

Time-based Range

5ns/div-50s/div

Storage

Setup, Waveform, Bitmap

Trigger Modes

Edge, Pulse, Video and Alternative

Interface

USB HOST

Multi-meter Specifications

Range

Best Accuracy

DC Voltage (V)

600mV/6V/60V/600V/1000V

±(1%+5)

AC Voltage (V)
(45Hz~400Hz)

600mV/6V/60V/600V/700V

±(1.2%+5), Frequency: <200Hz

±(1.5%+5), Frequency: ≥200Hz

DC Current (A)
(External Convertor)

6mA/60mA/600mA

±(1.2%+5)

6A

±(1.5%+5)

AC Current (A)
(45Hz~400Hz)
(External Convertor)

6mA/60mA/600mA

±(2%+5)

6A

±(2.5%+5)

Resistance (Ω)

6kΩ/60kΩ/600kΩ

±(1.2%+5)

600Ω/6MΩ/60MΩ

±(1.5%+5)

Capacitance (F)

6nF/6mF

±(5%+10)

60nF/600nF/6μF/60μF/600μF

±(4%+5)

Display Count

6000

Auto Range

√

General Characteristics

Power

Lithium Battery: 7.4V  4400mAh;
DC Adapter: 100~240V 50/60Hz input, 9V/4A Output

Display

5.7 inches TFT LCD, QVGA (320×240)

Product Color

Red and grey

Product Net Weight

1.8kg

Product Size (W×H×D)

268mm × 168mm × 60mm

Standard Accessories

Probe×2 (1×,10× Switchable), Current Voltage Convertor×2, Power Cord, DC Adaptor, Test Lead, PC Software CD

Standard Individual Packing

Gift Box, Carrying Bag, English Manual

Standard Quantity Per Carton

4pcs

Standard Carton Measurement (L×W×H)

500mm × 400mm × 320mm

Standard Carton Gross Weight

10.8kg
