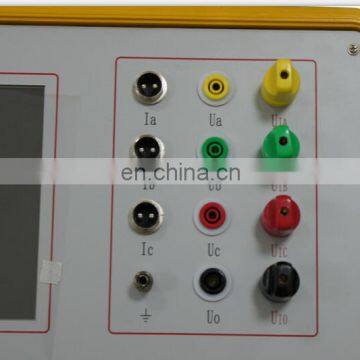

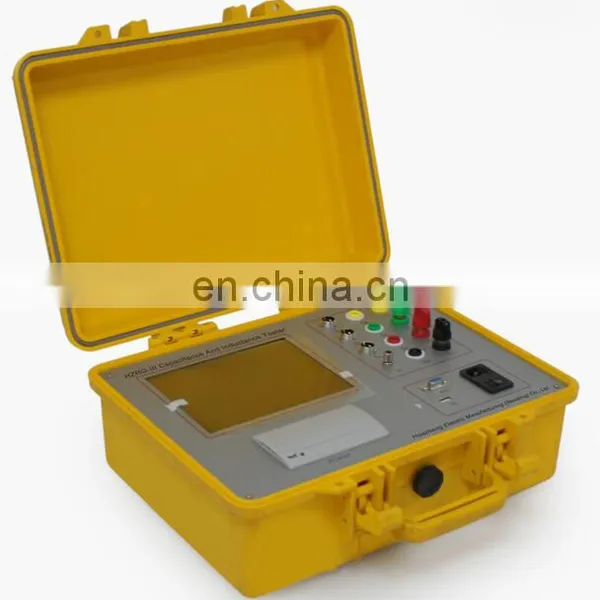

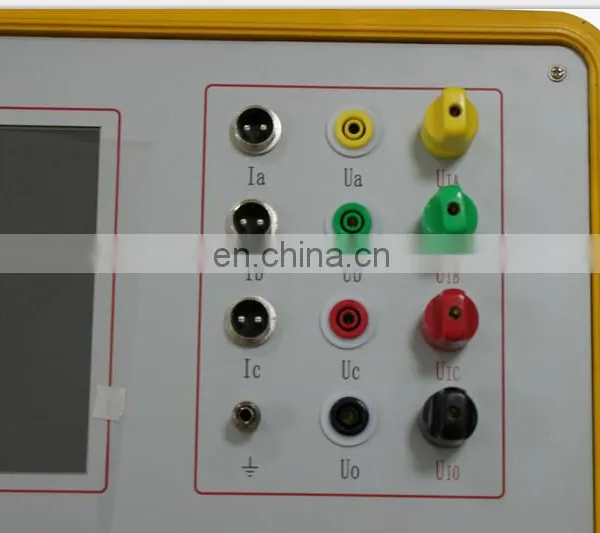

HZ-6300 Transformer Capacity and Characteristic Tester
HZ-6300 Transformer Capacity and Characteristic Tester Description:
Transformer capacity tester is the instrument that specializes for testing transformer capacity and loss data .It has high performer battery which can test 500pcs without outside power.
The accuracy can up to 100%, this instrument is comprehensive tester which includes the function of active transformer test+ transformer loss tester + harmonic analyzer+ oscilloscope. The instrument can test the capacity, no load current, no load loss and short circuit loss and impedance voltage and so on. In addition, it can also test the voltage, current, harmonic and network analyzer.
HZ-6300 Transformer Capacity and Characteristic Tester: Features:
1 Testing capacity, passive test of distribution transformer
2 Internal battery can auto output 3 phase testing power
3 test the capacity, no load current, no load loss and short circuit loss
4 the model of transformer can test by no load test. For example: S7, S9, S11, S13, S15, SCB9, SCB10, SCB11 and so on.
5 Auto Waveform distortion correction, temperature correction, voltage correction, current correction
6 Testing the harmonic of the voltage and current and the total harmonic distortion.
7 Simple vector analysis, vector drawing.
8 Showing the various electrical parameters of the waveform, as oscilloscopes use.
9 The amount of voltage circuit width limit: maximum measurable voltage to 750V, without having to switch gears to ensure accuracy.
10 Capacity testing range: 20kVA~100000kVA
| the input characteristics | Active part: |
| Accuracy | Voltage, current, frequency: ± 0.2% |
| Operating Temperature | -10 °C ~ +40 °C |
| charging power supply | AC 160V ~ 260V |
| insulation | 1, voltage, current input of the insulation resistance of the chassis ≥ 100M. |
| Size | 32cm × 24cm × 13cm |
| Weight | 3kg |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
