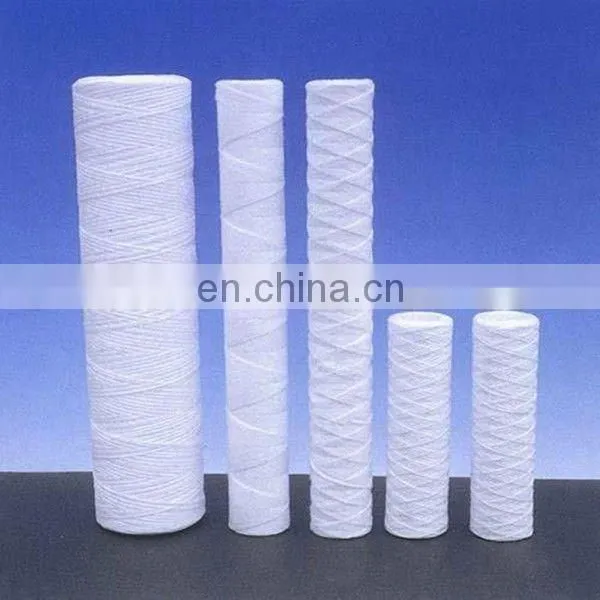

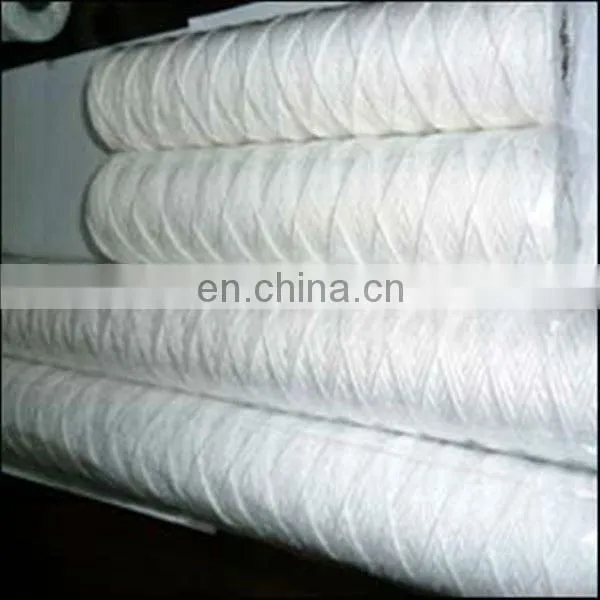

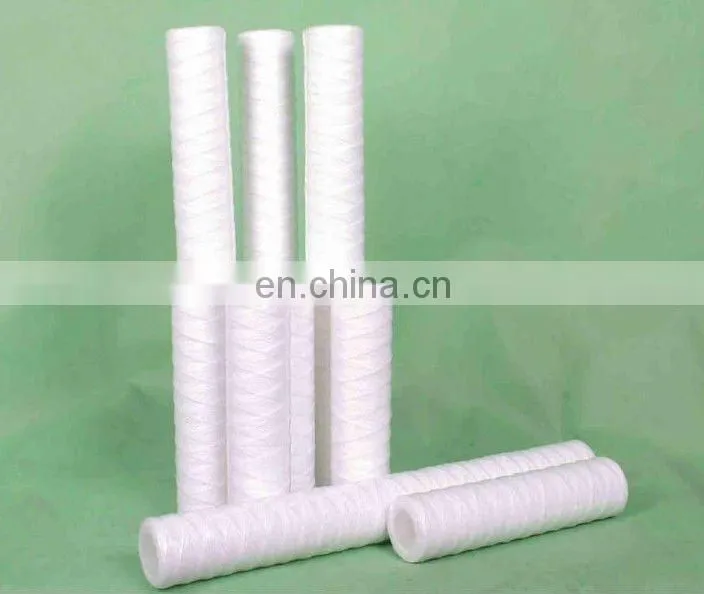

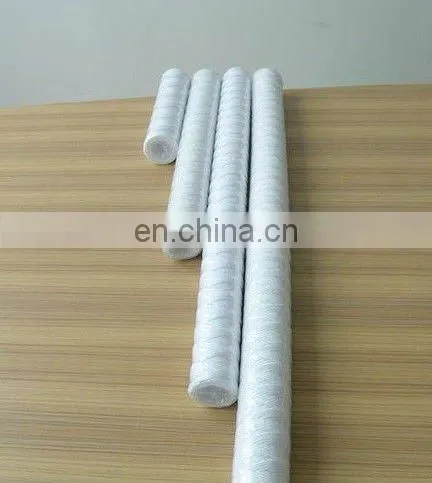

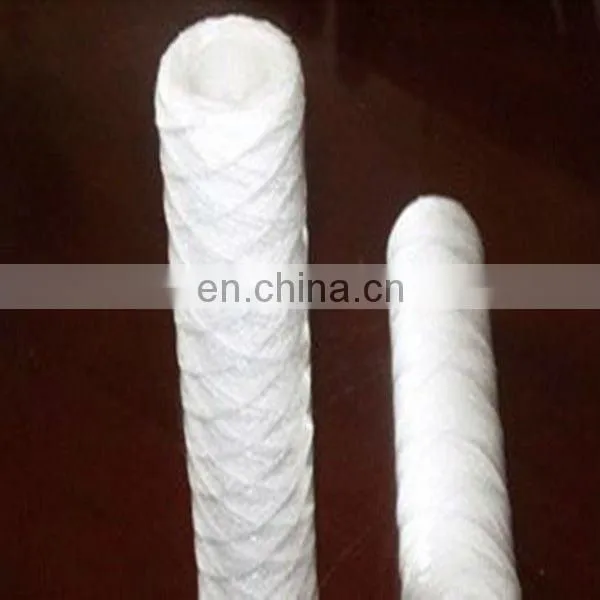

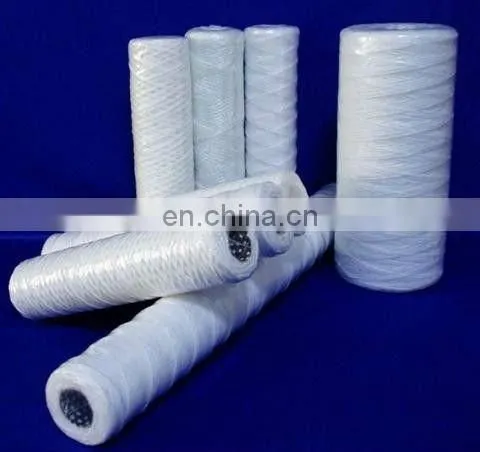

10 inch cotton String / Thread Wound Water Filter Cartridge WP012
Main Applications
Various water line to the filter, the security filter; food, beverages, drinking water filtration; solvents, acids, alkalis filter; oil with water filtration; boiler water purification filters; industrial oil filter.
Key Features
Filtration precision: 0.5μm,1μm,3,μm,5μm,10μm,20μm
The maximum permitted operating temperature: 60 degrees
Length: 5 "10" 20 "30" 40 "
Products Advantages
(1)Low-cost investment , small pressure loss during the treatment
(2) With stainless steel threaded coupling centers and interface connector.
(3) The special design for backflushing .
(4) High-pollution capacity in full-length filter.
(5) Run a small resistance, strong adsorption.
(6) Provide different sizes filter element for powdex/ pre-filters.
(7) Large flow rate, smaller area, easily installation.
(8) Simple system.There is no pollution acid consumption and waste, deal with the waste easily to protect for well environment.
We use imported depthtype filter material,tapered pore structure,gradient filter,can intercept granule furthest,to extend the service life.
We use hightech support materials. Hightech support materials can not only play the role of support filter material and avoiding compressive deformation,but also protect the materials from being damaged during processing.

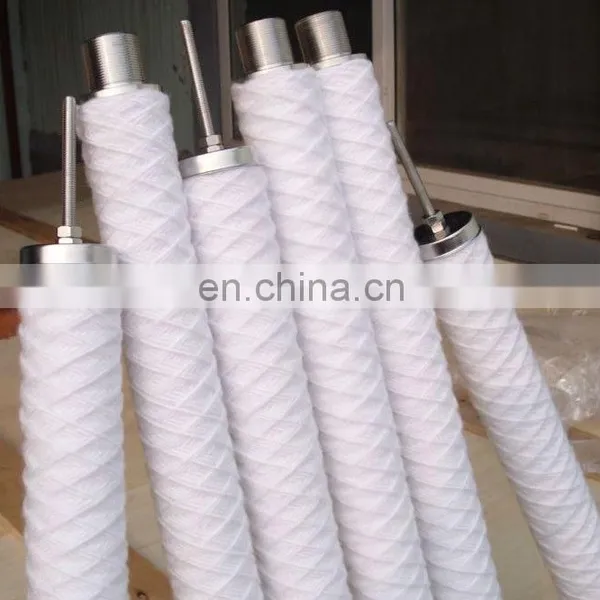

We also use the special spiral wrapping belts,so thar filter layers can be connected firmly.Stationary pleated distance ensures the uniform flow when fluid penetrating the filter layer.Not only improving pressure drop,but also extending service life.
Welcome old and new customer orders and wish together happily!
Monica Wang
Huahang Filter Co.LTD.
Skype: lanxiaoxiang0707 Mobile: +86-15083137252
Technical Parameters
Product |
10 inch Wire string wound filter cartridge |
Material |
Polypropylene,absorbent cotton, glass fibre |
Precision filtration |
0.1~100micron |
Outer diameter |
60~63mm |
Inner diameter |
28mm or 30mm,customize |
Length |
5',10',20',30',40' |
Max differential pressure |
2 kgf/cm² |
Max pressure |
4 kgf/cm² |
Max operating temperature |
PP with PP core:60 °C PP with SS core: 100 Absorbent cotton with SS core:120 Glass fibre with SS core: 180~300 |
Operating differential pressure |
