jacuzzi swimming pool filter/swimming pools sand filters
Swimming pool filter specifications
| OD | 2-3/4",2-5/8",2-7/8",3-1/4",3-1/8",4-1/2",4-1/4",4-15/16",4-3/4", 4-5/16",4-5/8",5",6",7", 8",9",10",10-1/6 ",12",12-1/16". |
| Length | 4"--- 40". |
| Filter Rating | 3μ---50μ |
| Filter Area | 2sq ft---300sq ft |
| Work Temperature | 1°C---50°C |
| Pressurization | 0.1---0.6MPa |
More dimesions for your choice
| Model Number | OD | Top | Bottom | Media | Length | Sq.ft | Pleat Count | Manufacturer | Replaces |
| 20035 | 2-3/4" | 1-1/16" open | 1-1/16" open | 3 | 5-1/8" | 3.5 | 76 | 3.5 sq.ft. Spa-In-A-Box | C-2305 |
| 20041 | 2-3/4" | 1-1/16" open | closed | 3 | 6" | 3.7 | 75 | 3.7 sq.ft. Skim Filter | C-2304 |
| 20042 | 2-7/8" | 1-1/16" open | 1-1/16" open | 6 | 9-3/4" | 4 | 41 | 4 sq.ft.Rainbow, Pac-Fab | C-2604 |
| 20043 | 2-7/8" | Hose Fitting | closed | 6 | 9-3/4" | 4 | 41 | 4 sq.ft. fill filter | C-2699 |
| 20044 | 2-5/8" | 1-1/16" open | 1-1/16" open | 3 | 14-11/16" | 6 | 41 | 6 sq.ft filter | NA |
| 20061 | 2-5/8" | 1-1/16" open | 1-1/16" open | 6 | 14-11/16" | 6 | 41 | 6 sq.ft. Wet Institute | C-2601 |
| 20062 | 2-3/4" | 1-1/16" open | 1-1/16" open | 4 | 9-3/4" | 6 | 75 | 6 sq.ft. Harmsco ST/6,American,Pac-Fab,Premier,Rainbow,Swimquip.Swimrite | T-380R |
| 20062 | 2-3/4" | 1-1/16" open | 1-1/16" open | 4 | 9-3/4" | 6 | 75 | 6 sq.ft. Harmsco ST/6,American,Pac-Fab,Premier,Rainbow,Swimquip.Swimrite | T-380 |
| 20063 | 2-3/4" | 1-1/16" open | 1-1/16" open | 3 | 9-3/4" | 6 | 75 | 6 sq.ft. Harmsco OTC/6-4 | C-2306 |
| 20065 | 2-7/8" | 1-1/16" open | 1-1/16" open | 6 | 9-3/4" | 6 | 62 | 6 sq.ft.American,Pac-Fab,Premier,Rainbow,Swimquip.Swimrite | C-2606 |
| 20066 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 14-11/16" | 6 | 41 | 6sq.ft. Wet Institute | C-2607 |
| 20081 | 2-7/8" | 1-1/16" open | 1-1/16" open | 3 | 9-3/4" | 8 | 84 | 8sq.ft. American, Rainbow | C-2308 |
| 20082 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 19-1/2" | 8 | 41 | 8 sq.ft. Rainbow 19 | C-2608 |
| PP6903 | 2-3/4" | Hose Fitting | Closed | PP | 10" | n/a | n/a | Disposable filter with hose adapter | FC-3128 |
| 20101 | 2-5/8" | 1-1/16" open | 1-1/16" open | 6 | 19-15/16" | 10 | 62 | 10 sq.ft. Encon Spa | C-2610 |
| 20131 | 2-7/8" | 1-1/16" open | 1-1/16" open | 3 | 14-11/16" | 12 | 84 | 12 sq.ft. Rainbow | C-2912 |
| 20132 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 19-1/2" | 12 | 62 | 12 sq.ft. Rainbow 19X | C-2612 |
| 20133 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 29-1/4" | 12 | 41 | 12 sq.ft. Rainbow 29 | C-2613 |
| 20151 | 2-7/8" | 1-1/16" open | 1-1/16" open | 3 | 17-1/16" | 14.5 | 84 | 14.5 sq.ft.Rainbow-Hi Flow | C-2302 |
| 20181 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 29-1/4" | 18 | 62 | 18 sq.ft. Rainbow 29X | C-2618 |
| 20191 | 2-7/8" | 2-1/8" open | 2-1/8" open | 3 | 17-1/16" | 8.5 | 150 | 8.5 sq.ft. Rainbow-Chloro | C-2303 |

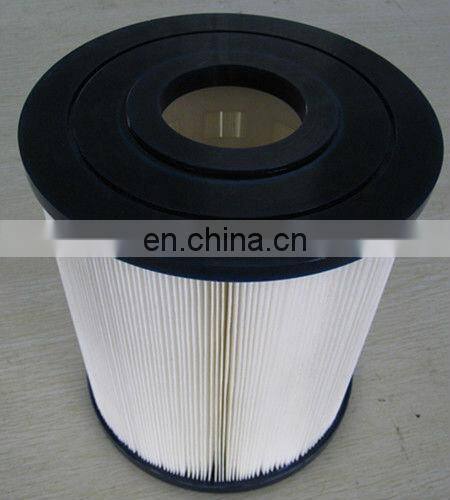

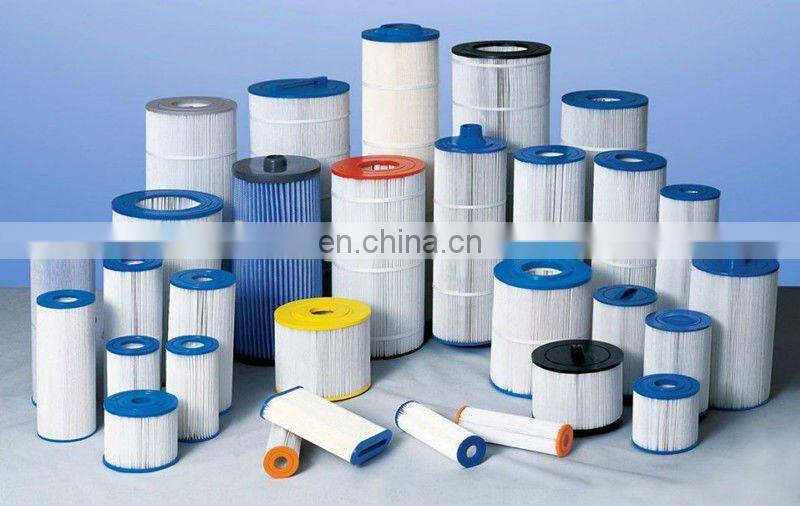

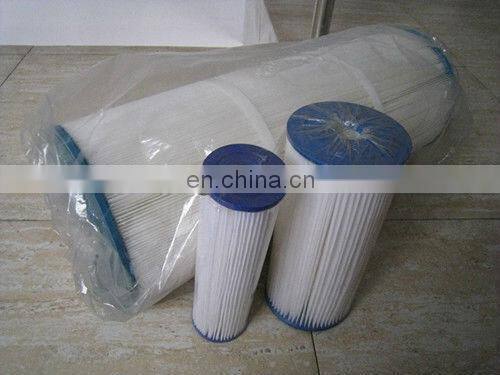

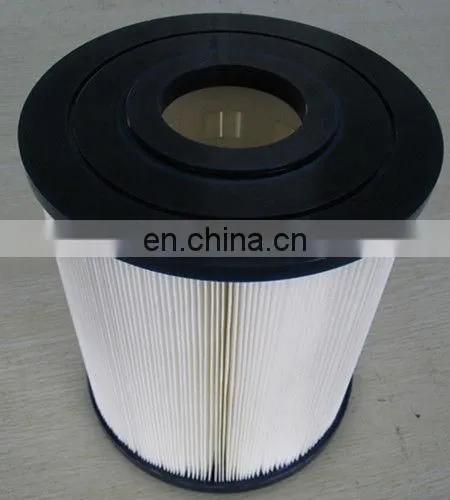

Swimming pool filter picture show
Swimming pool filter instruction
swimming &pool & spa filter cartridge epuipment,water filtration system.Highflux Folded Filter
Element, which is made of polythylene terephthalate (PET) nonwovens, has the speciality of
durability.High Water Flow means less shells, low turnover rate and larger sewage capacity.
It is much faster, easier and safer for renewal with the handmade design.O-ring insures
complete filtration.The filter element can be used in both aqueous and non-aqueous medium by using the material of PET.The large folded area can reduce much pressure than other filter
elements do and gain the longer working life.
Advantages:
1) Pleated design maximizes dirt-bolding capacity
2) Increased filter area longer filtration runs
3) Able to clean and reuse most applications
4) Designed for general water filtration purposes
5) Economicaly priced

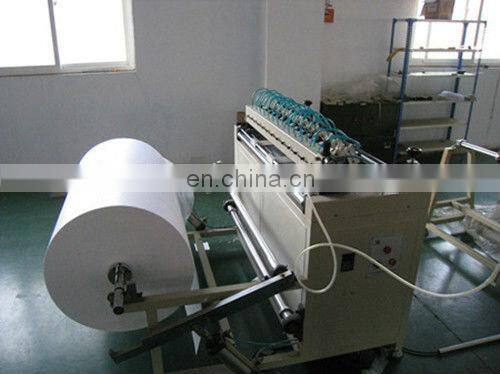

Our company show
Xinxiang City Huahang Filter Co., Ltd. is a professional industrial filter manufacturer
integrating design,production and marketing. With strong technical force, perfect
testing means, and excellent aftersales service, we provide users with a variety of
high-quality products.
Our best selling water filter element as follows
Swimming pool water filter cartridge
Large flow water filter cartridge
Stinless steel water filter cartridge
If your are interested in our swimming pool filter.Please leave a inquiry.and you can send the dimensions and material to me.Any questions,please feel free to contact me.
