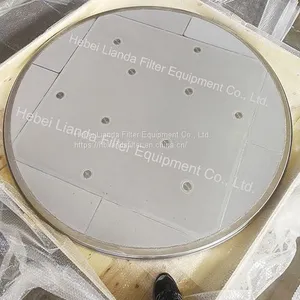

Help Center1 2 5 10 20 50 100 um Micron Stainless Steel Sintered Wire Mesh Nutsche Filter Disc Plate
Related Products
-
Stainless Steel Cylindrical Wire Mesh Filter Cartridge for Water FiltrationNegotiableMOQ: 1 Piece -
Sintered Mesh Filter Screen Tube for Automatic Self-cleaning / Backwash Water Filter & StrainerNegotiableMOQ: 1 Piece
-
Stainless Steel Sintered Mesh Filter Cartridge With Customized Shape and End Fitting AdapterNegotiableMOQ: 1 Piece
-
Pleated Metal Mesh Sintered Fiber Polymer Melt Filter Cartridge for Polymer Film Resin Chip Fiber Monofilament ProcessingNegotiableMOQ: 1 Piece
-
5 Micron 5 Layers Stainless Steel Sintered Wire MeshNegotiableMOQ: 1 Piece
| Model | DF | Nominal rating(μm) | 1 2 3 5 micron |
| Classification | Disc filter Nutsche filter disc | Outer diameter(mm) | As custom |
| Filter media | Sintered wire mesh | Length(mm) | NA |
| Material | 316L stainless steel | Connector | NA |
| Application | Nutsche filter | ||
*Customized product can be produced once negotiated.
*Other material including 304, 310, 904L, Duplex, Inconel, Hastelloy and Monel also available for custom needs.
Nutsche filter sintered wire mesh disc is the metal filter disc plate made of sintered wire mesh and support plate / frame. Disc structure can be disc plate assembly or monoblock. The sintered wire mesh can be welded with the frame plate sections, sections then are assembled with bolts as a disc plate assembly. While in monoblock, the sintered wire mesh is whether welded or sintered with the whole disc support plate / frame then welded with flange as disc assembly.
Sintered wire mesh filter disc is designed to be compatible with backwash / backflush and can be in service for long time while regularly cleaned.
Sintered wire mesh is the combination of different layer of wire mesh sintered under high temperature inert gas inside the furnace. During the sintering (diffusion bonding) process, indiviual wires and each adjacent layer of the mesh bond to each other. After cooling, the sintered wire mesh is rigid and completely flat readily to be finished.
Sintered wire mesh combines the property of the different layers and obtains more superior characteristics, such as:
- Maintaining steady filter rating even under high working pressure and temperature;
- Notably durable with robust construction;
- Excellent cleanability and dirt holding capacity;
- Ability to be processed by pleating, cuting, welding, punching, bending etc;
- Versatile configuration for various application due to layer material and quantity choice.
