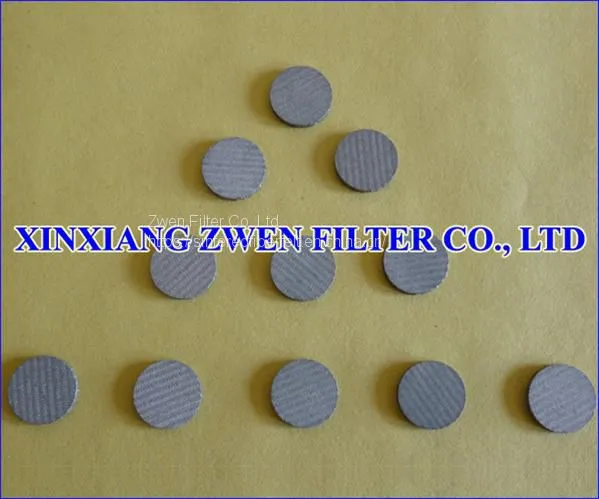

Sintered Mesh Filter Disc

Sintered Mesh Filter Disc Feature

1. Sintered Mesh Filter Disc  is surface filtration

2. Sintered Mesh Filter Disc is good for backwash because the pore passage of zwen sintered  wire       mesh aperture is very smooth

3. Sintered Mesh Filter Disc has uniform pore size distribution

4. Sintered Mesh Filter Disc will not shed in filtration process

5. High compression strength

6. High mechanical strength

7. High rigidity

8. High abrasion resistance

9. Good durability against most liquids, gases and aggressive steam

10. High temperature resistance

11. High filter rating accuracy

12. High filter efficiency

13. Good corrosion resistance

14. Washable and Cleanable

15. Reusable

16. Long service life

Sintered Mesh Filter Disc Technical Parameter

Raw Material: SS 316L, SS 304

Filter Media: ZWEN Sintered Wire Mesh

Filter Rating: 0.5-300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Diameter: ≤ 1000 mm

Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others

Application

Sensor, inductor, detector, survey meter, pressure release device, polymer extrusion device, polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
