5 Micron 5 Layers Stainless Steel Sintered Wire Mesh

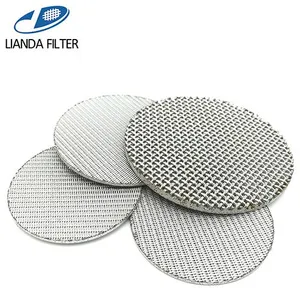

5 Micron 5 Layers Stainless Steel Sintered Wire Mesh thumbnail-1
5 Micron 5 Layers Stainless Steel Sintered Wire Mesh photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Lianda
Place of Origin:
China
Model Number:
A5
Contact Supplier Request Quote Chat Now
Hebei Lianda Filter Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Lianda
Place of Origin China
Model Number A5
Material Metal
Thickness 1.7mm
Type Other, Sintered wire mesh
Usage Liquid Filter
Filter Rating 1 2 5 10 15 20 25 30 40 50 100 150 200 other optional
Hole Shape Other
Model
Type A A5-5
Nominal rating(μm)
5 micron
Classification
Sintered wire mesh
Dimension(mm)
510mm*510mm
Material
316L stainless steel
Structure
5 layers
Application
Filtration separation aeration
*Customized product can be produced once negotiated.
*Other material including 304, 310, 904L, Duplex, Inconel, Hastelloy and Monel also available for custom needs.
Stainless steel sintered wire mesh
Sintered wire mesh type A specification:
Model
Nominal Rating
μm
Structure
Thickness mm
Air Permeability
l/min/cm2
Bubble Point Pressure
mmH20
A5-1
1
100+400×2800+100+12×64+64×12
1.7
1.81
360-600
A5-2
2
100+325×2300+100+12×64+64×12
1.7
2.35
300-590
A5-5
5
100+200×1400+100+12×64+64×12
1.7
2.42
260-550
A5-10
10
100+165×1400+100+12×64+64×12
1.7
3.00
220-500
A5-15
15
100+165×1200+100+12×64+64×12
1.7
3.41
200-480
A5-20
20
100+165×800+100+12×64+64×12
1.7
4.50
170-450
A5-25
25
100+165×600+100+12×64+64×12
1.7
6.12
150-410
A5-30
30
100+400+100+12×64+64×12
1.7
6.70
120-390
A5-40
40
100+325+100+12×64+64×12
1.7
6.86
100-350
A5-50
50
100+250+100+12×64+64×12
1.7
8.41
90-300
A5-75
75
100+200+100+12×64+64×12
1.7
8.70
80-250
A5-100
100
100+150+100+12×64+64×12
1.7
9.10
70-190
Thickness: 1.7(mm); Porosity : ~37%;Weight kg/m²: 5-layers sintered wire mesh (8.4) 6-layers sintered wire mesh (14.4)

6-layers construction adds addtional 12 mesh to ordinary 5-layers mesh for better pressure resistance, thus thickness reaches
3.5mm.
Sintered wire mesh is the combination of different layer of wire mesh sintered under high temperature inert gas inside the furnace. During the sintering (diffusion bonding) process, indiviual wires and each adjacent layer of the mesh bond to each other.After cooling, the sintered wire mesh is rigid and completely flat readily to be finished.

Sintered wire mesh combines the property of the different layers and obtains more superior characteristics, such as:
- Maintaining steady filter rating even under high working pressure and temperature;
- Notably durable with robust construction;
- Excellent cleanability and dirt holding capacity;
- Ability to be processed by pleating, cuting, welding, punching, bending etc;
- Versatile configuration for various application due to layer material and quantity choice.


Product Tags: Sintered wire mesh , sintered mesh laminates , sintered wire cloth , 5 layer sintered wire mesh
