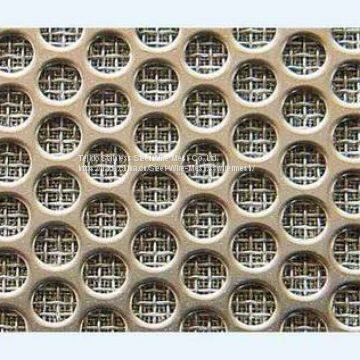

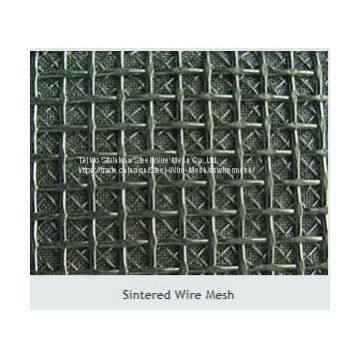

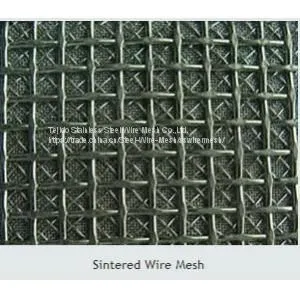

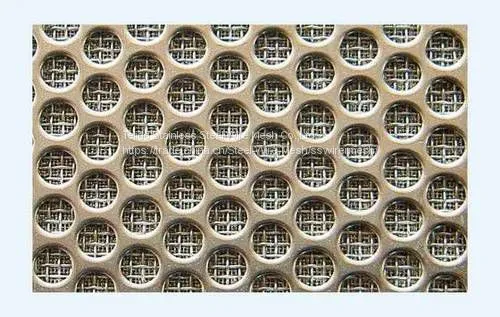

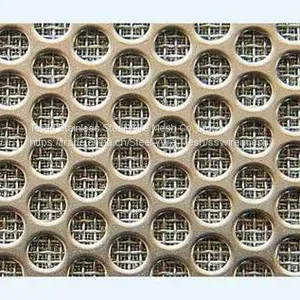

Sintered Wire Mesh is a standard lamination structure made by sintering multi-layers of stainless steel wire cloth together through vacuum processing. Involved processing includes vacuum sinter, compression and rolling and fabricating. Sintered metal is a kind of porous metal sheet with wide applications. Commonly three or five layers are applied in manufacture of sintered mesh. Tejido can supply sintered wire mesh laminates and its finished filter cartridges and elements products.

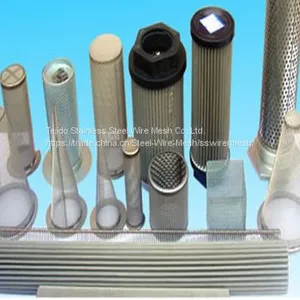

Sintered Mesh Laminates, Three or Five Layers as Standard and Commonly Used Filter Media for Filter Cartridge and Elements Processing.
General Information:
Materials:SS304,SS316,SS316L
Standard Sintered Mesh Size:500x1000mm; 600x1200mm. Max size: 610mmx1250mm
Features:
Sintered mesh has the superior advantage of fine micron opening (from 1micron to 100micron), high durability, high strength, easy to wash than the other filter materials.
· Constant filter rating: with protective layers and sintering combination technology, the mesh of the filter layer is not easy to change.
· High mechanical strength. Excellent resistance to pressure and high mechanical strength thanks to the fourth and fifth metal layers reinforced.
· Corrosion resistance as a result of adopting choice 316L.
· High accuracy: Outstanding filtration performance can be achieved thanks to the precise aperture of the control layer, also the good function of dispersion layer.
· Heat resistance. Heat resistant up to 480℃.
· Easy processing: The sintered metal sheet is suitable to cut, punching, warp tension and jointing.
· Easy Washing: Especially back washing owing to the surface filtration structure.
