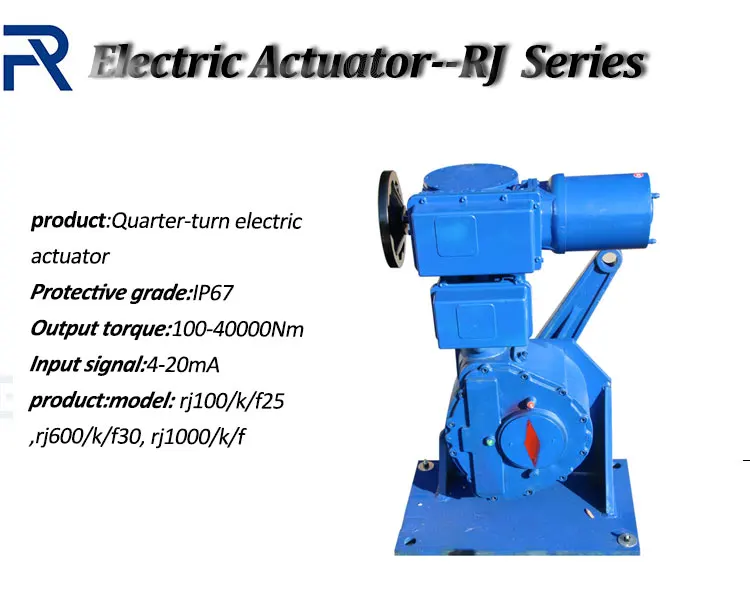

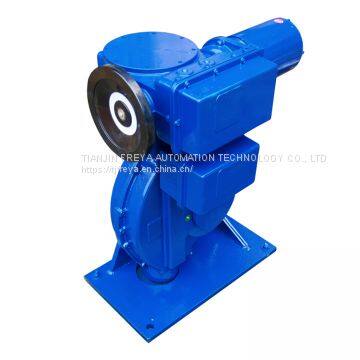

rj100, rj600, rj1000 are SD series of part-turn electric actuators. According to the control mode, the electric actuators are divided into part-turn electric actuators,linear-turn electric actuators and multi-turn electric actuators.Part-turn actuators are also known as part of the return receipt actuators, general rotation range of 0-90°, the output torque in Nm.butterfly valve, ball valve, shutter type valve, damper, baffle and plug valve.Part-turn electric actuators can be divided into base type and directly connected type according to the installation method. Obviously, our products are part-turn base type electric actuators.
Input signal:4-20mA impedance 250 Ω,0-10mA impedance 200 Ω.
Dead area (sensitivity):0.3-3% Continuous adjustable.
Input channel:one analog quantity current input channel, one set of switch volume channel.
Output channel:4-20mA DC impedance > 50 Ω. The input channel is isolated from the output channel.
Output torque and travel: Quarter-turn: 100-40000Nm travel 90°
Basic error:±1%;±1.5%
Return difference:≤ ±1%
damping characteristics:No oscillation (zero period oscillation)
Level of protection: IP67
Operation environment:
1.Temperature: -28--+70°
2.Humidity: ≤ 95%
3.shake:frequency 10-100Hz strength, 0.5 times of acceleration of gravity
4.Impact:
5.barometric pressure:72.5-106KPa
6.The non-corrosive gas media in the surrounding air must not be used in inflammable and explosive places.
Single phase:220V--±10%50Hz
Three phase: 380V--±10%50Hz
Special voltage, frequency needs to be customized in advance.
Shipment Term:
1. Orders processed timely after the payment verification .
2. Terms of Deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment Term:
1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.
2. Advance payment should be made within 3 days of order .
Our company provides you with the following services free of charge:
1. All-round electric actuator and valve technology selection service
2. High-quality post-product maintenance and technical analysis services
3. Accept other related cooperation.
