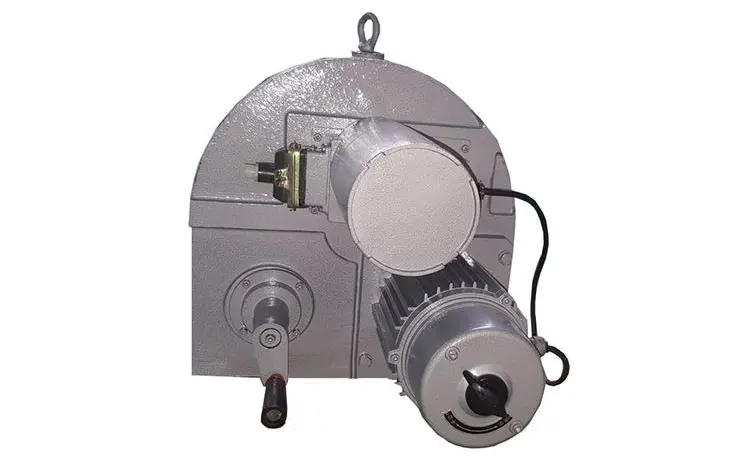

Direct Mounted Type Intelligent Quarter Turn Induced Draft Fan Electric Actuator DKJ-5100Z

Direct Mounted Type Intelligent Quarter Turn Induced Draft Fan Electric Actuator DKJ-5100Z thumbnail-1
Direct Mounted Type Intelligent Quarter Turn Induced Draft Fan Electric Actuator DKJ-5100Z photo-1
US$ 600 - 1300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Freya
Place of Origin:
China
Model Number:
DKJ-5100Z
Contact Supplier Request Quote Chat Now
Tianjin Freya Automation Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XINGNAG PORT
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Freya
Place of Origin China
Model Number DKJ-5100Z




    Direct Mounted Type Intelligent Quarter Turn Induced Draft Fan Electric Actuator DKJ-5100Z is an execution unit in DDZ type electronic unit combined instrument,accepts signals from regulating unit(or computer)and automatically controls the actuator to complete regulating tasks. it is widely applied to power stations chemical,petroleum,metallurgy,building materials,heat supply,water treatment and other industries.

    Direct Mounted Type Intelligent Quarter Turn Induced Draft Fan Electric Actuator DKJ-5100Z with various electric Manipulators can achieve undisturbed switching of “ Manual-Automaticmatic”of the regulating system for remote manual operation on an object to be regulater in a timely manner.

    All the actuator position transmitters produced by our company adopt the latest sensory packages reference to the latest circuits of foreign companies,integrating power transformer.rectification,voltage stabilization, power amplification and constant current,the fabricated module makes the reliablity and stability of the actuator higher,so as to make the system more secure and reliable.



Input signals

Type II:0-10mA,DC;Type III:4-20mA,DC

Input channel

3

Input channel impedance

Type II :200Ω;Type III:250Ω

Basic error

±2.5%(dead band:≤3% Return difference: 1.5%)

Damping characteristic

≤ a half and three cycles

Voltage of the power supply

220V(+10%,~15%)  frequency: 50HZ

Temperature of the operating environment

Actuator: -10~+55℃ or -25~+70℃;amplifier:0~+50℃

Relative humidity of the operating environment

Actuator:≤95%;amplifier:10%~70%



The following letters represent the different control features and conjunctive modes when combine with the prefix DKJ, SKJ and ZKJ of quarter-turn electric actuator.

1. M type means switch-type module actuation.

2. D type and DY-JT type means electronic type(regulating) module actuation.

3. Z type means direct-connected actuation. ZM type is switch-type direct-connected actuation. ZD type is electronic direct-connected actuation.

4. B type means explosive-proof actuation. BM type is switch-type explosive-proof actuation. BD type is electronic explosive-proof actuation.

5. F type means electronic(regulating) module actuation.

6. Y type means electronic(regulating) module actuation.

7. EX type means explosive-proof or intelligent digital display regulating actuation.

8. CX type means the actuator has signal feedback DC 4-20mA with electric limit switch indication.

9. The unlisted electric actuator type please kindly connect with our company. We can customized the actuator regarding to your requirement.

DKJ-M DKJ-Z DKJ-B DKJ-D
DKJ-2100M DKJ-2100Z

DKJ-2100B

 DKJ-2100D(DY-J21T)
DKJ-3100M DKJ-3100Z DKJ-3100B DKJ-3100D(DY-J31T)
DKJ-4100M DKJ-4100Z DKJ-4100B DKJ-4100D(DY-J41T)
DKJ-5100M DKJ-5100Z DKJ-5100B DKJ-5100D(DY-J51T)
DKJ-6100AM DKJ-6100AZ DKJ-6100AB

DKJ-6100AD(DY-J61AT)
DKJ-6100M DKJ-6100Z DKJ-6100B DKJ-6100D(DY-J61T)
DKJ-7100M DKJ-7100Z DKJ-7100B DKJ-7100D(DY-J71T)
DKJ-8100M
DKJ-8100B DKJ-8100D(DY-J81T)

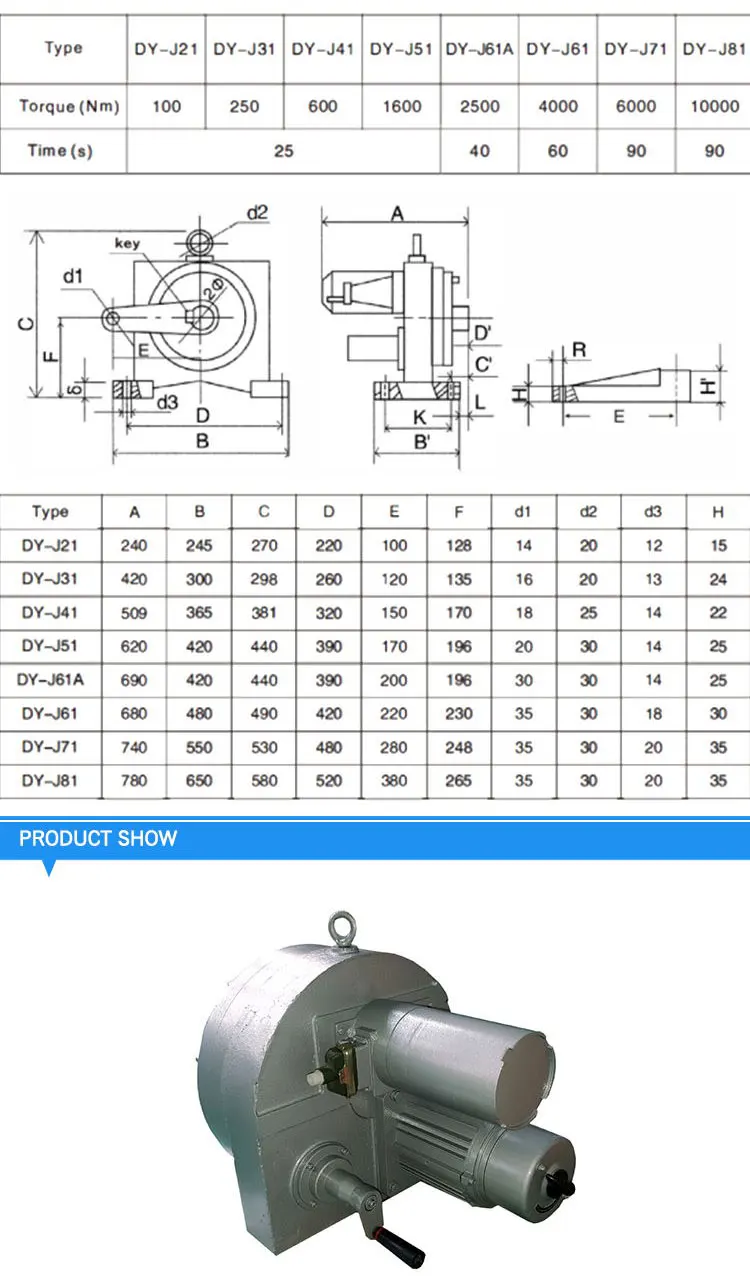

Mode

Output Torque

Nm

Travel time

S

Weight

kg

0~10mA

4~20mA

DKJ-210

DKJ-2100

100

25

30

DKJ-310

DKJ-3100

250

45

DKJ-410

DKJ-4100

600

75

DKJ-510

DKJ-5100

1600

125

DKJ-610A

DKJ-6100A

2500

40

130

DKJ-610

DKJ-6100

4000

60

175

DKJ-710

DKJ-7100

6000

60

230

DKJ-810

DKJ-8100

10000

100

230




Direct Mounted Type Intelligent Quarter Turn Induced Draft Fan Electric Actuator DKJ-5100Z was developed by our plant on the basis of the ordinary type DKJ electric actuator by absorbing foreign advanced technology and applying new foreign technology and new devices, and it has intelligent functions with integration of control circuit and the mechanism.


(DY-J) series electric actuator has the field manual function, so that the actuator can be adjusted in the field. If provided with DFD type electric Manipulator, it can complete undisturbed switching of ‘’Manual-Automatic’’ of the remote regulating system and remote manual operation on an object to be regulated.


Packaging & Shipping

Shipment Term:

1. Orders processed timely after the payment verification .

2. Terms of Deliver: FOB / CFR / CIF / EXW etc.

3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .

Payment Term:

1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.

2. Advance payment should be made within 3 days of order .

Documents:

1. Certificate of Origin: CO, FORM A, FORM E, FORM F, FORM X ISSUED BY CCPIT / Chamber of Commerce.

2. COMMERCIAL  INVOICE

3. PACKING LIST

3. QUALITY CERTIFICATE

Our Services

 Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation
