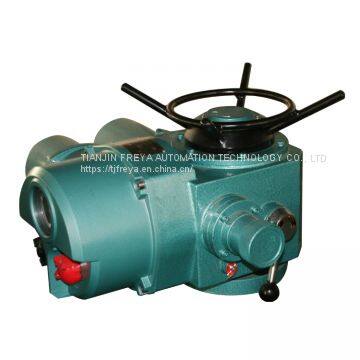

Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18

Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 thumbnail-1
Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 thumbnail-2
Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 thumbnail-3
Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 thumbnail-4
Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 thumbnail-5
Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 photo-1
Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 photo-2
Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 photo-3
Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 photo-4
Electric Actuated Globe Valve for Thermal Oil Dzb10-24 Dzb15-24 Dzb20-18 photo-5
US$ 600 - 1300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Freya
Place of Origin:
China
Model Number:
dzb10-24 dzb15-24 dzb20-18
Contact Supplier Request Quote Chat Now
Tianjin Freya Automation Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XINGNAG PORT
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Freya
Place of Origin China
Model Number dzb10-24 dzb15-24 dzb20-18

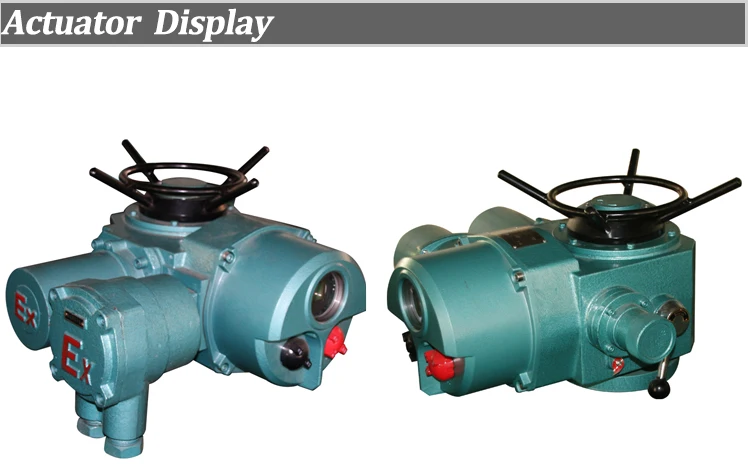

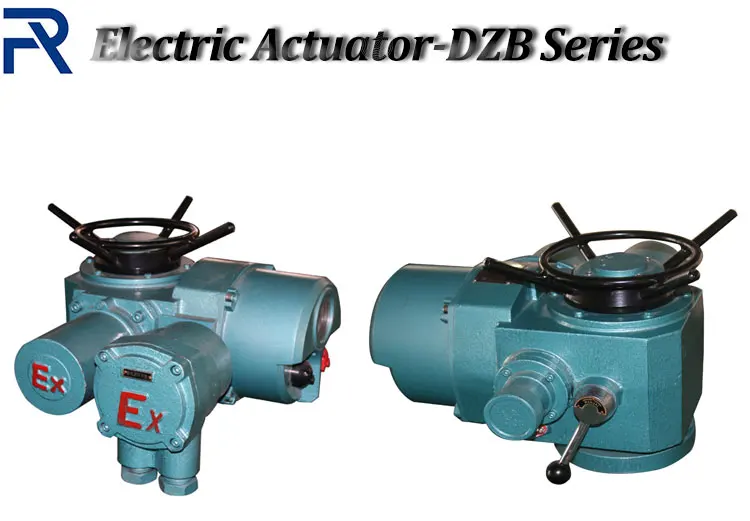

The DZB series of electric valve actuator is a new generation of products independently
developed by our company by improving and perfecting structures, optimizing protective
performance and key parts on original mature products, it has some advantages, such as: Compact structure, small volume, beautiful appearance and stable performance etc. The excellent protective grade can meet demands of many designs :Flame-proof type, global switch-type and global regulation-type designs.
DZB series of products are used to control open and close of the valves. The products can be
used for brake valve, stop valve, shutoff valve, and diaphragm valve, the derived products can be used for ball valve, butterfly valve and throttle etc., the product can accurately act according to the control instruction, therefore it is necessary driving unit for achieving remote control, centralized control and automatic control.
Performance of the product meets the provisions of JB/T8528-1997 (The technical conditions
for electric units of common valves). The flame-proof performance meets the requirements of
GB3836.1-2000(the electrical equipment used for explosive gas atmosphere, Part 1: General
requirements), GB3836.2-2000(the electrical equipment used for explosive gas atmosphere, Part 2: flame-proof type “d”), as well as JB/t8529-1997 (the technical conditions for flame-proof type electric units).




1. Power supply: The motor is three-phase AC380V, 50 Hz. The control is two-phase AC 220V, 50
Hz, optional power supply: AC220~660V, 50.60Hz (needs to be explained during ordering).
2. Ambient temperature: -20~+60℃;optional temperature:-40~70℃.
3. Relative humidity: Not greater than 95% (at 25 ℃).
4. Working environment: The common type is used in the places without inflammable, explosive
and strong corrosive medium; the using environment of flame-proof products (ExdIIBT4) are
used in explosive gas mixture of IIA, IIB grades, T1-T4 groups.
5. Protective grade: IP65/67 (IP 68 for special ordering).
6. Working provisions for the motor: Rated operation time is 10min. Grade F insulation.
7. Anti-corrosive coating: High-temperature stoving varnish.



Note: 1, Such as user needs, the factory can ovide additional speed 12/18/24/30/36/42/48/60 (r/min).
2, The conventional supply by three rows of counters, such as when a large numbe of turns
orders indicate, acco ng to counter supply four rows.

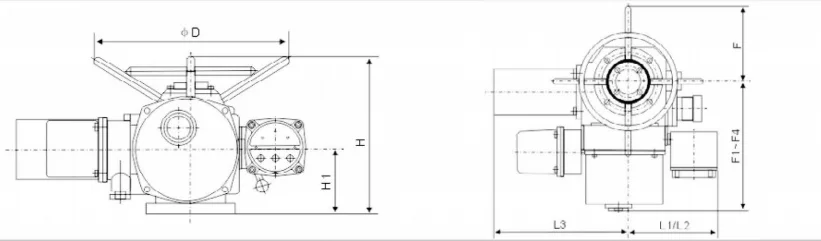

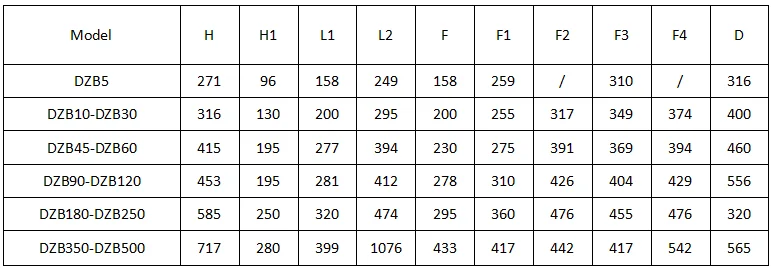

Product dimension figure





Note: F1 fo the outdoo type;F2 is flamep oof; F3 overall type;F4 overall flamep oof;overall adjustment flameproof.

Multi turn  valve actuators,  known as Z type. Suitable for  opening and closing parts  of the linear motion valves, such as gate valves,globe valves, diaphragm valves, gates,water valve etc. For the valve to open, close or regulation. Remote control valve is

achieved,the essential drive control and automatic control of. They have a fullfeatured, reliable performance, advanced control systems, smallsize, light weight, easy to use and maintain. Widely used in electric power, metallurgy, petroleum, chemical, paper,

desulphurizationand dust removal, sewage treatment and other industries. Multi turn electric actuators are:  outdoor type, flameproof,  the overall pattern,the overall  adjustment type, the overall type explosion, explosion overall adjustment type. By

 connection type, is also divided intotorque and thrust.








Shipment Term:

1. Orders processed timely after the payment verification .

2. Terms of Deliver: FOB / CFR / CIF / EXW etc.

3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .

Payment Term:

1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.

2. Advance payment should be made within 3 days of order .

Our Services

Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation.
