Analog Devices ADPD188BI-ACEZRL Integrated Optical Module complete photometric system for Smoke Detector

Features & Benefits:

• Supports UL-217 edition 8/ UL-568 ed. 7; EN-54; GB..; ISO

• Lowers Nuisance Alarms using a Dual Wavelength detection with higher SNR and dynamic range.

• 3X Lower power dissipation enables smaller/ cheaper batteries

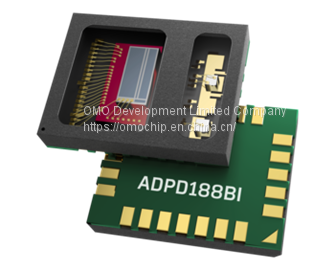

• Integrated Optical Module (3.8mm x 5mm x 0.9mm with 1 blue LED, 1 IR LED and 2 Photo diodes)

• simplifies EMC design,

• allows for greater diversity of industrial design options and

• Results in 75% fewer discrete components.

• Loop calibration at final test reduces calibration challenges with smoke detector products.

• Supported by ADI designed smoke chamber manufactured by Accumold, 28800X. (Please see , also under Resources below)

Products  details:the ADPD188BI is a complete photometric system for smoke detection using optical dual wavelength technology. the module integrates a highly efficient photometric front end, two light emitting diodes (LEDs), and two photodiodes (PDs). these items are housed in a custom package that prevents light from going directly from the LED to the photodiode without first entering the smoke detection chamber.
the front end of the application specific integrated circuit (ASIC) consists of a control block, a 14-bit analog-to-digital converter (ADC) with a 20-bit burst accumulator, and three flexible, independently configurable LED drivers. the control circuitry includes flexible LED signaling and synchronous detection. the analog front end (AFE) features best-in-class rejection of signal offset and corruption due to modulated interference commonly caused by ambient light. the data output and functional configuration occur over a 1.8 V I2C interface or serial peripheral interface (SPI) port.

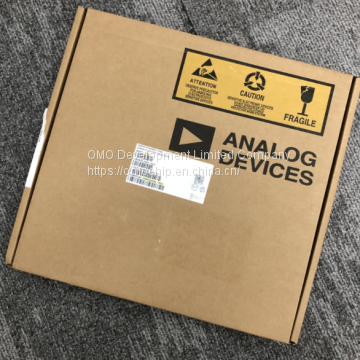

Delivery:

FAQ:

1) How can I place order?

A: After we quote you and confirmed,we will draft trade assurance order to you.

2) What is your terms of payment?

A:T/T ,Western Union,Paypal,Ali Escrow,Ali Trade Assurance Order.

3) What's the order procedure?

A:(1)Quantity and specification-->(2)Confirmed "e-->(3)Draft Trade Assurance Order-->(4)Payment done-->(5)Processing&Shipping-->(6)Receipt of goods-->(7)Order finished and Leave Feedback.

4)How do you take care when your clients received defective products?

A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

5) How do you check all the goods in good quality?

A: We have all these wholesale product in stock,they are 100% NEW Original Brand.From Resistor to IC,we only sell original brand product.Every product we sell can be checked in our ERP systerm.We take Life-long cooperation with every customer from all over the world,the quality is the most significant factors in our mind.

6) Do you sell the original products?

A: Yes, we only sale the original products, and all of them are brand new. If one of our products is counterfeit, we will compensate you ten times.

7) What payment methods do you support?

A: We provide: Visa / MasterCard/ TT / Wester union / PayPal etc.

8) What about the shipment methods?

A: We provide: DHL / UPS / TNT / FedEx / EMS / ePacket etc..

9) Are the products tested before shipment?

A: All products were tested before shipment, and the quality problems were negligible.

10) Do you have enough stock?

A: Yes, all of our products are in stock, if you are looking for other parts, please feel free to contact us (bonnie@omochip.com). We will try our best to help you find them.
