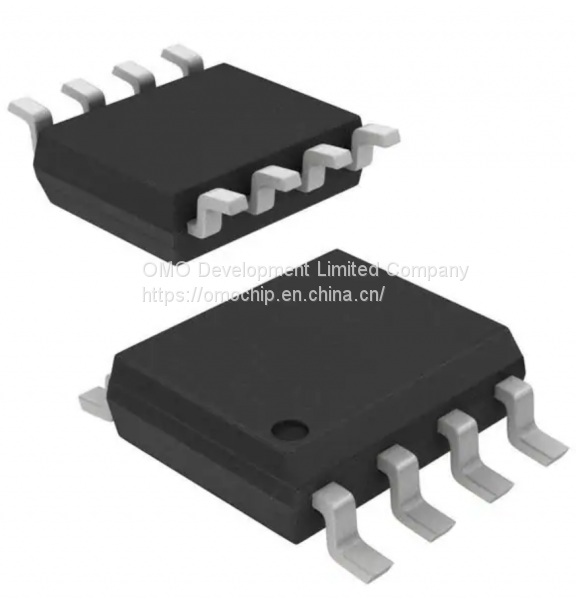

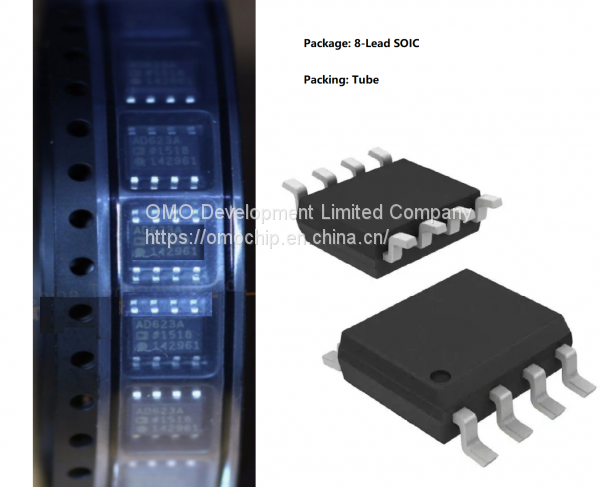

Analog Devices AD623ARZ OMO Brand New Amplifier Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier Icon-recommended

Quick Details：

Features & Benefits:

•


• Easy to use

• Rail-to-rail output swing

• Input voltage range extends 150 mV below ground (single supply)

• Low power, 550 μA maximum quiescent current

• Gain set with one external resistor

• Gain range: 1 to 1000

• 14-terminal, 6 mm 5.6 mm 2.2 mm, LCC package

• High accuracy DC performance

• 0.10% gain error (G = 1)

• 0.35% gain error (G > 1)

• Noise: 35 nV/√Hz RTI noise at 1 kHz

• Optimal dynamic specifications

• 800 kHz bandwidth (G = 1)

• 20 μs settling time to 0.01% (G = 10)

•


Technical details:

the AD623 is an integrated, single- or dual-supply instrumentation amplifier that delivers rail-to-rail output swing using supply voltages from 2.7 V to 12 V. the AD623 offers user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pinout configuration. with no external resistor, the AD623 is configured for unity gain (G = 1), and with an external resistor, the AD623 can be programmed for gains of up to 1000.

the accuracy of the AD623 is the result of increasing ac common-mode rejection ratio (CMRR) coincident with increasing gain. Line noise harmonics are rejected due to constant CMRR up to 200 Hz. the AD623 has a wide input common-mode range and amplifies signals with common-mode voltages as low as 150 mV below ground. the AD623 maintains optimal performance with dual and single polarity power supplies.

Delivery:

FAQ:

1) How can I place order?

A: After we quote you and confirmed,we will draft trade assurance order to you.

2) What is your terms of payment?

A:T/T ,Western Union,Paypal,Ali Escrow,Ali Trade Assurance Order.

3) What's the order procedure?

A:(1)Quantity and specification-->(2)Confirmed "e-->(3)Draft Trade Assurance Order-->(4)Payment done-->(5)Processing&Shipping-->(6)Receipt of goods-->(7)Order finished and Leave Feedback.

4)How do you take care when your clients received defective products?

A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

5) How do you check all the goods in good quality?

A: We have all these wholesale product in stock,they are 100% NEW Original Brand.From Resistor to IC,we only sell original brand product.Every product we sell can be checked in our ERP systerm.We take Life-long cooperation with every customer from all over the world,the quality is the most significant factors in our mind.

6) Do you sell the original products?

A: Yes, we only sale the original products, and all of them are brand new. If one of our products is counterfeit, we will compensate you ten times.

7) What payment methods do you support?

A: We provide: Visa / MasterCard/ TT / Wester union / PayPal etc.

8) What about the shipment methods?

A: We provide: DHL / UPS / TNT / FedEx / EMS / ePacket etc..

9) Are the products tested before shipment?

A: All products were tested before shipment, and the quality problems were negligible.

10) Do you have enough stock?

A: Yes, all of our products are in stock, if you are looking for other parts, please feel free to contact us (bonnie@omochip.com). We will try our best to help you find them.
