Analog Devices ADIS16460AMLZ ic Chip Compact, Precision, Freedom Inertial Sensor

Product Description:

Features and Benefits:

Triaxial digital gyroscope

Measurement range: ±100°/sec (minimum)

8°/√hr (typical) in-run bias stability

0.12°/√hr (typical) angle random walk, x-axis

·

  TriaXial digital accelerometer, ±5 g dynamic range

l Autonomous operation and data collection

l No external configuration commands required

l Fast start-up time

Factory calibrated sensitivity, bias, and axial alignment
Calibration temperature range: 0°C ≤ TA ≤ 70°C

Serial peripheral interface (SPI) data communications

l Data ready signal for synchronizing data acquisition

l Embedded temperature sensor

l Programmable operation and control

Automatic and manual bias correction controls

l Bartlett window finite impulse response (FIR) filter, variable number of taps

l External saple clock options: direct

l Single command self test

l Single-supply operation: 3.15 V to 3.45 V

2000 g shock survivability

Operating temperature range: −25°C to +85°C

Application:

Smart agriculture/construction machinery

Unmanned aerial vehicles (UAVs)/drones, and navigation and payload stabilization

Robotics

Factory/industrial automation personnel/asset tracking

Product details:

The ADIS16460 iSensor® device is a complete inertial system that includes a triaxial gyroscope and a triaxial accelerometer. Each sensor in the ADIS16460 combines industry leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, and alignment. As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements.

The ADIS16460 provides a simple, cost effective method for integrating accurate, multiaxis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. The SPI and register structures provide a simple interface for data collection and configuration control.

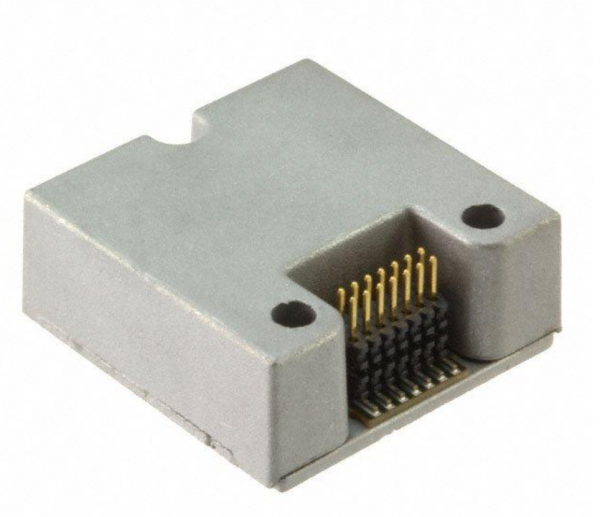

The ADIS16460 is in an aluminum module package that is approximately 22.4 mm × 22.4 mm × 9 mm and has a 14-pin connector interface.

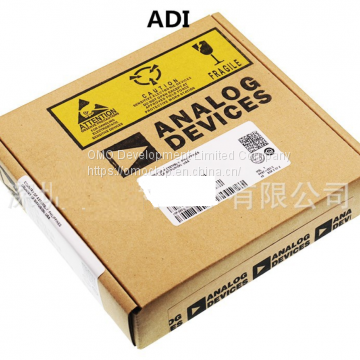

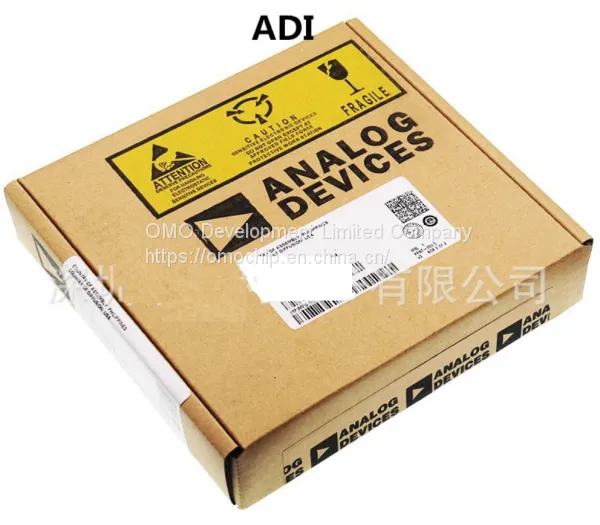

Packing Details

 FAQ:

Q1: Do you sell the original products?

A1: Yes, we only sale the original products, and all of them are brand new. If one of our products is counterfeit, we will compensate you ten times.

Q2: What payment methods do you support?

A2: We provide: Visa / MasterCard/ TT / Wester union / PayPal etc...

Q3: What about the shipment methods?

A3: We provide: DHL / UPS / TNT / FedEx / EMS / ePacket etc...

Q4: Are the products tested before shipment?

A4: All products were tested before shipment, and the quality problems were negligible.

Q5: Do you have enough stock?

A5: Yes, all of our products are in stock, if you are looking for other parts, please feel free to contact us (bonnie@omochip.com). We will try our best to help you find them.
