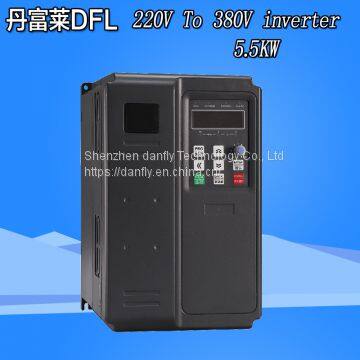

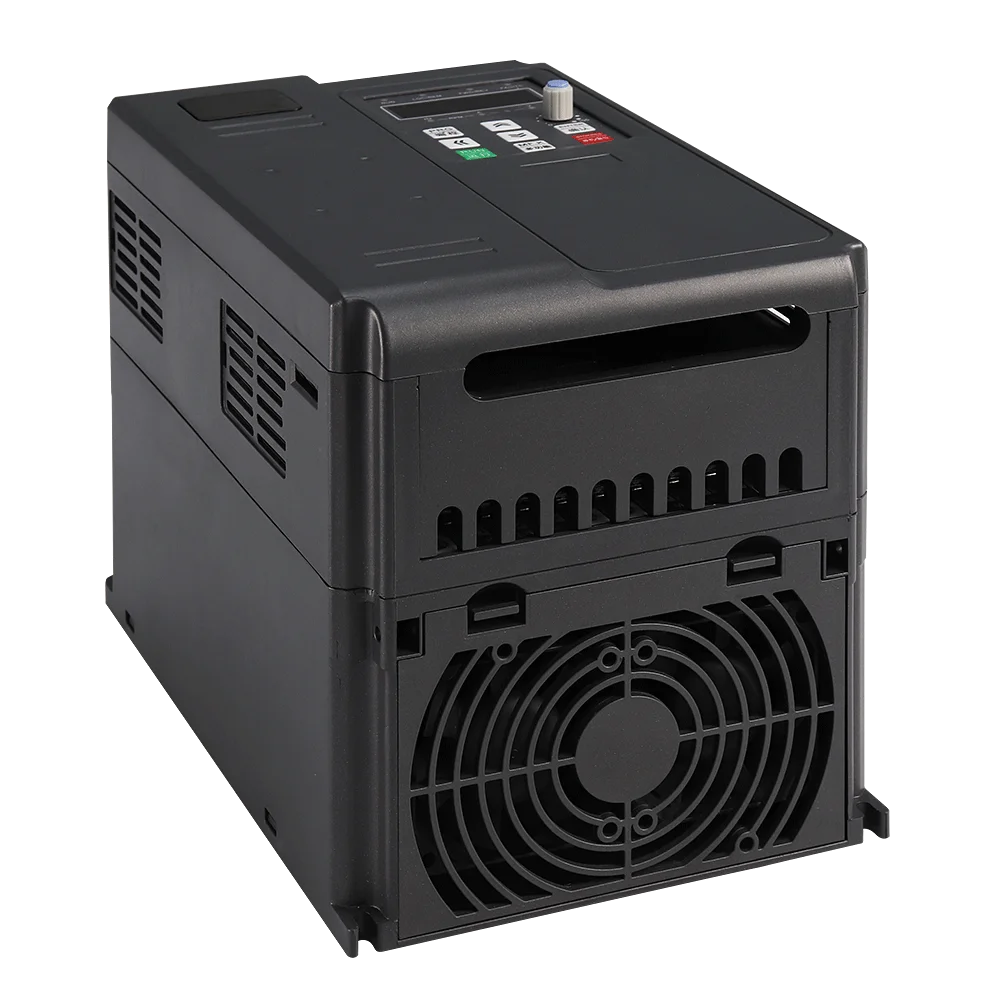

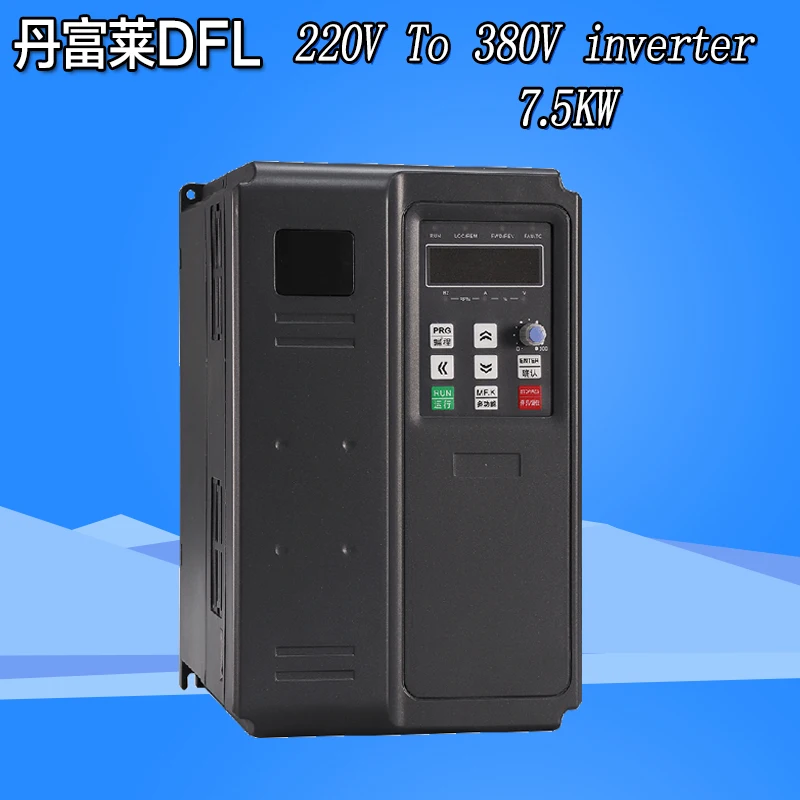

VFD Variable Frequency Drive Single-Phase 220v Input to 3-Phase 380v Output Inverter Frequency Converter

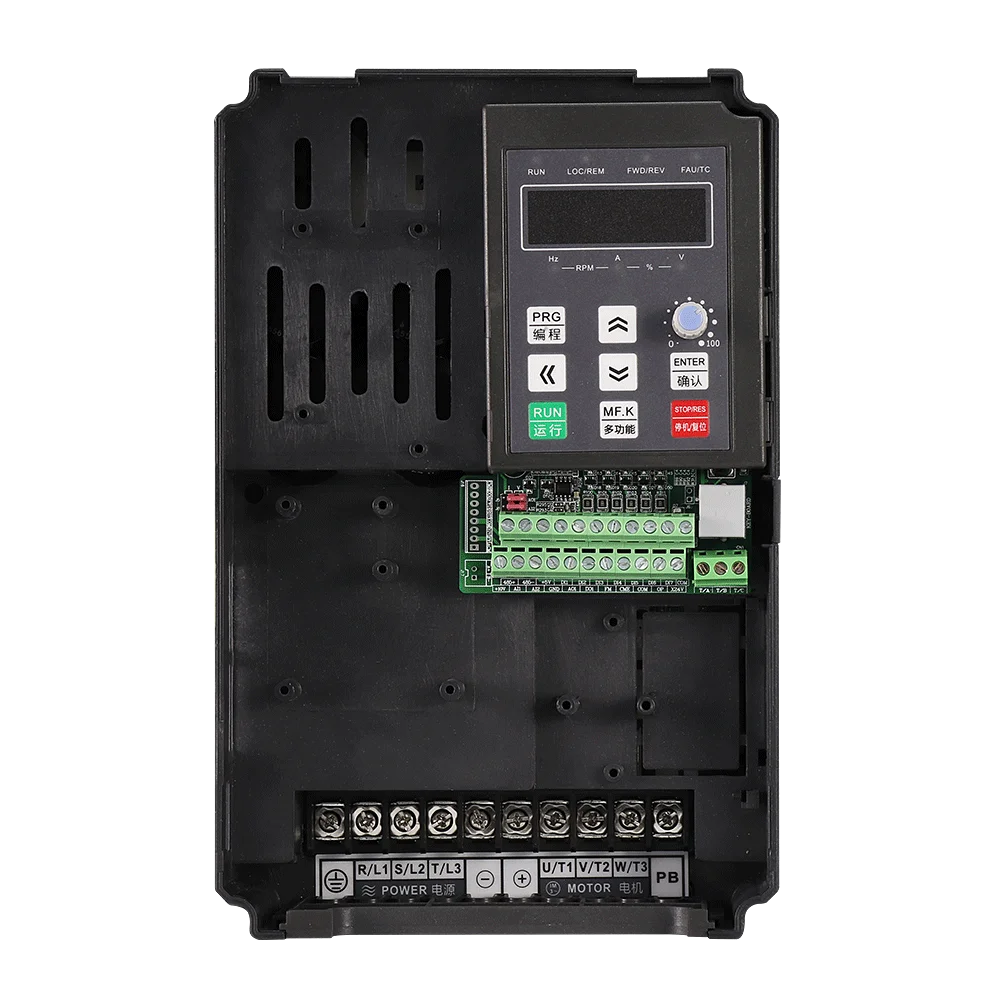

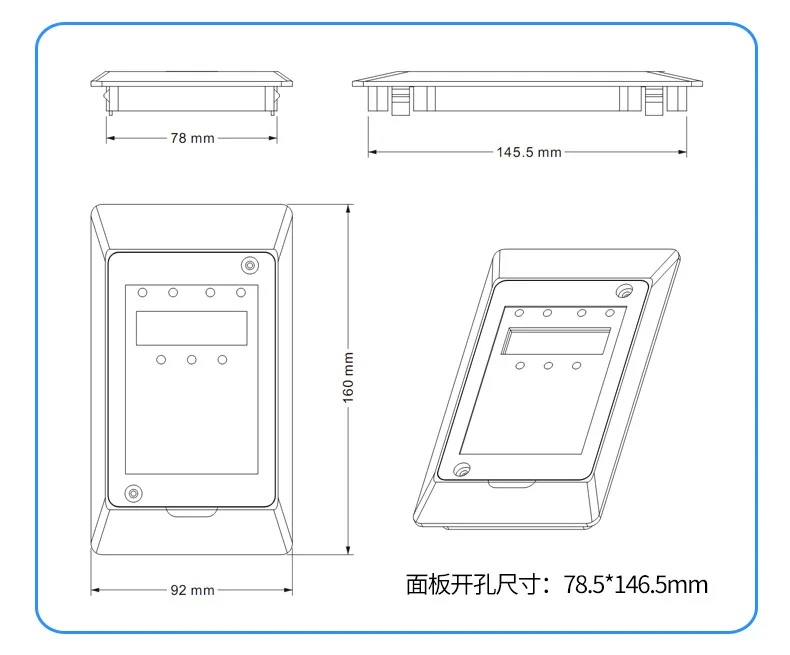

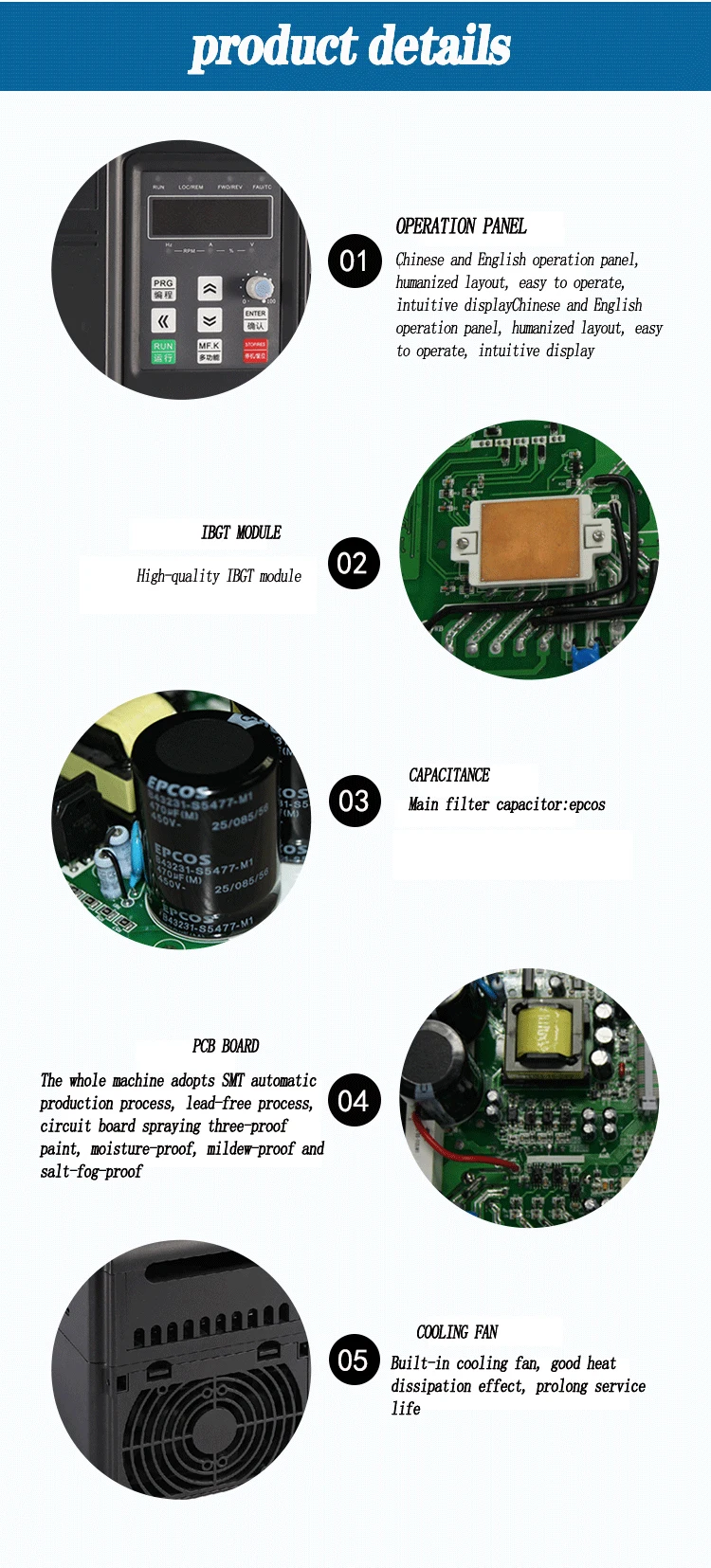

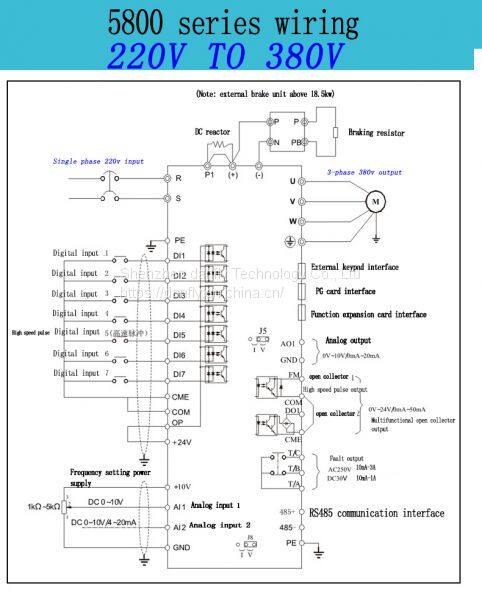

Note: The selection of this inverter must be twice the power of the motor. For example, if your motor power is 1kw, then you must choose a 2kw inverter. It is suitable for some occasions where there is no 380v electricity but a 380v motor is needed. This inverter can realize 220v input and 380v output Product introduction: 1. Input power supply 1PH 220V (±25%); output: 3PH 0-380V 2. Dedicated DSP motor main control IC, voltage vector control, pure SVPWM output 3. The IPM module is the core component of the power drive with built-in reliable protections such as over-current, short-circuit and over-temperature; the failure rate is extremely low 4. Five-digit digital tube display, five status indicators (display for frequency, voltage, speed, counter, forward and reverse status, fault, etc.) 5. The output frequency range is 0.1-400HZ, accuracy: 0.1HZ 6. Analog input 0-5VDC, 0-10VDC, 0/4-20mA 7. Digital operation panel can be connected with extension cord, and parameters can be copied freely 8. X5, X6 multi-function input terminals can be set with multiple start and stop methods: two-wire A, B mode, three-wire A, B mode 9. X1-X4 multi-function input terminals can be combined with 16 speeds, 16-segment acceleration and deceleration time (0.1-6500 seconds) can be set independently 10. The user can set the V/F curve arbitrarily 11. Multi-function relay output, realize relay output in various states such as running, frequency reaching, external abnormality 12. Instantaneous power failure restart speed tracking function, automatic voltage stabilization function, DC brake, PLC program control and other functions 13. The drafting function is suitable for unwinding and unwinding, keeping the linear speed constant within a certain accuracy, etc. 14. Perfect protection function: overvoltage, undervoltage, overload, overtemperature, output short circuit protection 15. Parameter password protection, limited use time, automatic parameter recovery The above functions may be different for different batches, please contact customer service to confirm the function requirements
