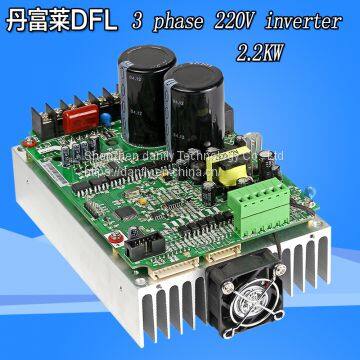

Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5

Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 thumbnail-1
Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 thumbnail-2
Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 thumbnail-3
Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 thumbnail-4
Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 thumbnail-5
Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 photo-1
Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 photo-2
Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 photo-3
Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 photo-4
Frequency Converter Board Without Enclosure 220v 3 Phase Motor Speed Controller 1.5KAV Simple Bare Board Inverter DFL-HJ06-1R5 photo-5
US$ 59 - 69 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DFL
Place of Origin:
China
Model Number:
DFL-HJ06-1R5
Contact Supplier Request Quote Chat Now
Shenzhen Danfly Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DFL
Place of Origin China
Model Number DFL-HJ06-1R5
Type DC/AC Inverters

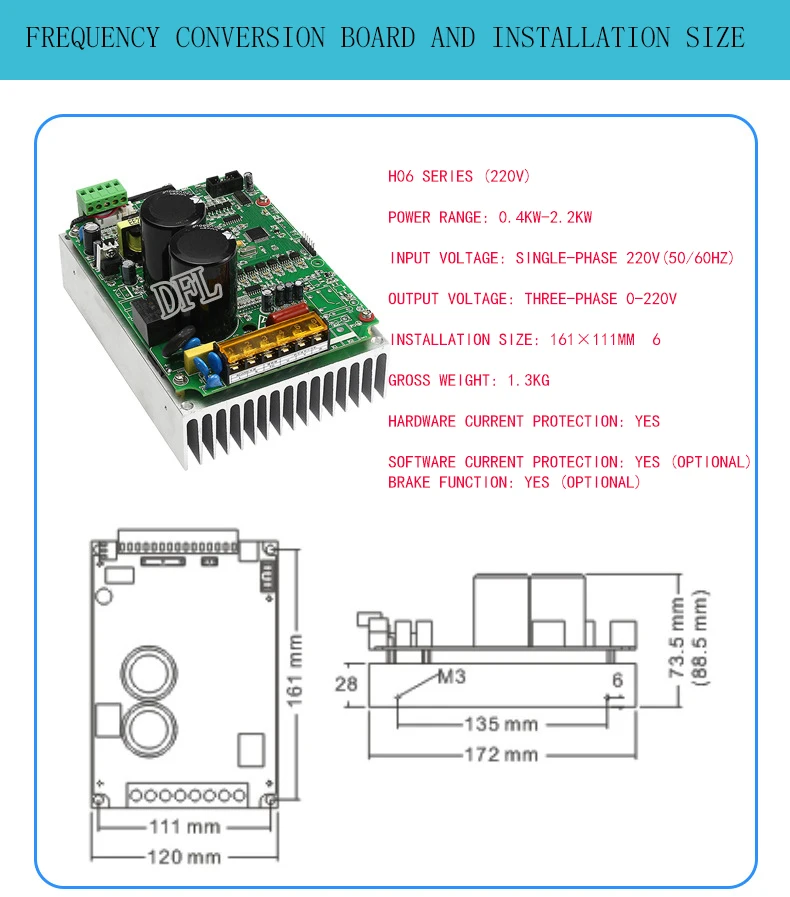

Size 171*121*85MM
Weight 1.5kg
Output Power 1 - 200KW
Output Type Triple
Output Current 8A
Output Frequency 0-400hz
Output Voltage 220v
Input Voltage 220v

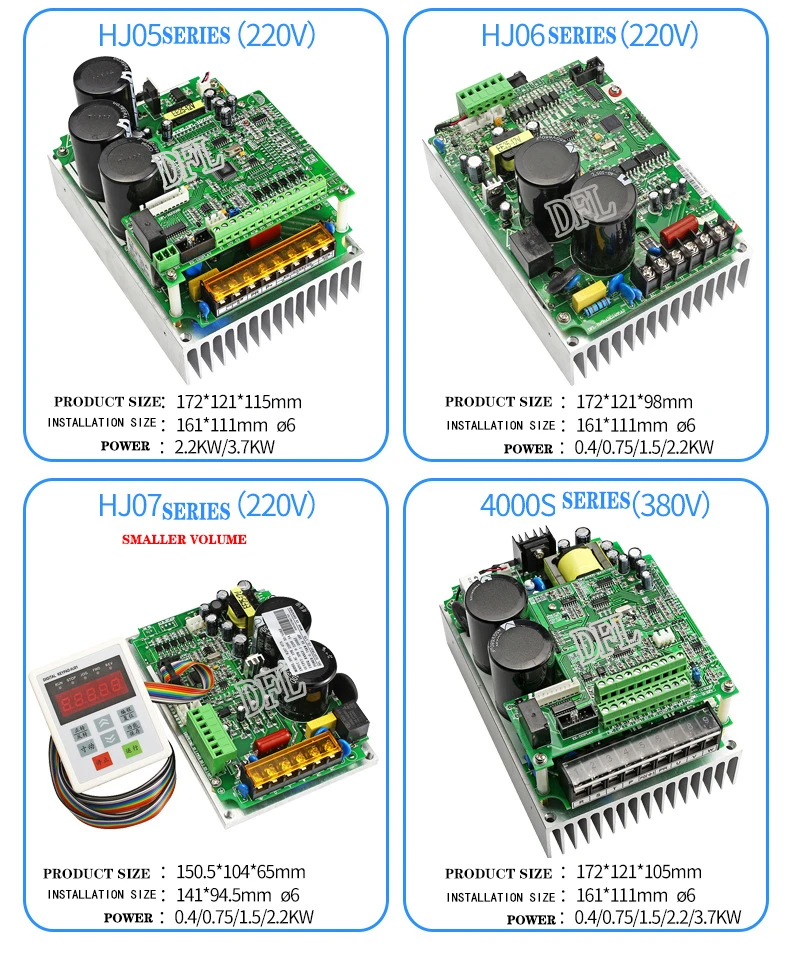

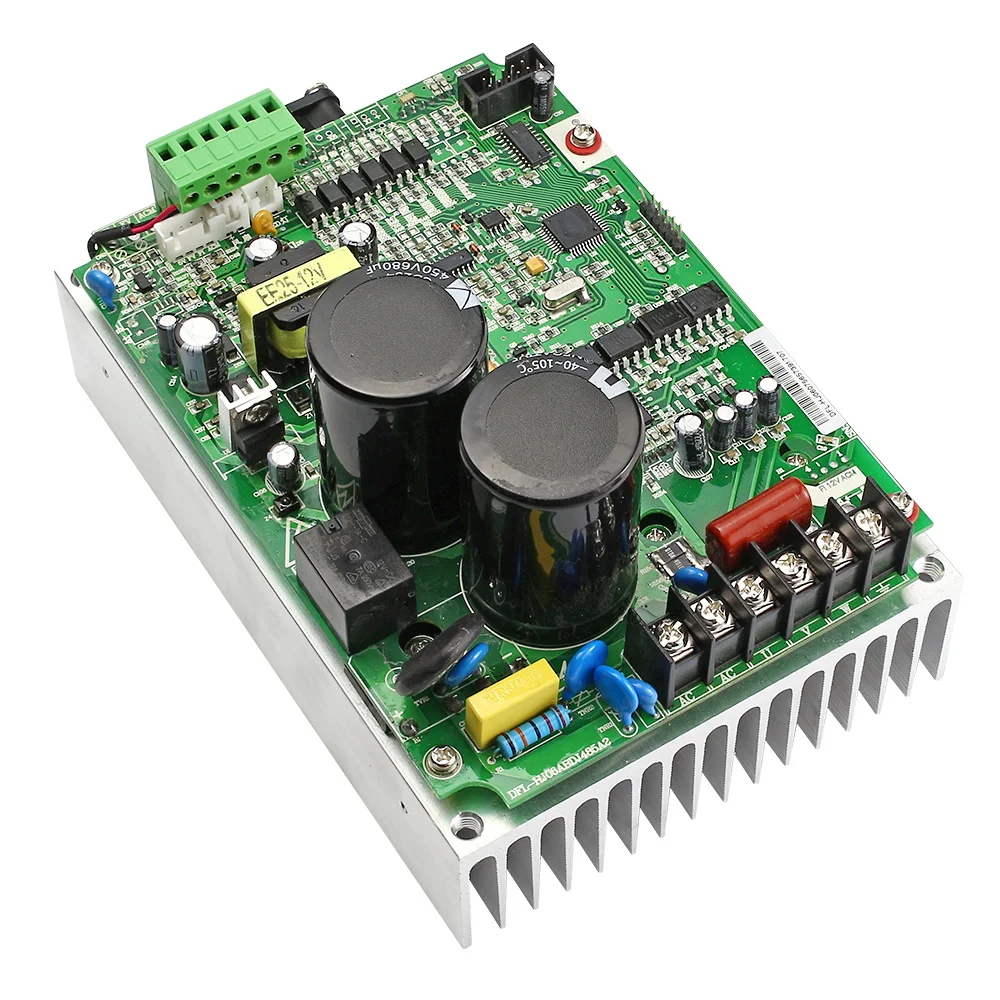

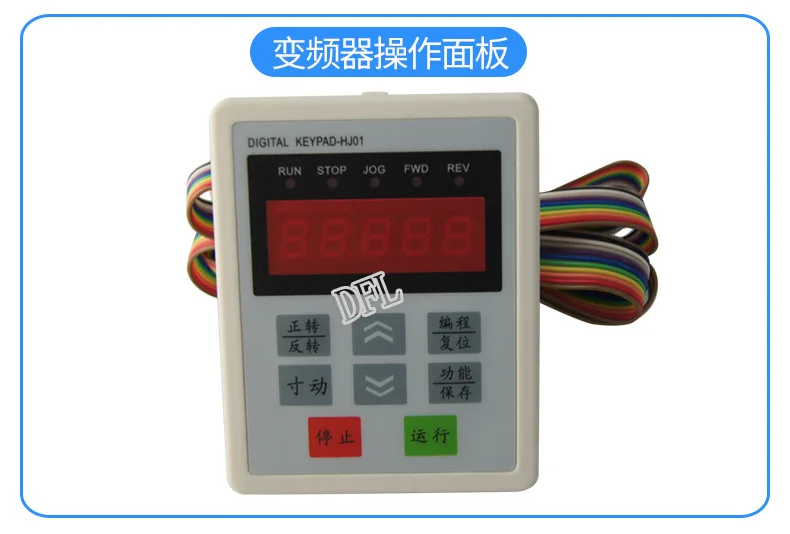

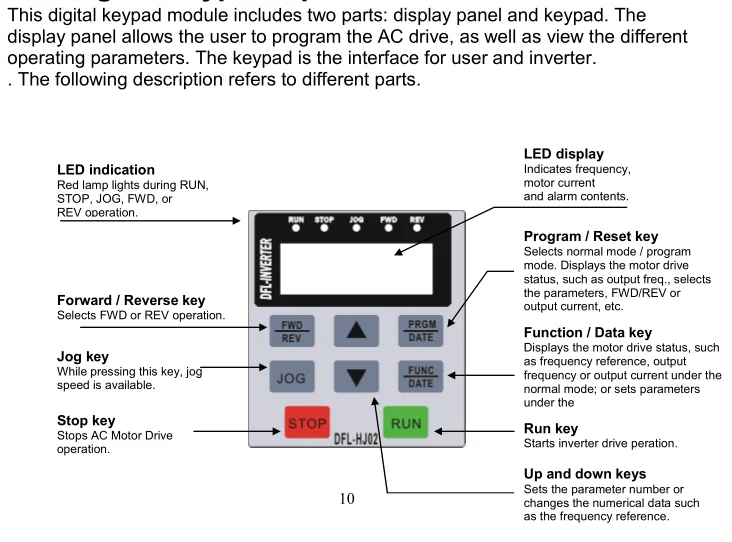

Brand: DFL Model: DFL-HJ06 Power rating: 0.4kw, 0.75kw, 1.5kw, 2.2kw DFL-HJ06 bare-board simple inverter is a simple and economical bare-board general-purpose inverter developed by Shenzhen Danfuli Technology Co., Ltd. according to the needs of our customers. Now it is supporting the majority of small and medium-sized machinery and equipment manufacturers. Our products are praised by customers for their high cost performance, simple and practical, low defect rate, and good after-sales service. Characteristics of bare metal inverter parameters: 1. Input power single-phase AC 220V (±25%); 2. Dedicated DSP motor main control IC, voltage vector control, pure SVPWM output; 3. The IPM module is the core component of the power drive, with built-in reliable protections such as over-current, short-circuit, and over-temperature, with extremely low failure rate; 4. The output frequency range is 0.1-400HZ, accuracy: 0.1HZ; 5. Analog input 0-5VDC, 0-10VDC, 0/4-20mA; 6. Digital operation panel can be connected with extension cord, and parameters can be set freely; 7. The user can set the V/F curve arbitrarily; Features of bare metal inverter: 1. Multi-function relay output, realize the relay output in various states such as running, frequency reaching, external abnormality, etc.; 2. Automatic voltage stabilization function, DC braking, instantaneous power failure restart speed tracking function; PLC program control and other functions; 3. Complete protection functions: overvoltage, undervoltage, overload, overtemperature, and output short circuit protection; 4. Parameter password protection, limited use time, parameter recovery; 5. The equipment-specific inverter can be customized according to user requirements.

  • For more information, please contact，

  • Email:cmwrl@163.com

  • Website: /



Product Tags: Inverter Board , Frequency Regulator 220v 3 Phase , 1.5KW Inverter Board
