Home > Electrical & Electronics > Inverter > Power Inverter > Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75

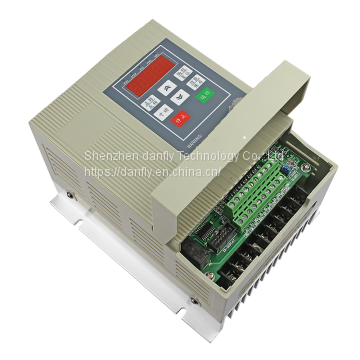

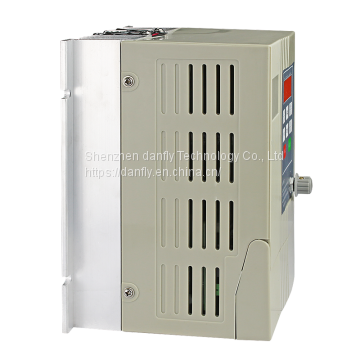

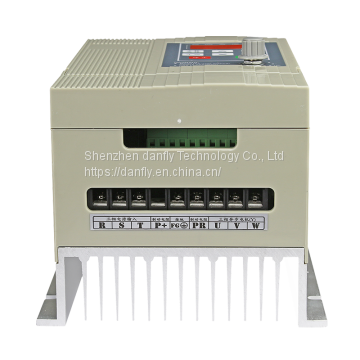

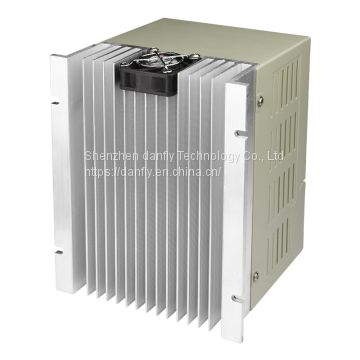

Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75

Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 thumbnail-1
Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 thumbnail-2
Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 thumbnail-3
Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 thumbnail-4
Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 thumbnail-5
Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 photo-1
Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 photo-2
Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 photo-3
Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 photo-4
Frequency Coinverter 3 Phase 380v Inverter for Motor Speed Controller 0.75KW DFL4000H-0R75 photo-5
US$ 69 - 79 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DFL
Place of Origin:
China
Model Number:
DFL4000H-0R75
Contact Supplier Request Quote Chat Now
Shenzhen Danfly Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DFL
Place of Origin China
Model Number DFL4000H-0R75
Type DC/AC Inverters
Size 178*146*135mm
Weight 2kg
Output Power 500 - 1000W
Output Type Triple
Output Current 3.5
Output Frequency 0-400hz
Output Voltage 380v
Input Voltage 380v

Features of 380V DFL4000H series inverter:

  1. Input power supply 1PH 380V (±15%); output: 3PH 0-380V 2. Dedicated DSP motor main control IC, voltage vector control, pure SVPWM output 3. The IPM module is the core component of the power drive with built-in reliable protections such as over-current, short-circuit and over-temperature; the failure rate is extremely low 4. Five-digit digital tube display, five status indicators (display for frequency, voltage, speed, counter, forward and reverse status, fault, etc.) 5. The output frequency range is 0.1-400HZ, accuracy: 0.1HZ 6. Analog input 0-5VDC, 0-10VDC, 0/4-20mA 7. Digital operation panel can be connected with extension cord, and parameters can be copied freely 8. X5, X6 multi-function input terminals can be set with multiple start and stop modes: two-wire A, B mode, three-wire A, B mode 9. X1-X4 multi-function input terminals can be combined with 16 speeds, 16-segment acceleration and deceleration time (0.1-6500 seconds) can be set independently 10. The user can set the V/F curve arbitrarily 11. Multi-function relay output, realize the relay output in various states such as operation, frequency arrival, external abnormality, etc. 12. Instantaneous power failure restart speed tracking function, automatic voltage stabilization function, DC brake, PLC program control and other functions 13. The drafting function is suitable for unwinding and unwinding, keeping the linear speed constant within a certain accuracy, etc. 14. Perfect protection function: overvoltage, undervoltage, overload, overtemperature, output short circuit protection 15. Parameter password protection, limited use time, automatic parameter recovery

  2. For more information, please contact，

  3. Email:cmwrl@163.com

  4. Website: /


Product Tags: Frequency coinverter 3 Phase 380v , 3 Phase 380v Inverter , 380v Motor Speed Controlle
