AC Frequency converter 50hz 60 hz Single phase 220 V output Water pump inverter

Product Name: single input single output inverter

Specification: 220 V 0.4kw-2.2kw

Product remarks:

Product category: single in and single out inverter series

Product description of single input and single output inverter

Dfl200s series universal frequency converter is a mini type universal frequency converter designed and produced by our company according to the requirements of customers: simple operation, convenient and durable, generous appearance and high cost performance.

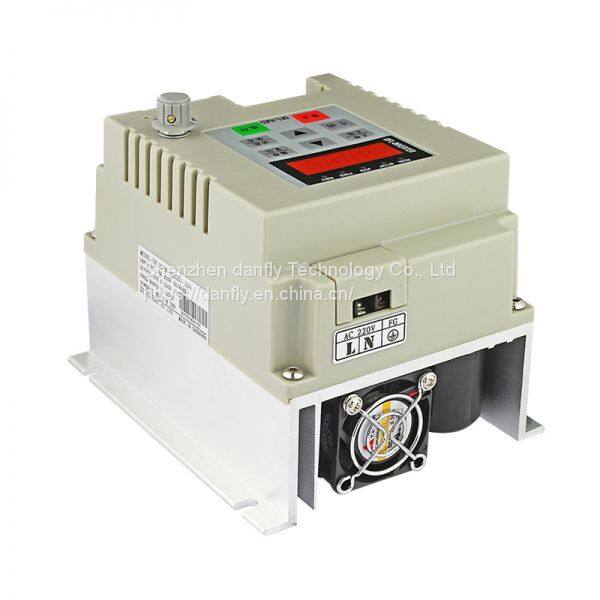

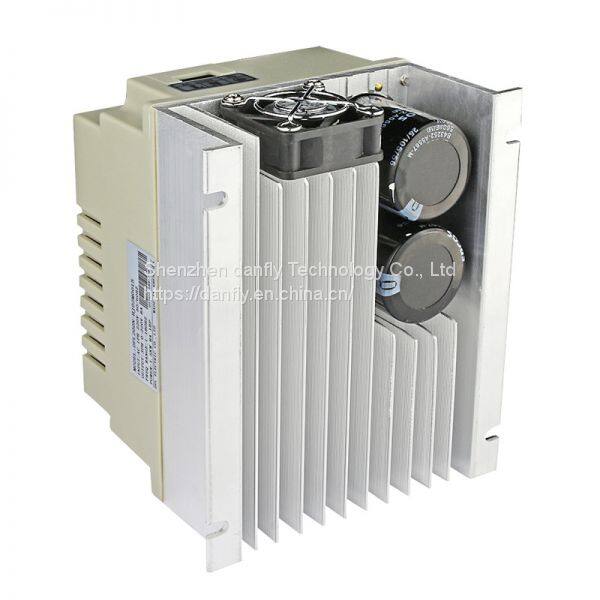

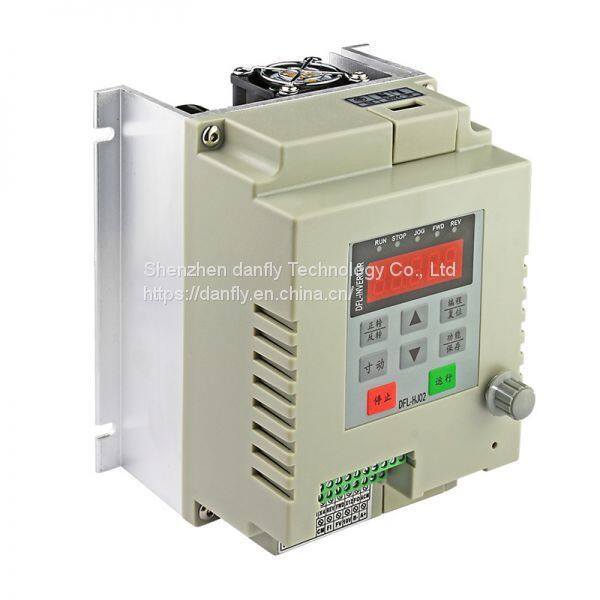

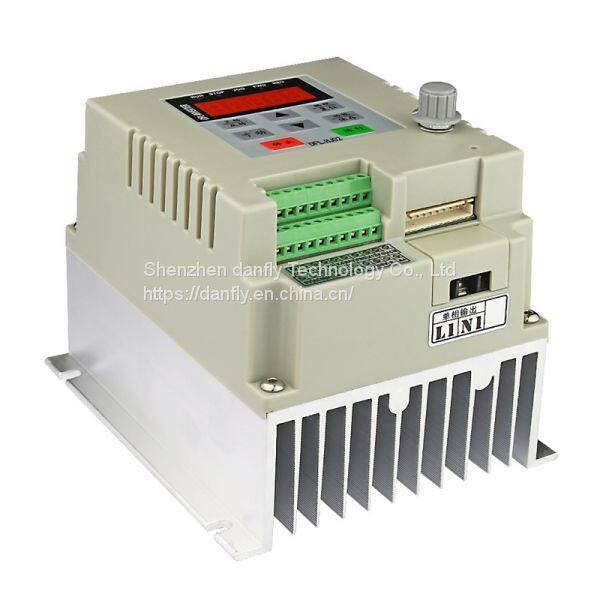

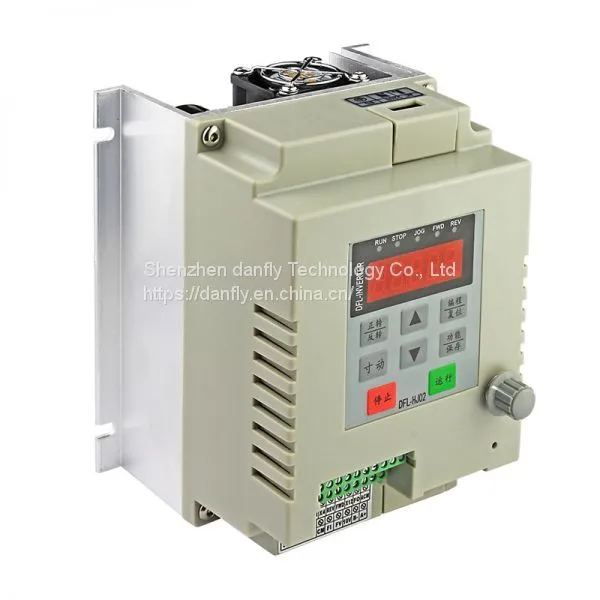

Dfl200s series products are square in appearance, small in size and easy to install. The power input and motor output are separated and independent. They are suitable for internal and external installation. There is no display panel on dfl200s-b machine. When the parameters need to be modified, the external independent display panel can be set to prevent the parameters of frequency converter from being changed randomly or unintentionally. Dfl200s series frequency converter has perfect function, which is suitable for general or special frequency converter of various mechanical equipment; dfl200s is highly praised by customers for its high cost performance, simple and practical, stable and reliable, and good after-sales service. Now it has been matched with the majority of small and medium-sized machinery and equipment manufacturers.

Main technical parameters of single in and single out converter:

1. Input power single-phase AC 220 V (160 v-250 V); output: single-phase AC 0-220 V;

2. Power level: 0.4KW, 0.75KW, 1.5KW, 2.2kW;

3. Special motor control IC, voltage vector control, pure SVPWM output;

4. IPM module is the core component of power drive, with built-in over-current, short-circuit, over temperature and other reliable protection;

5. Five digit digital tube display, five status indicator lights (display frequency, voltage, speed, counter, positive and reverse status, fault, etc.);

6. Output frequency range: 0.1-200hz, accuracy: 0.1Hz;

7. Analog input 0-5vdc, 0-10vdc, 0 / 4-20mA;

8. External extension line digital operation panel can be connected, and parameters can be copied freely;

9. The X5 and X6 multi-function input terminals can be set with a variety of start-up and stop modes: two-wire A and B mode, three-wire A and B mode;

10. X1-x4 multi-function input terminal can be combined with 16 section speed, and 16 section acceleration and deceleration time can be set independently;

11. Set V / F curve arbitrarily;

12. Multi function relay output, which can realize the relay output in various states such as operation, frequency arrival, external abnormality, etc

13. Automatic voltage stabilizing function, DC brake, speed tracking function of instant stop and restart, PLC program control, etc;

14. Perfect protection function: over voltage, under voltage, overload, over temperature, output short circuit protection;

15. Parameter password protection, limiting the use time and parameter recovery;

16. Special frequency converter can be customized according to user requirements;
