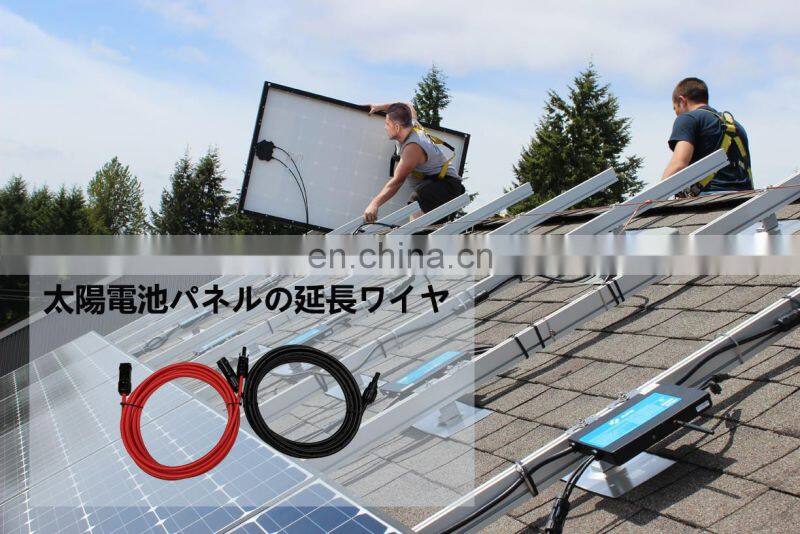

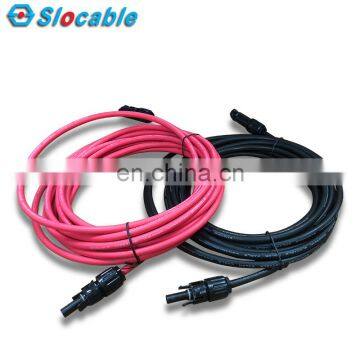

Slocable TUV approved UV Resistance 1m Premade PV Power Cable with MC Wiring Harness solar panel extension cable

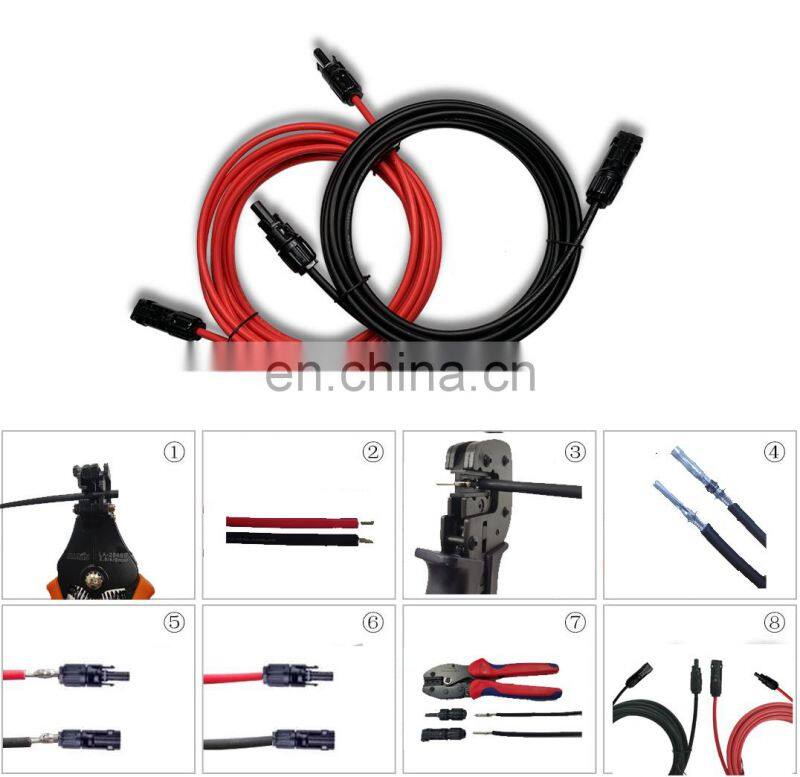

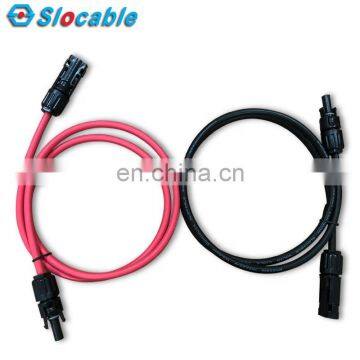

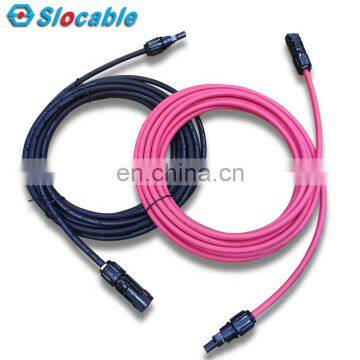

1. 1m,2m,3m,5m,10m...... Premade PV Power Cable with MC Wiring Harness solar panel extension cable, which saves you from having to crimp one on your own.
2. We also do one end of this cable is a crimped PV MC plug or socket , which saves you from having to crimp one on your own.

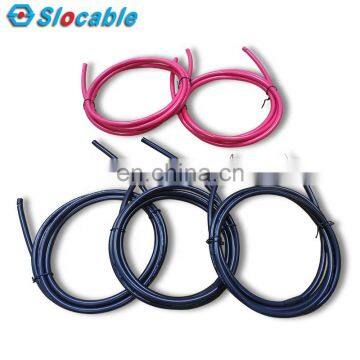

The other end is a bare tinned wire to connect to your solar controller or other solar hardware.
3. We also do 2in1, 3in1, 4in1, 5in1 and other customized cables assemblies,
Please consult us directly if necessary.

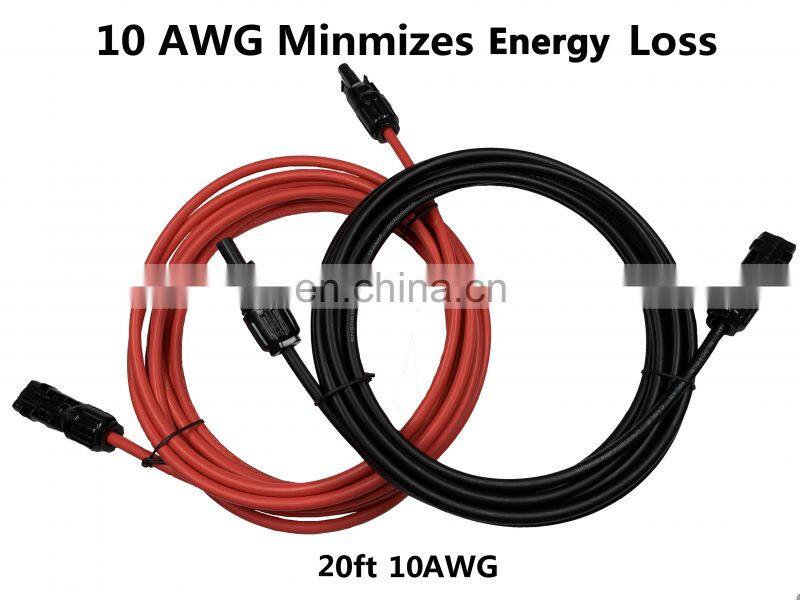

-PV Power Cable: 2.5mm2 (14AWG) cable; - 4mm2 (12AWG) cable;- 6mm2 (10AWG) cable; - 10mm2 (8AWG) cable
|

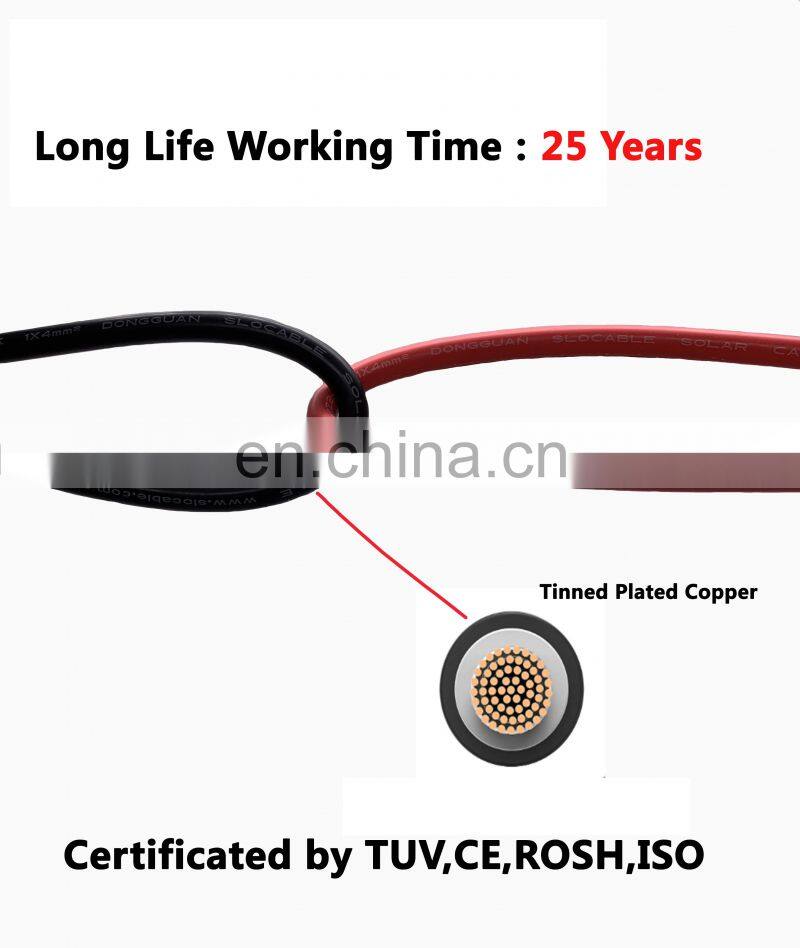

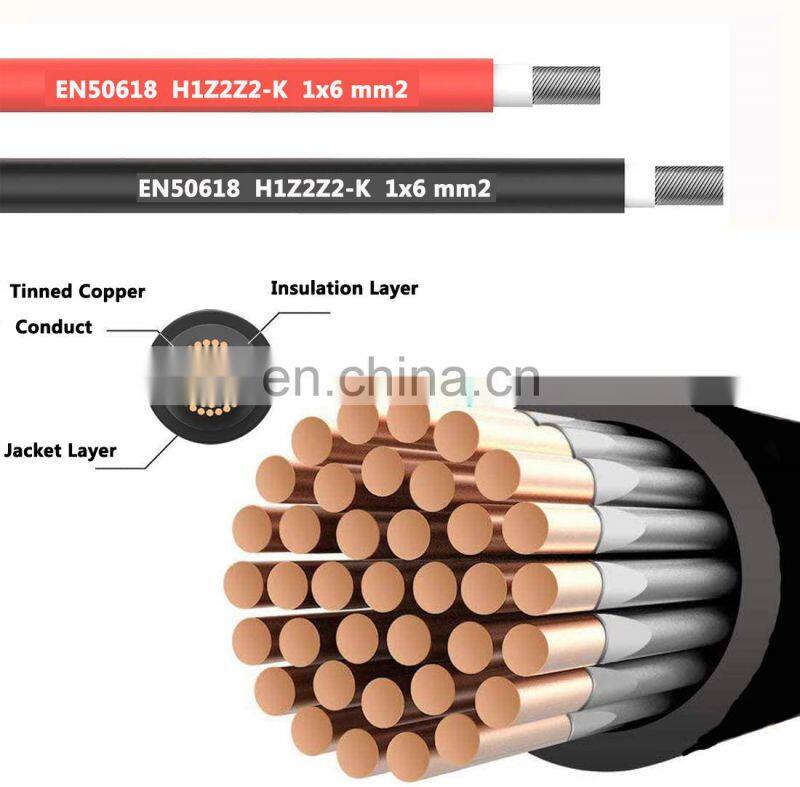

Wire: Copper, Class 5, tinned |
Temperature range: -40~+90℃ |
|

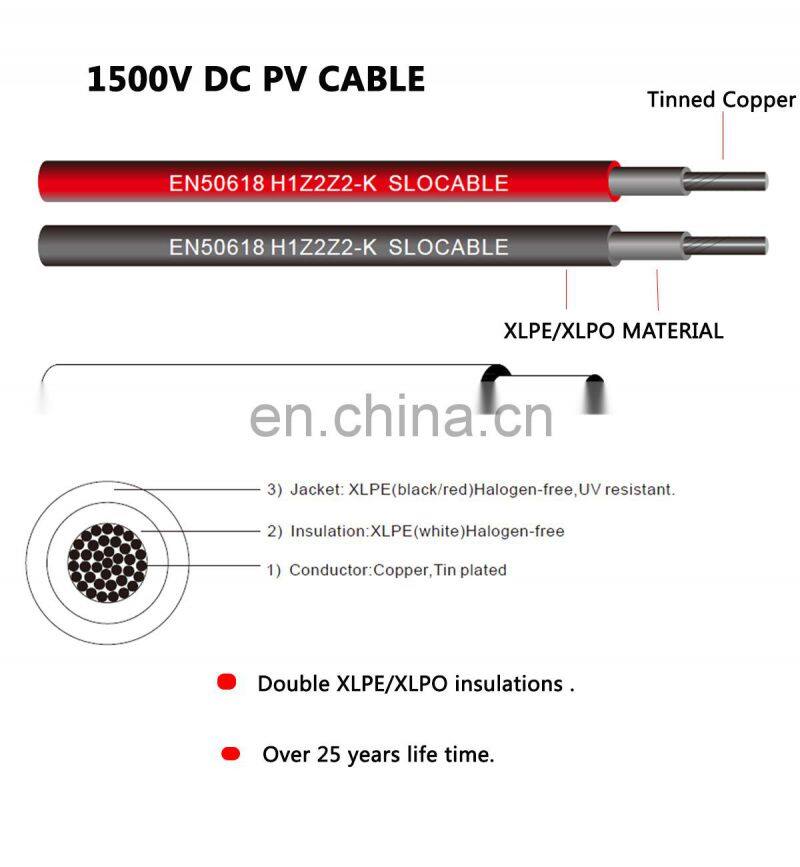

Insulation material:XLPE |

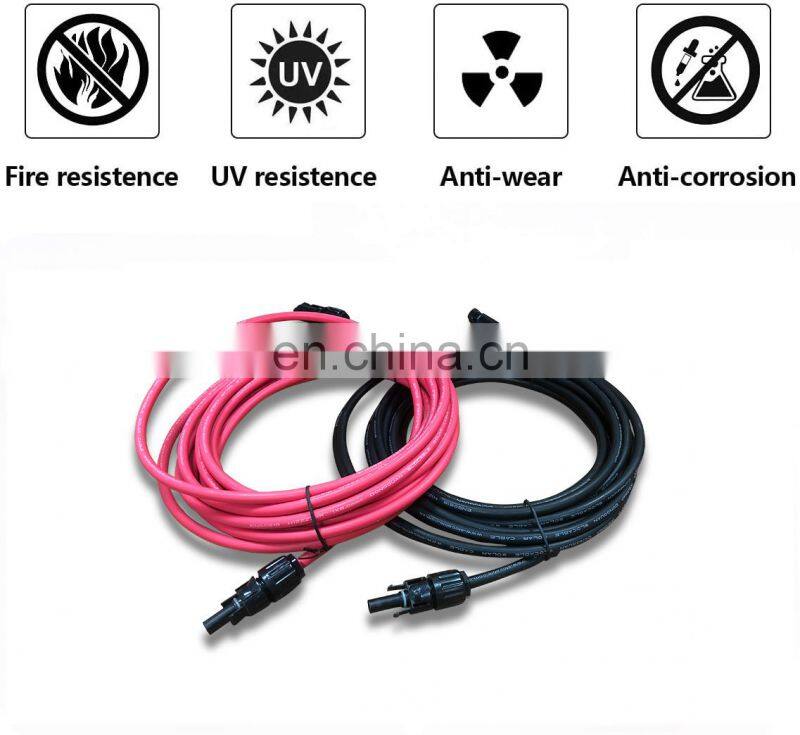

High wear and abrasion resistance |
|
Double XLPE insulation |
Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
|
Halogen-free |
Smallest Permissible Bending Radius: 5 x D |
|
Microbe-resistance |
Colours: Black or Red |

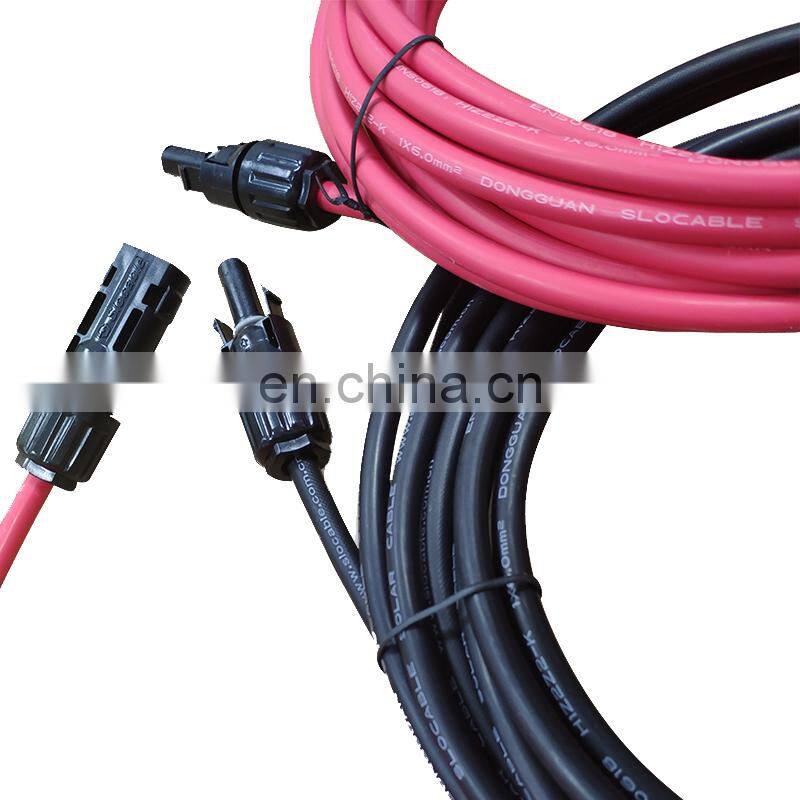

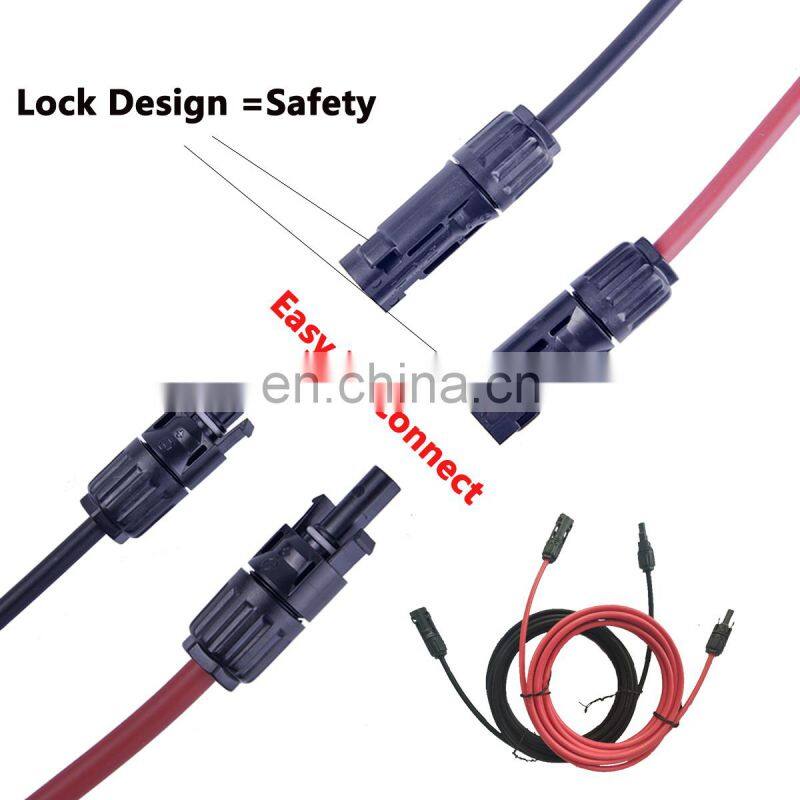

Connectors
| PV Terminal Connector Technical Data | |||

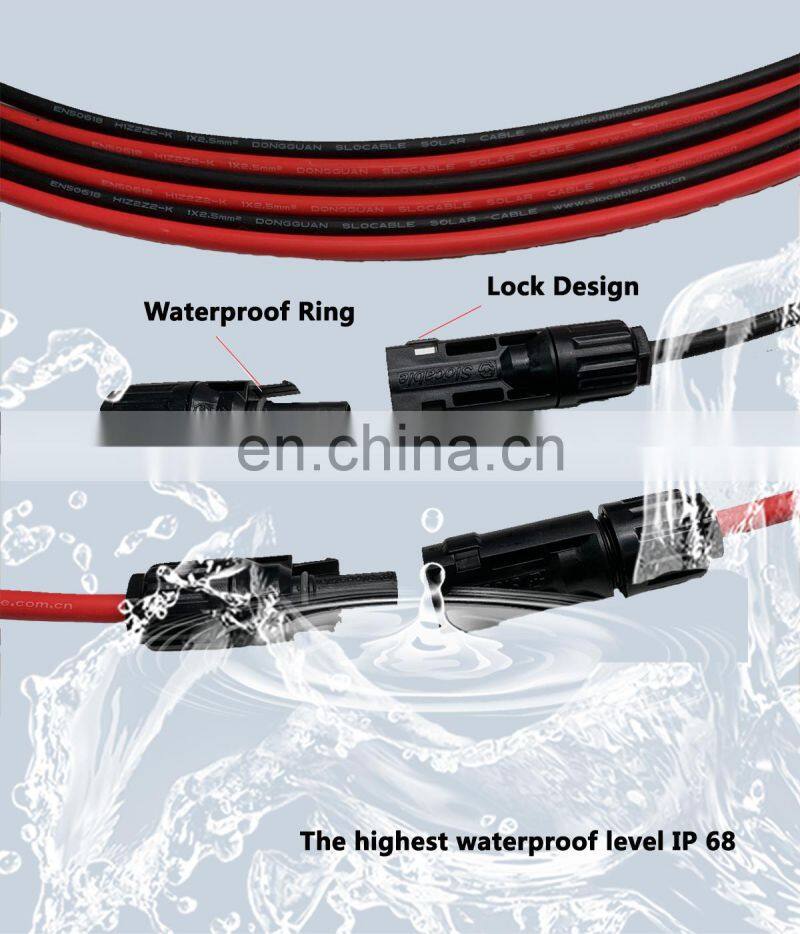

| Rated Current | 50A | Degree of Protection | IP2*/IP68 |
| Rated Voltage | 1500V DC | Flame Class | UL94-V0 |
| Test Voltage | 6000V(50Hz,1min) | Safety Class | II |
| Overvoltage Category | CATIII | Suitable Cable |
OD 4.5-8.5mm (2.5-10.0mm²) |
| Contact Resistance | <0.5mΩ | Temperature Range | -40℃~+85℃ |
| Contact Material | Copper, tin plated | Insulation Material | PPO |
