Slocable UL TUV ISO 1x6mm2 Solar Cable 10AWG PV Cable 1000V 1500V
Detail Information for 10AWG PV Cable
|
Technical Data of 10AWG PV Cable
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| PV-1x6mm2 | 6.0mm2 | 81x φ0.3mm | 3.3mm | 3.52 Ω/km | 7.2mm | 1500V/1000V | 70A |
(We also produce single core of 2.5mm2, 4mm2 and 10mm2, as well as dual cores,
please consult me directly if necessary)
Wire: Copper (Class 5, tinned) |
UV resistance |
Insulation material: XLPE |
High wear and abrasion resistance |
Double XLPE insulation |
Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
Halogen-free |
Smallest permissible Bending Radius: 5 x D |
High resistance against oil, greases, oxygen and ozone |
Temperature range: -40℃ ~ +90℃ |
Microde-resistant |
Colours: Black & Red |

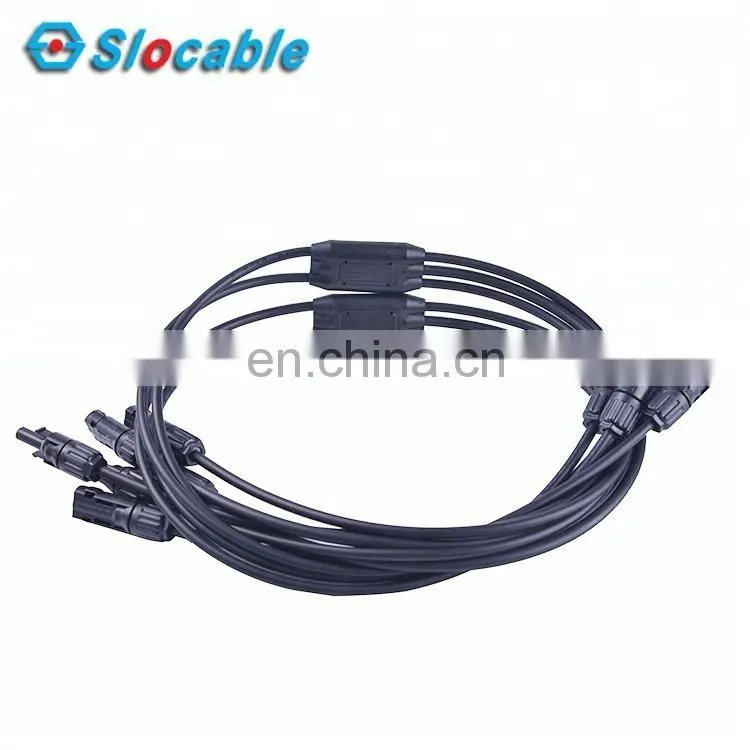

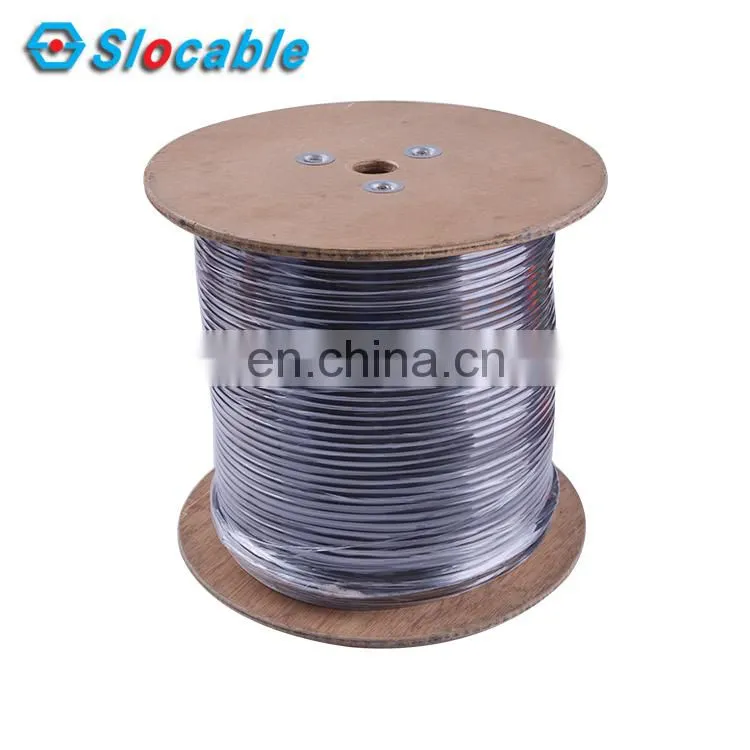

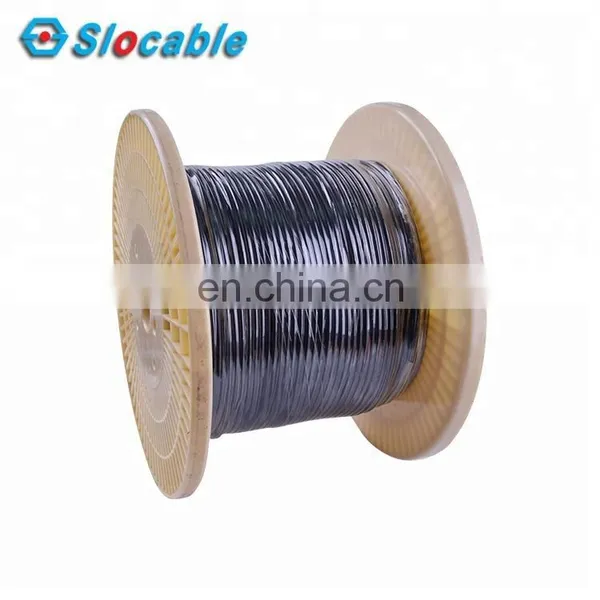

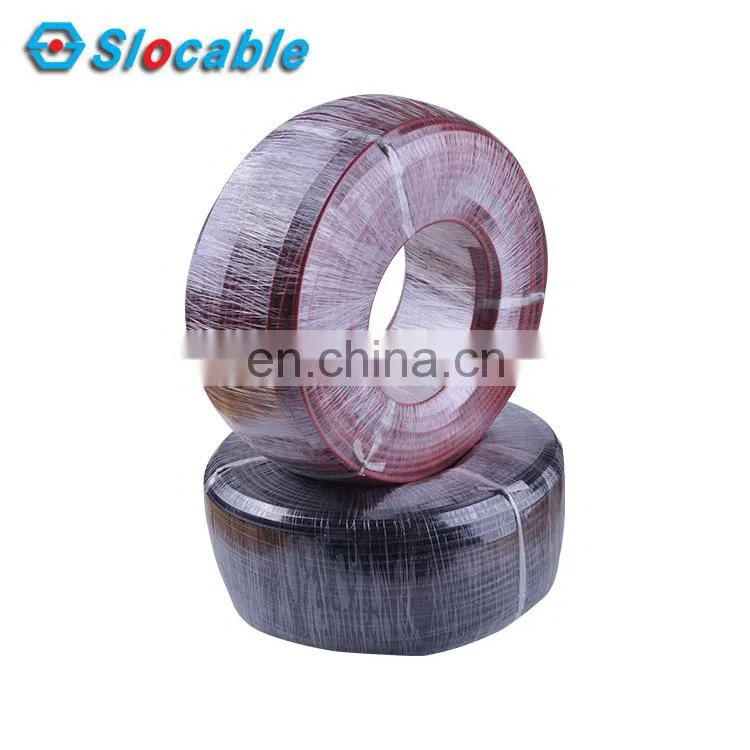

Pictures of Solar Cable 6mm
Click the following picture to get more Slocable products
Certificates
Our Company and Factory
Packing and Shipping
Our Exhibition
Successful Cases
IF any inquiry, please contact me!
