Dongguan Slocable Photovoltaic Technology Co., Ltd.: Main products: Solar PV cable, Solar PV connector, Solar PV fuse holder, Solar PV cable assembly

Home > Products > Solar PV cable > Slocable High Voltage 1000V 14AWG 2.5mm2 Solar Cabl PV Cable

Slocable High Voltage 1000V 14AWG 2.5mm2 Solar Cabl PV Cable

Name: Slocable High Voltage 1000V 14AWG 2.5mm2 Solar Cabl PV Cable
Brand: SLOCABLE
Availability: InStock

FOB Price

US$ 0.29 - 0.39 / Meter

10 Meters(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SLOCABLE	Place of Origin	Guangdong, China
Model Number	CA102B-PE solar cable	Type	Insulated
Conductor Material	Copper	Conductor Type	Stranded

Product Description

Slocable High Voltage 1000V 14AWG 2.5mm2 Solar Cabl PV Cable

solar cable 6mm

Advantages for 14AWG PV Cable UL

Dual wall insulation. Electron beam cross-linked
Excellent resistance to U.V., water, oil, greases, oxygen, ozone and general weathering
Excellent resistance to abrasion
Halogen free, flame retardant, low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
CE and TUV approved

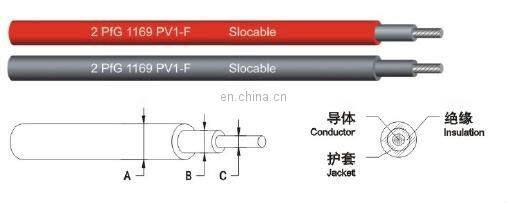

Technical Data of 14AWG PV Cable UL

Type

Cross Section

Conductor

Diameter

Conductor Resistance

Outer Diameter

Rated Voltage

Rated Current

Strand Design

mm²

Ω/km

V DC

NO.x φ(mm)

PV-1*2.5mm²

2.5

2.0

8.06

5.3

1000

48* φ0.25

(We also produce single core of 4mm2, 6mm2 and 10mm2 solar cable, as well as dual core,

please consult me directly if necessary)

Wire: Copper (Class 5, tinned)	UV resistance
Insulation material: XLPE	High wear and abrasion resistance
Double insulated	Flame test according to: DIN EN 50265-2-1 UL1571(VW-1)
Halogen-free	Smallest permissible Bending Radius: 5 x D
High resistance against oil, greases, oxygen and ozone	Temperature range: -40~+85℃
Microbe-resistant	Colours: Black, Red

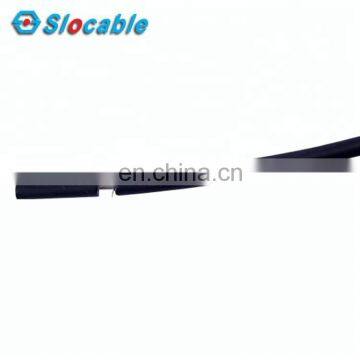

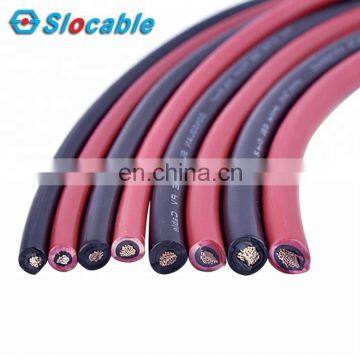

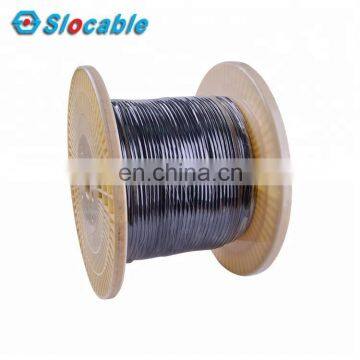

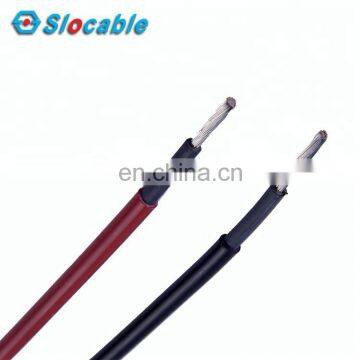

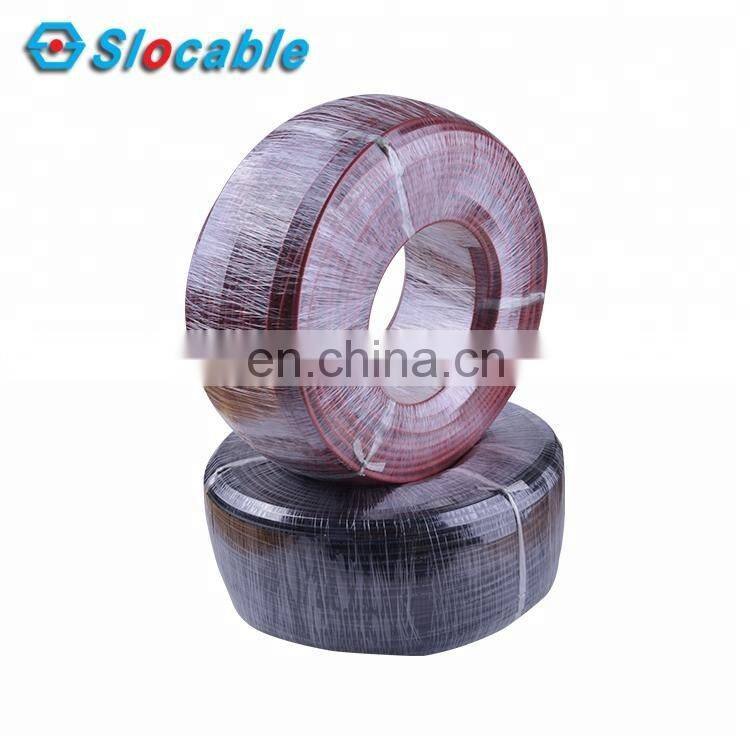

Pictures of 14AWG PV Cable UL

Certificates

Our Factory

Our Exhibition

Packing and Shipping

Successful Cases of PV Connection System Application

IF any inquiry, don't hesitate to contact me!
