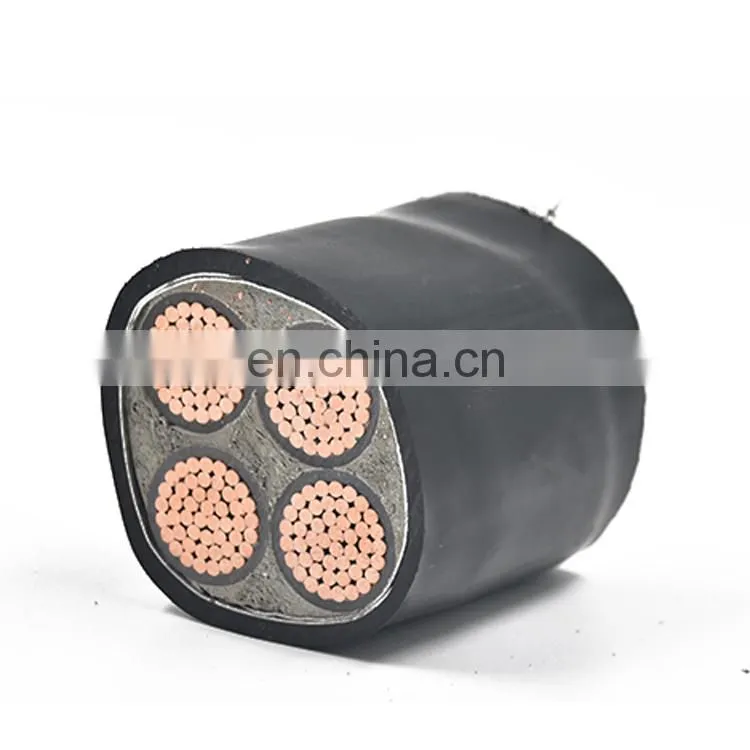

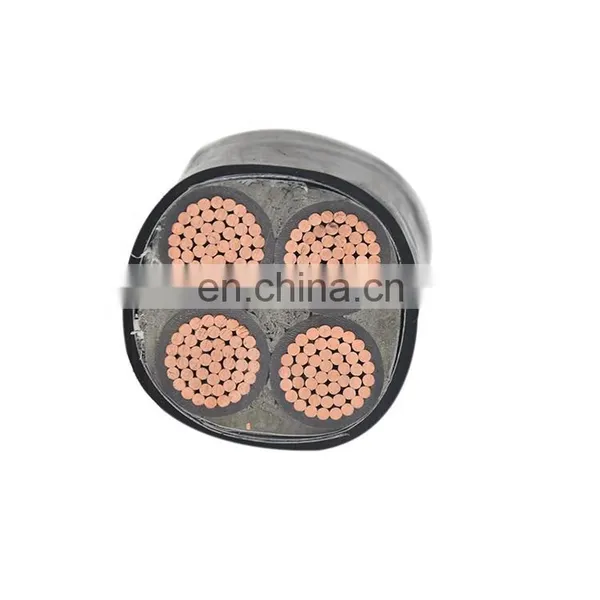

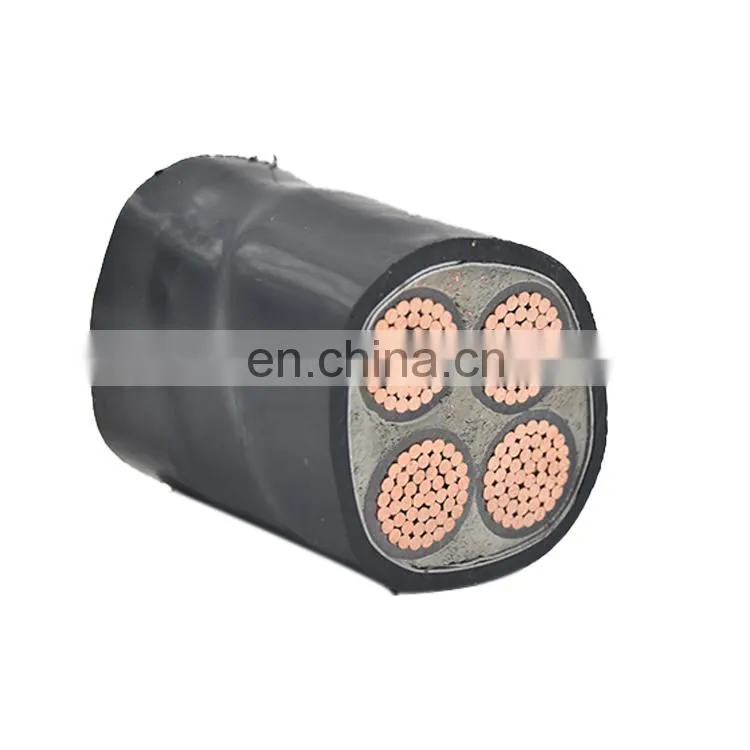

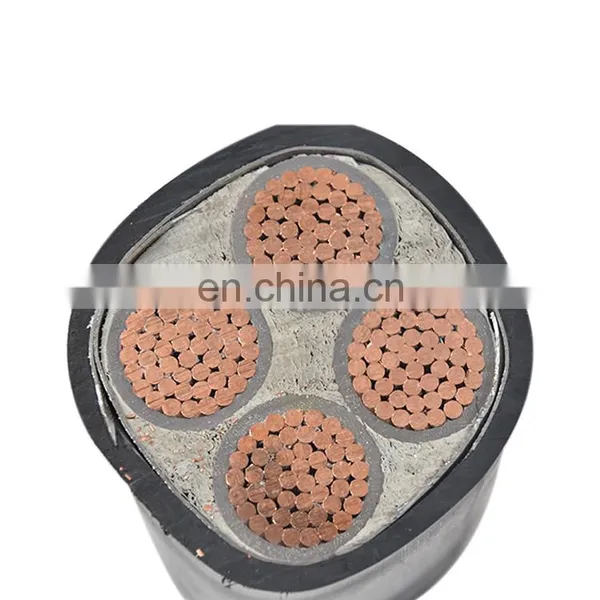

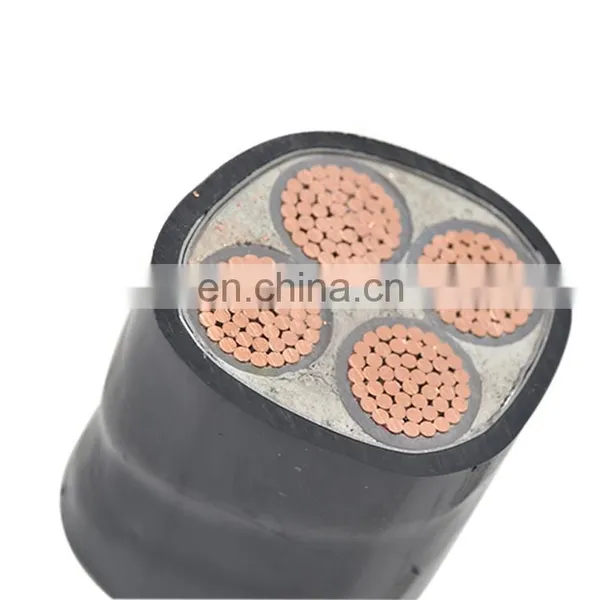

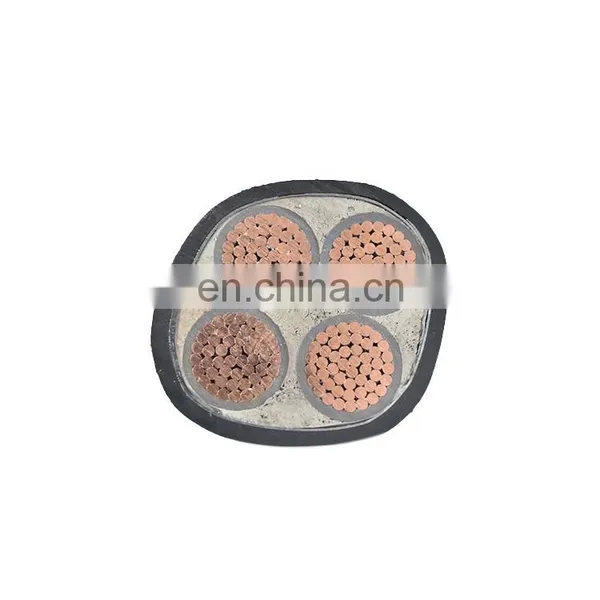

Supply 4*240 sizes protector electrical power wire cable
|
Conductor nominal section (mm2) |
Conductor diameter (mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Approximate outer diameter of cable (mm) |
Approximate weight of cable (kg/km) |
Maximum DC resistance of 20 ° C conductor(Ω/km) |
Cable ampacity (A) |
|||||
| YJV22 | YJLV22 | Cu | Al | Soil laying | Air laying | |||||||
| Cu | Al | Cu | Al | |||||||||
| 50 | 8.3 | 10.5 | 3.8 | 88.6 | 8700 | 7820 | 0.727 | 1.20 | 210 | 160 | 210 | 165 |
| 70 | 9.8 | 10.5 | 3.9 | 92.0 | 9690 | 8430 | 0.524 | 0.868 | 225 | 200 | 260 | 205 |
| 95 | 11.5 | 10.5 | 4.1 | 86.3 | 11050 | 9270 | 0.387 | 0.641 | 305 | 240 | 315 | 245 |
| 120 | 12.9 | 10.5 | 4.2 | 99.7 | 12210 | 9970 | 0.268 | 0.443 | 345 | 270 | 360 | 280 |
| 150 | 14.5 | 10.5 | 4.3 | 103.3 | 13560 | 10730 | 0.193 | 0.320 | 390 | 300 | 405 | 315 |
| 185 | 16.0 | 10.5 | 4.4 | 107.0 | 14880 | 11500 | 0.153 | 0.253 | - | - | - | - |
| 240 | 18.3 | 10.5 | 4.6 | 112.5 | 17210 | 12800 | 0.124 | 0.206 | - | - | - | - |
| 300 | 20.5 | 10.5 | 4.7 | 117.7 | 19760 | 14100 | 0.0991 | 0.164 | - | - | - | - |
| 400 | 23.5 | 10.5 | 5.0 | 125.1 | 23390 | 16080 | 0.0754 | 0.125 | - | - | - | - |
Type |
Desciption |
Rated Voltage |
NO. of Cores |
Nomibal section (mm2) |
Applications |
YJV YJLV |
Cu or Al conductor,XLPE insulated.PVC sheathed electric cable |
0.6/1KV |
1,2,3,4 |
1.5 to 400 |
For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces. |
3+1 |
3×4+1×2.5 to 3×400+1×185 |
||||
6/6kV |
1,3 |
25 to 500 |
|||
8.7/10kV 8.7/15kV 12/20kV |
1 |
25 to 500 |
|||
3 |
25 to 300 |
||||
21/35kv |
1 |
50 to 500 |
|||
YJV22 YJLV22 |
Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable |
0.6/1KV |
3 |
1.5 to 400 |
Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
4 |
4 to 240 |
||||
6/6kV 8.7/10kV 8.7/15kV 12/20kV |
3 |
25 to 300 |
|||
21/35kv |
3 |
50 to 240 |
1. Are you a manufacturer or a trading company?
We are a professional cable manufacturer with 30 years of production experience
2. What are our payment terms?
Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit
3. What is the delivery time?
The delivery time is usually 10-30 days. If the order quantity is large, the delivery time needs to be negotiated again.
4. Can we provide customers with free samples?
Of course, we provide free samples for customers to check
5. Does your price include customs clearance at the destination, import tax, installation services?
Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services
6. What is your quality guarantee and deadline?

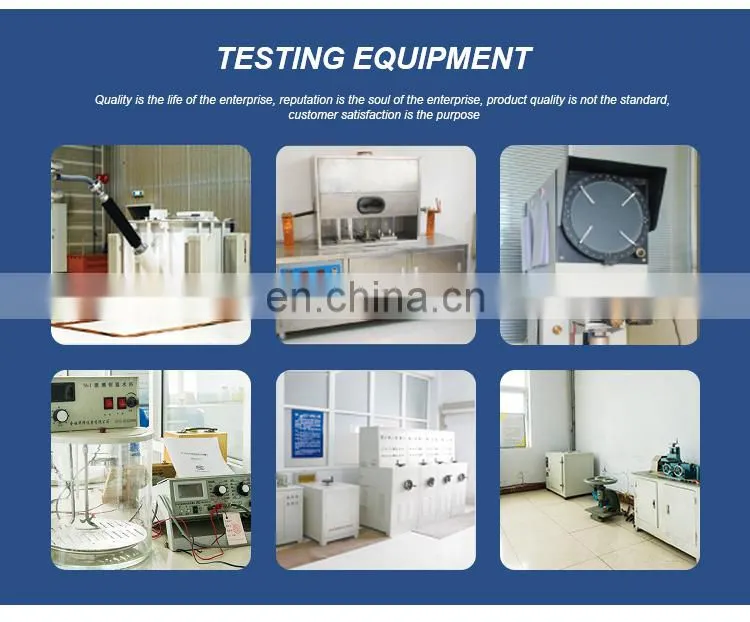

Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
