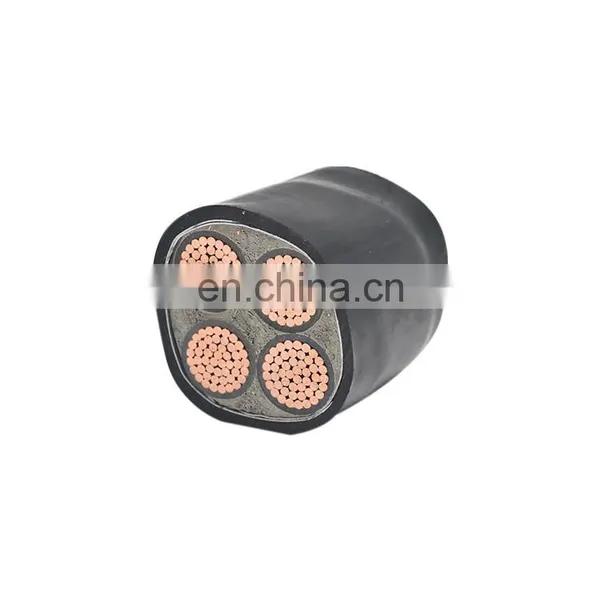

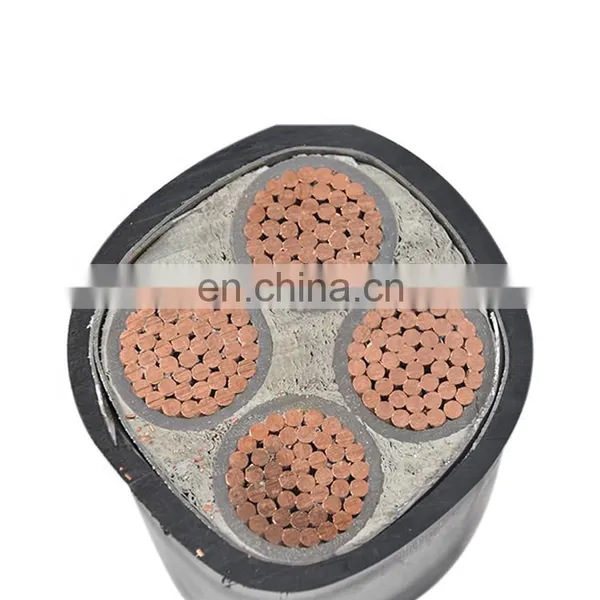

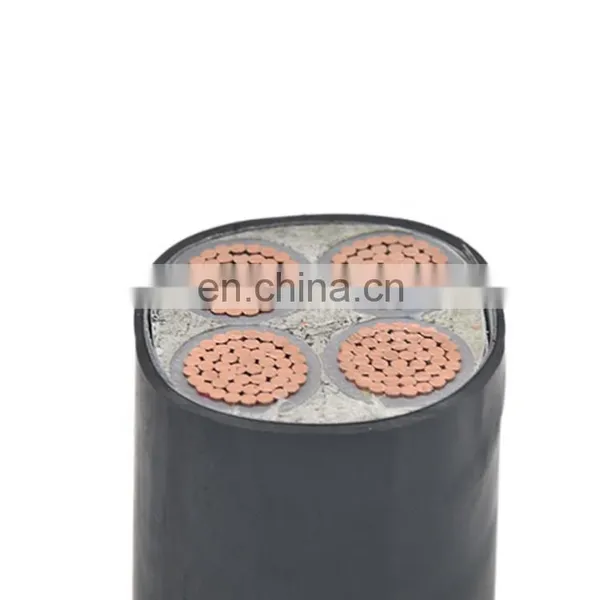

PVC sheath flexible electrical power wires cable 4*240

Conductor nominal section

(mm2)

Conductor diameter

(mm)

Insulation thickness

(mm)

 Sheath thickness

(mm)

Approximate outer diameter of cable

(mm)

Approximate weight of cable

(kg/km)

Cable ampacity

(A)

Type

Desciption

Rated Voltage

NO. of Cores

Nomibal section

(mm2)

Applications

YJV       YJLV

Cu or Al conductor,XLPE insulated.PVC sheathed electric cable

0.6/1KV

1,2,3,4

1.5 to 400

For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.

3+1

3×4+1×2.5 to 3×400+1×185

6/6kV

1,3

25 to 500

8.7/10kV 8.7/15kV 12/20kV

1

25 to 500

3

25 to 300

21/35kv

1

50 to 500

YJV22 YJLV22

Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable

0.6/1KV

3

1.5 to 400

Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.

4

4 to 240

6/6kV   8.7/10kV 8.7/15kV 12/20kV

3

25 to 300

21/35kv

3

50 to 240
