Help CenterElectrical Metal Conduit Hot Dip Galvanized Steel Pipe Tubing Using ERW Technology With ANSI Standard UL6 Listed
Related Products
-
RSC Electrical Conduit ERW Galvanized Steel Pipe Seamless Steel Pipe With ANSI Standard UL6 Listed of Consistent QualityUS$ 560 - 799MOQ: 10 Metric Tons -
RSC Erw Hot Dip Galvanized Rigid Steel Pipe Seamless Steel Pipe With ANSI C80.1 UL6 Listed Easy to Bending,cutting and ThreadingUS$ 570 - 780MOQ: 10 Metric Tons
-
Electrical Rigid Metal Conduit Ansi C80.1 UL6 Standard With Excellent Protection,strength,safety and Ductility for Wiring WorksUS$ 560 - 799MOQ: 10 Metric Tons
-
East Conduit Galvanized Electrical Rigid Metal Conduit UL6 Resists Cracking,flaking,peeling,impact,damage From Severe BendingUS$ 560 - 799MOQ: 10 Metric Tons
-
ERW Electrical Rigid Metal Conduit Hot Dip Galvanized Welded Steel Pipe Ansi C80.1 UL6 Standard With Lower Life-cycle CostsUS$ 560 - 799MOQ: 10 Metric Tons

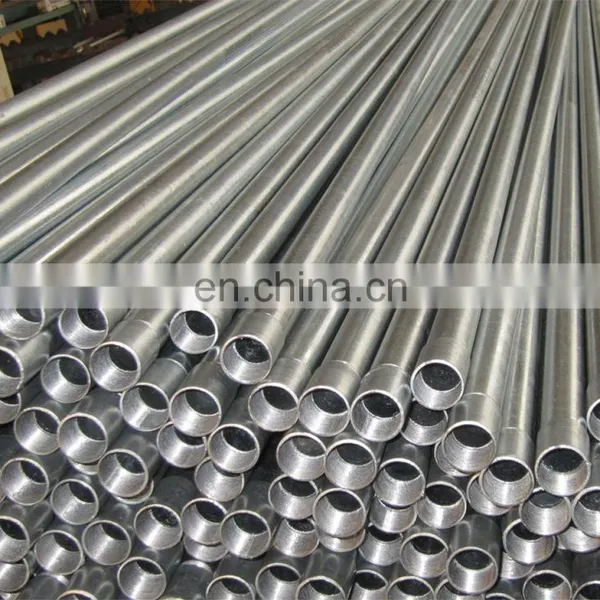

Consistent Quality- We manufacture for long life; it is durable, strong, and suitable for bending. The steel is welded to ensure quality standards are met strictly. The inside surface of the pipe is obstruction-free and extra smooth, making wire pulling and pushing easy and reducing friction between wall and wire. The product is easy to cut, form and join.
Excellent ID smoothness- We manufacture the pipes with removing ID flash during pipe making and smoothing out ID from zinc dross after galvanizing to provide excellent smoothness and more wire capacity together with no hassle in stripping.
Lower Life-cycle costs- East conduit resists cracking, flaking, peeling, impact, and damage from severe bending. lts physical and mechanical properties ensure that the pipe has an extended life cycle and helps for usage or storage without trouble in quality.
Protection from Environmental Damage and Mechanical Use - the thorough inside and outside zinc coating of East Conduit provides enhanced, second to none corrosion protection.

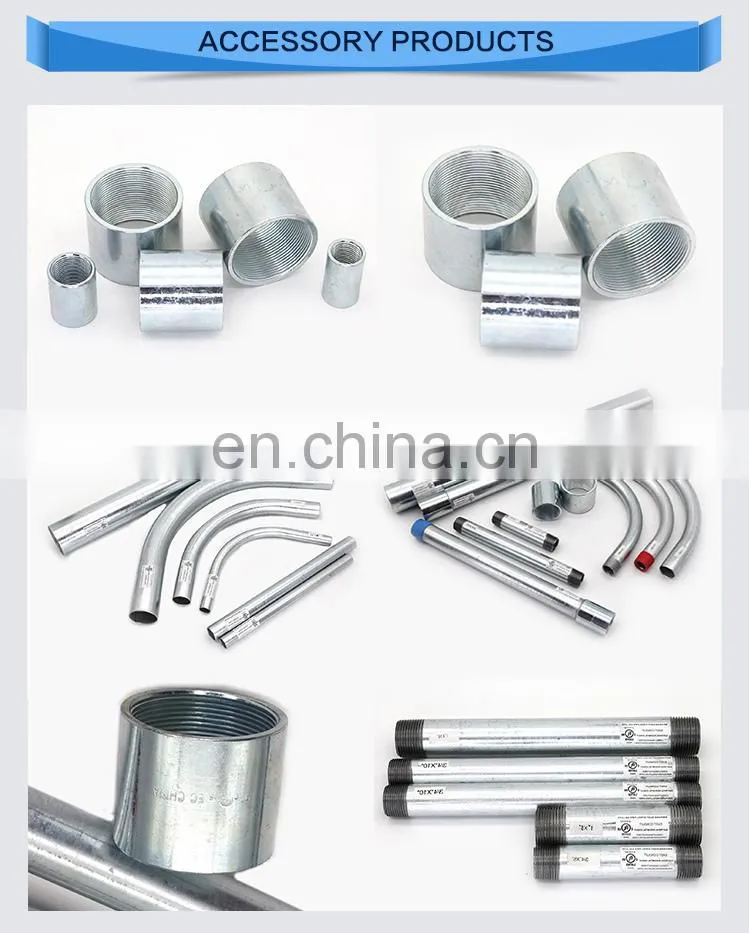

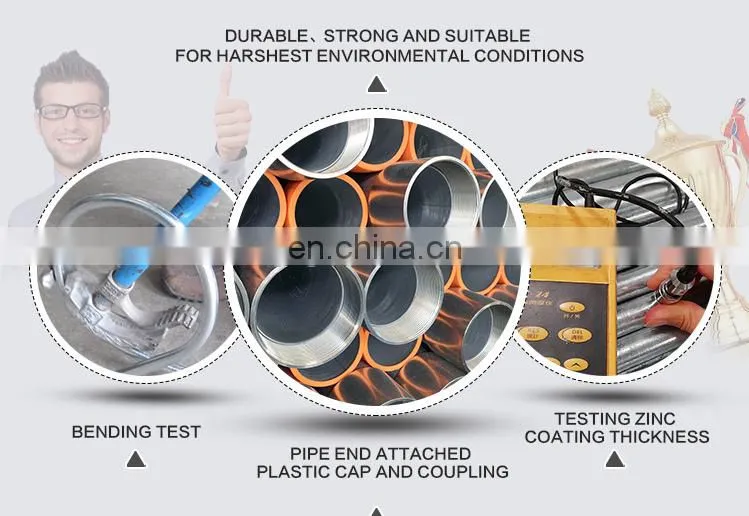

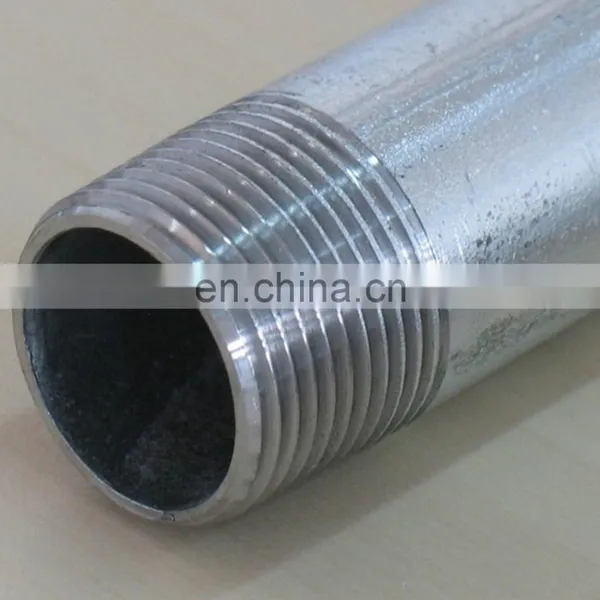

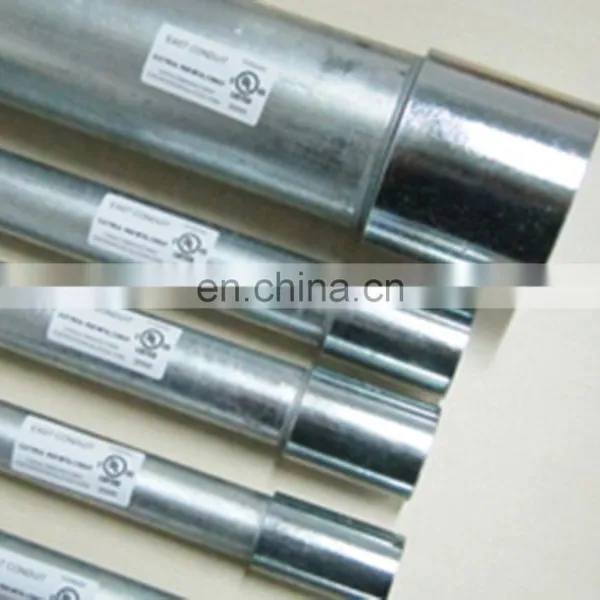

Both Ends-threaded both ends with one coupling and plastic cap
Standard :UL6 & ANSI C80.1 / CSA Standard C22.2 No.45.1-07
| Trade Size |
Nominal Wt. per 100Ft (30.5M) |
Nominal Outside Diameter | Nominal Wall Thickness | ||||
| U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
| 1/2" | 16 | 82 | 37.2 | 0.840 | 21.3 | 0.104 | 2.60 |
| 3/4" | 21 | 109 | 49.44 | 1.050 | 26.7 | 0.107 | 2.70 |
| 1" | 27 | 161 | 73.03 | 1.315 | 33.4 | 0.126 | 3.20 |
| 1-1/4" | 35 | 218 | 98.88 | 1.660 | 42.2 | 0.133 | 3.40 |
| 1-1/2" | 41 | 263 | 119.30 | 1.900 | 48.3 | 0.138 | 3.50 |
| 2" | 53 | 350 | 158.76 | 2.375 | 60.3 | 0.146 | 3.70 |
| 2-1/2" | 63 | 559 | 253.56 | 2.875 | 73.0 | 0.193 | 4.90 |
| 3" | 78 | 727 | 329.77 | 3.500 | 88.9 | 0.205 | 5.20 |
| 3-1/2" | 91 | 880 | 399.17 | 4.000 | 101.6 | 0.215 | 5.50 |
| 4" | 103 | 1030 | 467.21 | 4.500 | 114.3 | 0.225 | 5.70 |
| 5" | 129 | 1400 | 635.04 | 5.563 | 141.3 | 0.245 | 6.20 |
| 6” | 155 | 1840 | 834.62 | 6.625 | 168.3 | 0.266 | 6.80 |
- Length: 10Ft (3.05m) + 1/4" (6mm)
- Outside Diameter: 1/2"~2" + 0.005"(+0.13mm); 2-1/2" + 0.010"(+0.25mm);
3" + 0.015"(+0.38mm); 3-1/2"~4" + 0.020"(+0.50mm)
Q1.Are you a manufacturer or trading company?
A:We are a manufacturer specializing in steel pipe related products for more than 60 years in domestic market, so we can provide products stably for a long time with lower price.
Q2.Can you provide free sample for our test?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. You only need to bear the freight and the sample will be sent out within 7 days.
Q3. Do you have any MOQ limit for production?
A: We don’t have any MOQ limit. But as for our steel pipe product, we usually use container transport for lower freight. In the case of express delivery, high freight charges will be generated.
Q4. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly buyer confirms the samples(if you need) and places deposit for formal order.
Finally we arrange the production.
Q5. Is it OK to print my logo on the product or the carton packing?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
