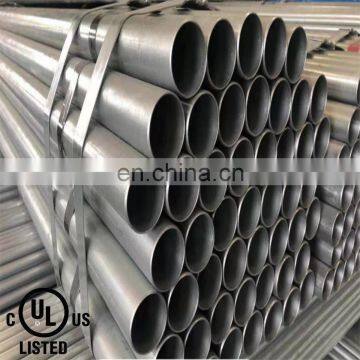

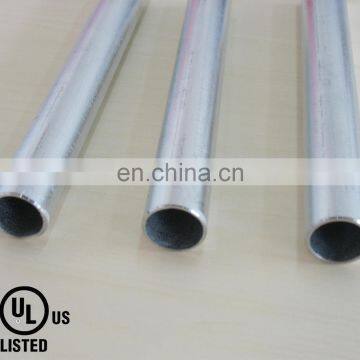

electrical metallic tube emt pipe ul797
- 3000 Metric Ton / Metric Tons per Month
- qingdao tianjin shanghai
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Certification: | UL | Thickness: | 0.042, 0.083 |
Application: | Structure Pipe | Surface Treatment: | Galvanized | Technique: | ERW |
Alloy Or Not: | Non-alloy | Outer Diameter: | 0.706 - 4.5 inch | ||
Secondary Or Not: | Non-secondary | Special Pipe: | EMT Pipe | Section Shape: | Round |
Product Description

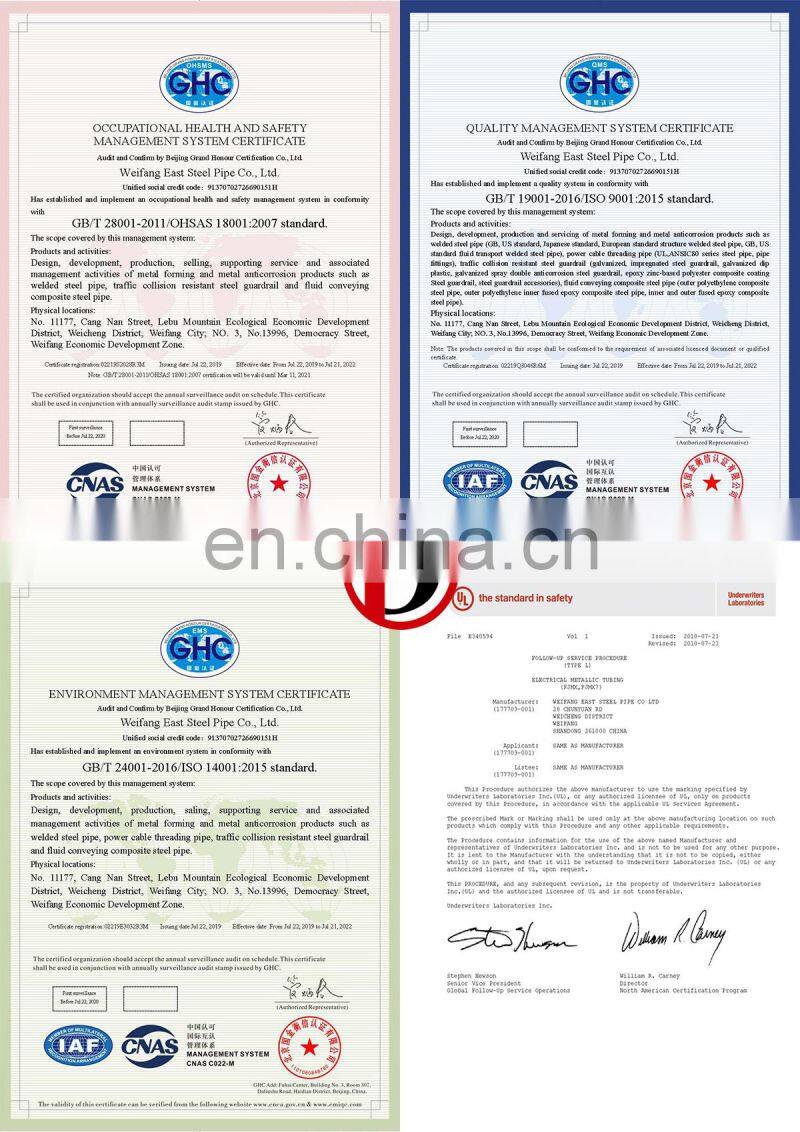

1.Standard:UL797 & ANSI C80.3 File No.:E340594
2.Tade Size : from 1/2” to 4”,all size are available ;
3.Length: 3050mm or according to customer’s requirement
4.Usage: through the electrical wires with the purpose of protection for the electrical raceway system
5.Surface finished: Hot dip galvanized(HDG).
6.Material : carbon steel coil
7.Package: the conduits coverd with pvc paper then tied with steel straps
8.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
9.Payment Term: L/C at sight or T/T
Dimension and Weight Chart
Trade Size | Nominal Wt. per 100Ft(30.5M) | Nominal Outside Diameter | Nominal Wall Thickness | ||||
U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
1/2" | 16 | 30 | 13.5 | 0.706 | 17.93 | 0.042 | 1.07 |
3/4" | 21 | 46 | 20.7 | 0.922 | 23.42 | 0.049 | 1.24 |
1" | 27 | 67 | 30.6 | 1.163 | 29.54 | 0.057 | 1.45 |
1-1/4" | 35 | 101 | 45.6 | 1.51 | 38.35 | 0.065 | 1.65 |
1-1/2" | 41 | 116 | 52.8 | 1.74 | 44.2 | 0.065 | 1.65 |
2" | 53 | 148 | 67.2 | 2.197 | 55.8 | 0.065 | 1.65 |
2-1/2" | 63 | 216 | 97.9 | 2.875 | 73.03 | 0.072 | 1.83 |
3" | 78 | 265 | 120 | 3.5 | 88.9 | 0.072 | 1.83 |
3-1/2" | 91 | 348 | 158 | 4 | 101.6 | 0.083 | 2.11 |
4" | 103 | 392 | 178 | 4.5 | 114.3 | 0.083 | 2.11 |
Applicable Tolerances:
Length: 10Ft (3.05m) ± ¼” (±6.35mm).
Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm)
