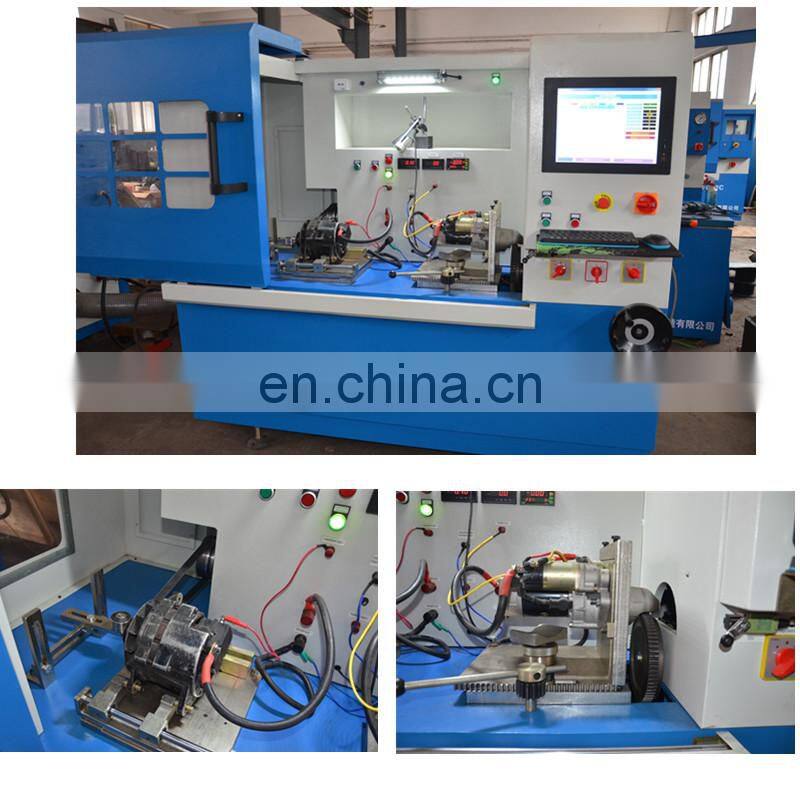

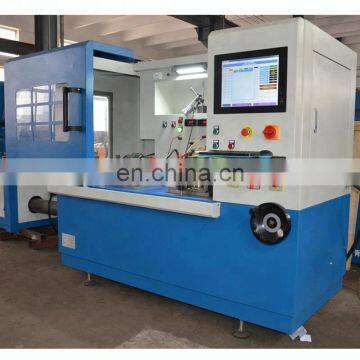

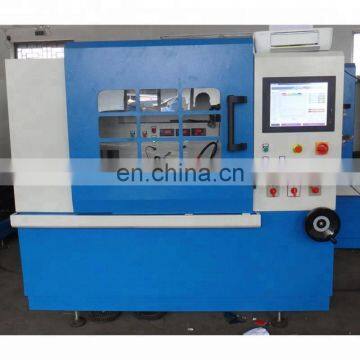

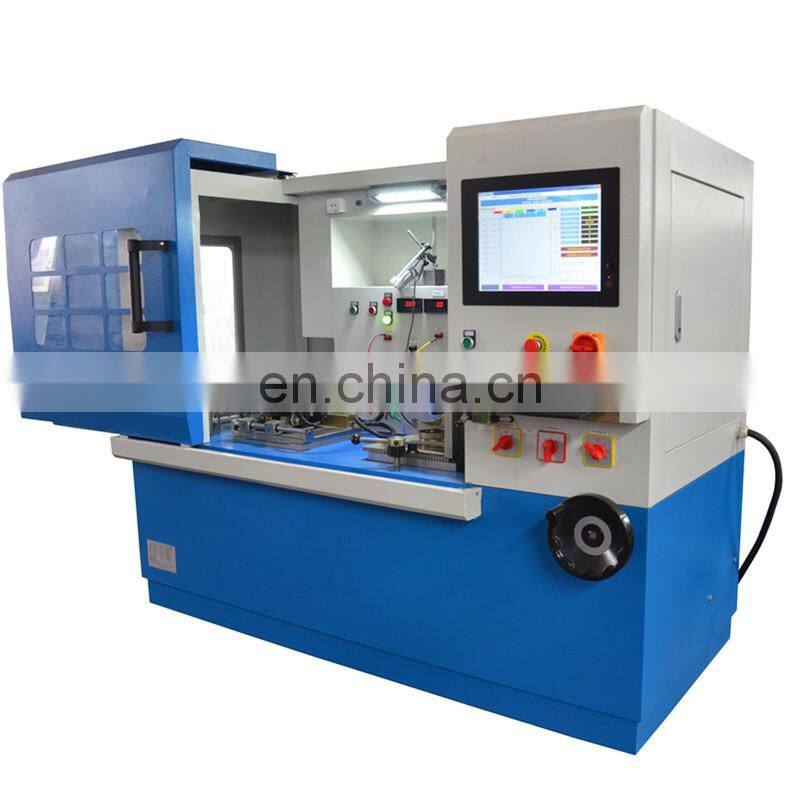

HLD-FQZ-2D model Automatic Running Starter and Alternator Test Bench
General introduction
It can be used to test Alternators and Starters of various vehicles (Car, Truck, Bus, Tractor, Excavator, etc);
-
Test Alternator (Generator): 15KW, 0-200A, 12V or 24V, 10000RPM
Test item: Speed, Voltage, Current (Load or no-load)
Test Starter: 25KW, 0-2000A, 0-200N.M, 12V or 24V or 48V
Test item: Torque, Voltage, Current (Load or no-load)
Technical parameter:
Model no |
HLD-FQZ-2D |
Language |
English/Spanish, etc |
Material |
Metal plate |
Painting |
Powder painting, durable and beautiful |
Color |
Blue |
Voltage |
380V 50 Hz 3P |
Motor power |
18KW |
Motor speed |
0-3600Rpm |
Frequency converter power |
11KW |
Alternator testing: | |
Maximum power |
15KW |
Maximum current |
300A |
Maximum voltage |
80V |
External battery |
No |
Excitation voltage |
12V/24V |
Speed range |
No load:0-12000Rpmad; Load:0-10000Rpm |
Load mode |
Electronic module (advance) |
Motor drive style |
Belt connect |
Clamp style |
Mounting clamp, fasten or loosen with button control, easy to mount or remove |
Starter testing: | |
Maximum Power |
25KW |
Maximum current |
2000A |
Maximum torque |
200N.m |
Test solenoid excitation voltage |
12V/24V |
Need external battery |
12V/24V |
Accessories: | |
Accessory wires, belt, blank plates for starters, fuses, etc. | |
Others you may want to know: | |
MOQ |
1set |
Warranty period |
12 months |
Payment term |
T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time |
35 days after receiving downpayment |
HS code |
90312000.90 |
Packing sizes |
1870*1020*1660mm=3.17CBM |
Similar test benches for reference:
Click for more detail about the similar alternator starter test benches:
https://haolida.en.china.cn/productgrouplist-802632698/Alternator_Starter_Test_Bench.html?spm=a2700.8304367.prup15aafb.3.342f7f4cRdZjss
Why Choose us:
32 years’ design,development and produce experience
Professional R&D team
Strict QC
A good pre-sale and after-sale service
Can design and make according to customer’s requests
