Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd
A professional manufacture of automotive maintenance and testing equipments for heavy duty vehicles.

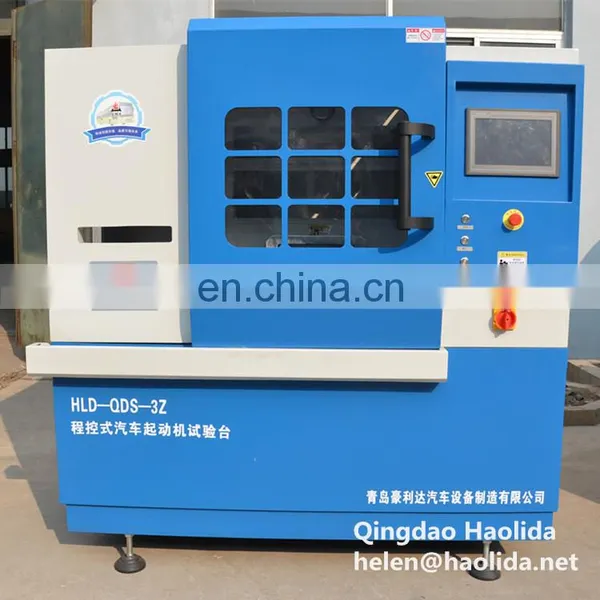

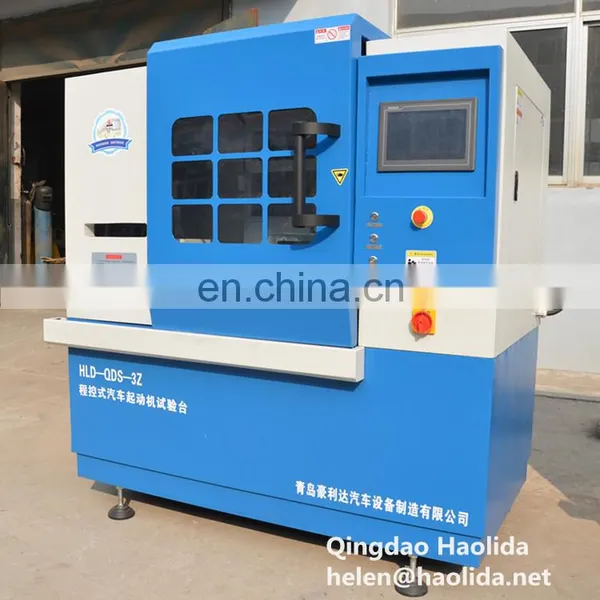

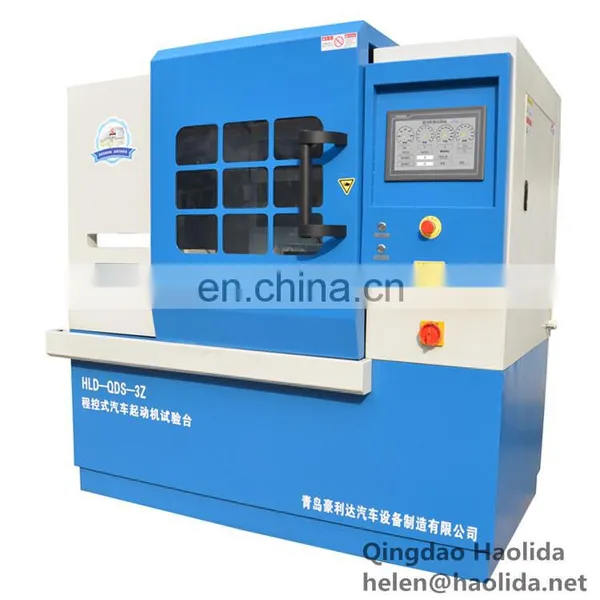

HLD-QDS-3Z Model Automobile Computer Control Starter Motor Testing Equipment
Test items:
1. Test no-load performance of the starter: no-load current, voltage and speed
2. Test load performance of the starter: load voltage, current, troque and speed
3. Test braking performance of the starter: braking voltage, current and torque
4. Test electromagnetic coil of the starter: absorb-pull voltage and current
Technical parameter:
1. Input power source: 380V 50Hz two phase
2. Working power supply of the starter: 0-30V (adjustable randomly, constant voltage and current)
3. Working power capacity of the starter: 15KVA
4. Max working current of the starter: DC 2000A (braking)
5. Torque test of the starter: 0-200N.m
6. Air pressure set: 0-1.0Mpa
7. Starting time of the starter: 0-9.9S (set randomly)
8. Starter braking: serve motor control device (automatically)
9. Power range of the starter: 0-15KW
10. Speed range of the starter: 0-12000r/min
Others you may want to know: | |
MOQ |
1set |
Warranty period |
12 months |
Payment term |
T/T 50% in advance, the balance be paid before delivery |
Delivery time |
30 days after receiving downpayment |
Packing sizes |
standard packing
|
Other Similar test benches:
Why Choose us:
1. 32 years’ design,development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer’s requests
