Windows System Computer Starter and Alternator Test Bench
- 20 Set / Sets per Month
- Qingdao/Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Haolida | Place of Origin | Shandong, China | |
| Model Number | HLD-FQZ-2D | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description

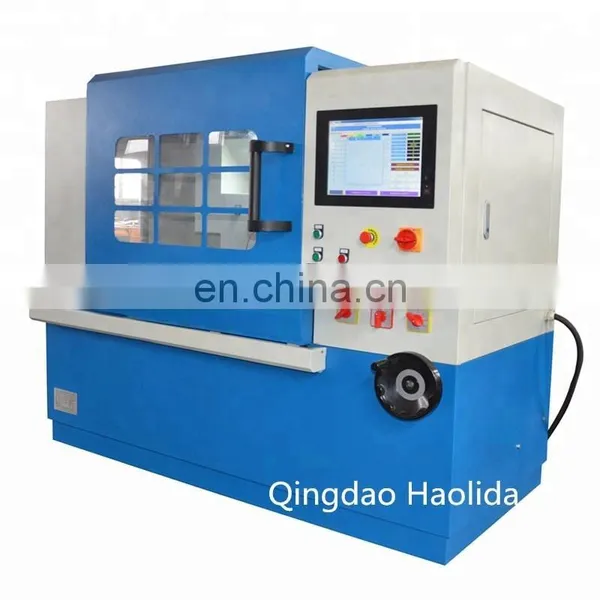

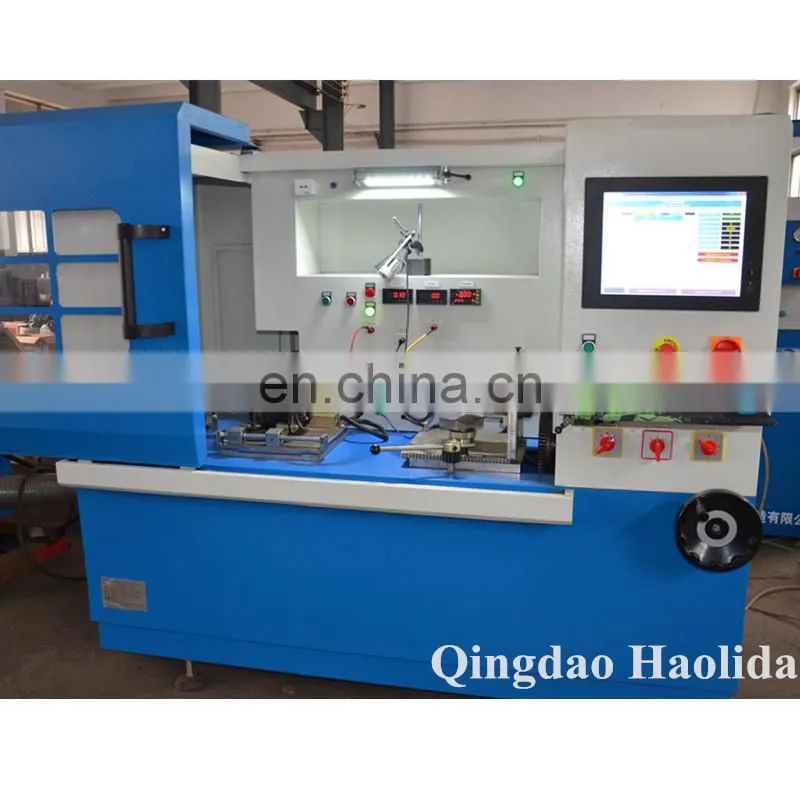

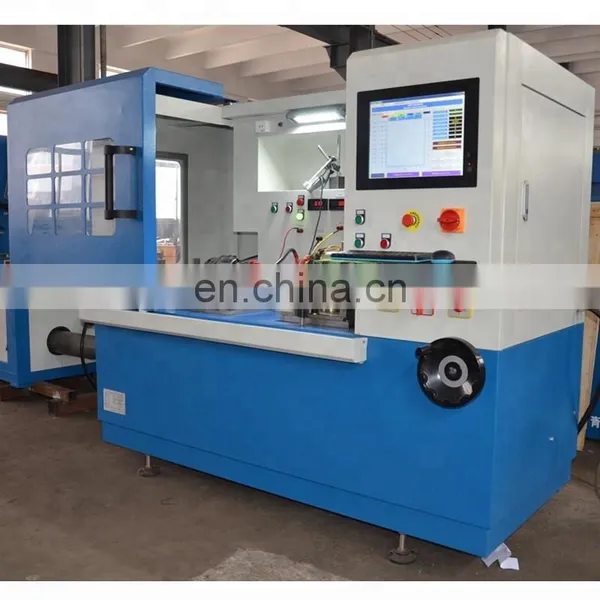

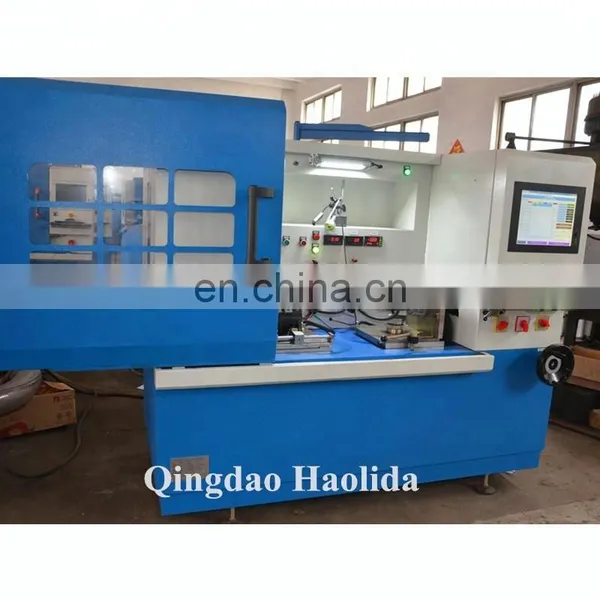

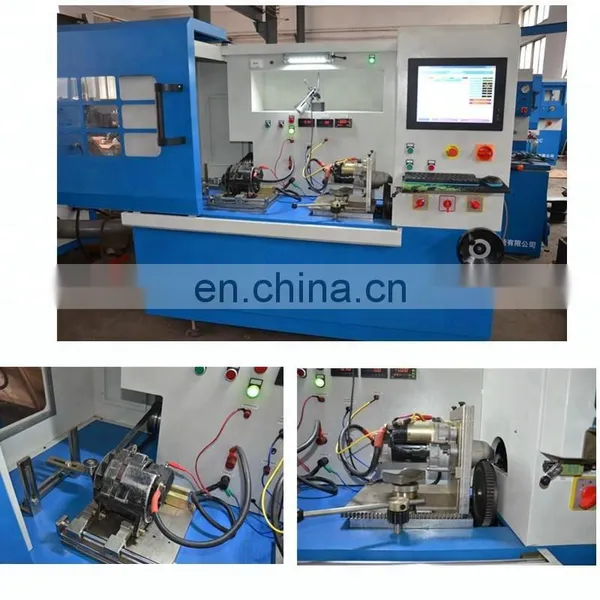

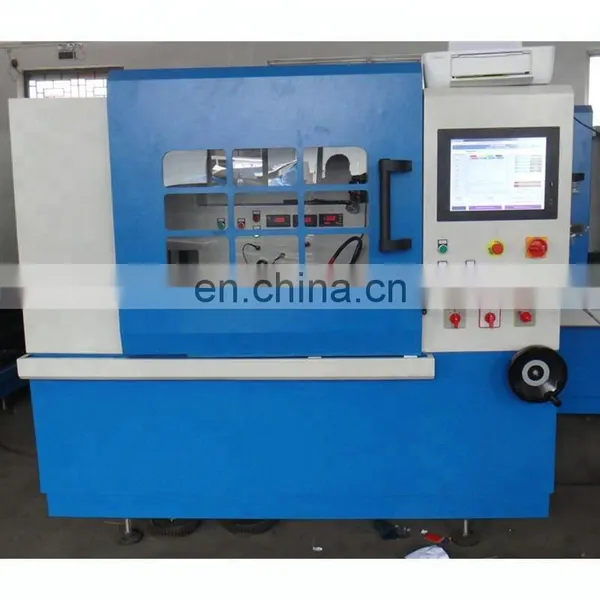

HLD-FQZ-2D model Windows System Computer Starter and Alternator Test Bench
General introduction
It can be used to test Alternators and Starters of various vehicles (Car, Truck, Bus, Tractor, Excavator, etc);
Test Alternator (Generator): 15KW, 0-300A, 12V or 24V, 10000RPM
Test item: Speed, Voltage, Current (Load or no-load)
Test Starter: 25KW, 0-2000A, 0-200N.M, 12V or 24V
Test item: Torque, Voltage, Current (Load or no-load)
Technical parameter:
Model no | HLD-FQZ-2D |
Language | English/Spanish, etc |
Material | Metal plate |
Painting | Powder painting, durable and beautiful |
Color | Blue |
Voltage | 380V 50 Hz 3P |
Motor power | 15KW |
Motor speed | 0-3600Rpm |
Frequency converter power | 15KW |
Alternator testing: | |
Maximum power | 15KW |
Maximum current | 300A |
Maximum voltage | 80V |
External battery | No |
Excitation voltage | 12V/24V |
Speed range | No load:0-12000Rpmad; Load:0-10000Rpm |
Load mode | Electronic module (advance) |
Motor drive style | Belt connect |
Clamp style | Mounting clamp, fasten or loosen with button control, easy to mount or remove |
Starter testing: | |
Maximum Power | 25KW |
Maximum current | 2000A |
Maximum torque | 200N.m |
Test solenoid excitation voltage | 12V/24V |
Need external battery | 12V/24V |
Accessories: | |
Accessory wires, belt, blank plates for starters, fuses, etc. | |
Others you may want to know: | |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time | 35 days after receiving downpayment |
HS code | 90312000.90 |
Packing sizes | 1870*1020*1660mm=3.17CBM |
Similar test benches for reference:
Click for more detail about the similar alternator starter test benches:
https://haolida.en.china.cn/productgrouplist-802632698/Alternator_Starter_Test_Bench.html?spm=a2700.8304367.prup15aafb.3.342f7f4cRdZjss
Why Choose us:
32 years’ design,development and produce experience
Professional R&D team
Strict QC
A good pre-sale and after-sale service
Can design and make according to customer’s requests
