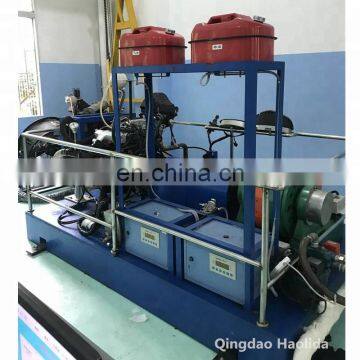

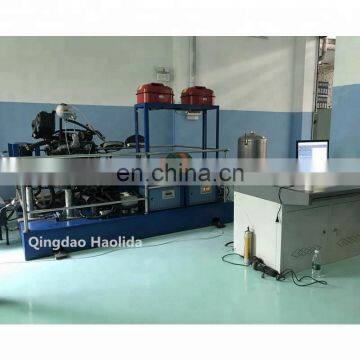

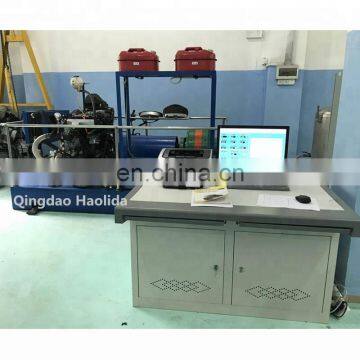

FWC-2 model Engine Dynamometer Test Equipment
General introduction

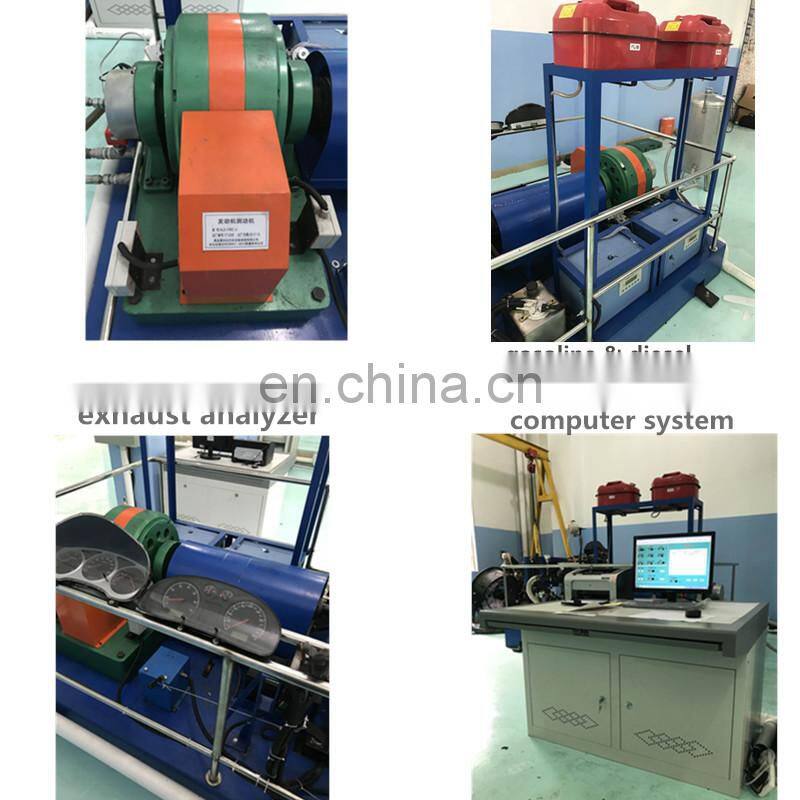

This test bench is used for the test of engine dynamometer system. It can test the speed, power, torque, oil pressure, intake and exhaust temperature, intake and exhaust water temperature, fuel consumption, exhaust gas data analysis ,etc. With a computer system (control, collect, storage, display, print), dynamometer work platform, a full set of engine ignition related accessories, throttle controller and throttle actuator, dynamometer water cooling system with universal coupling Device, engine connection plate, pipeline and so on.
Test items:
1. Test speed of engine
2. Test power of engine
3. Test torque of engine
4. Test oil consumption of engine (optional)
5. Test tail gas of engine (optional)
Technical parameter:
Model no |
FWC-2 |
Language |
English |
Material |
Metal plate |
Painting |
Powder painting, durable and beautiful |
Color |
Blue |
Voltage |
AC 220V 50 Hz |
Rated power |
150KW (can be made bigger power) |
Rated speed range |
2500-6000r/min |
Rated power torque |
50N.m-500N.m |
Rated excitation voltage |
50V |
Rated excitation current |
10A |
Inlet temperature of cooling water |
25℃ |
Outlet temperature of cooling water |
50℃ |
Rated power cooling water pressure |
0.2Mpa |
Cooling water consumption |
56L/min |
Accessories: | |
Accessory wires, etc. | |
Others you may want to know: | |
MOQ |
1set |
Warranty period |
12 months |
Payment term |
T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time |
35 days after receiving downpayment |
HS code |
90312000.90 |
Why Choose us:
1. 32 years’ design,development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer’s requests
