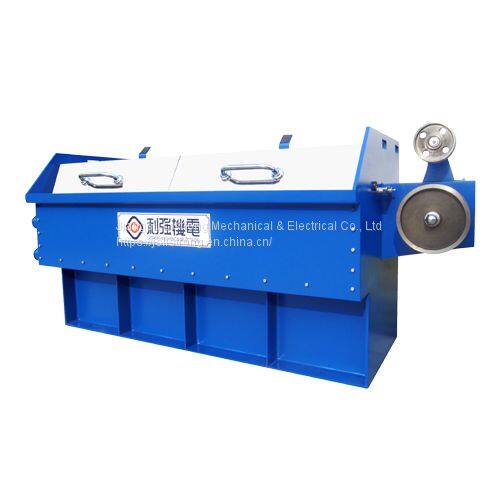

Help Center17DC Intermediate Copper Wire Drawing Machine
Related Products
-
17DST Intermediate Copper Wire Drawing Machine With AnnealerUS$ 48000 - 49999MOQ: 1 Piece -
24DW Copper Fine Wire Drawing MachineUS$ 8500 - 9999MOQ: 1 Set
-
24DBX Stainl Steel Wire Drawing MachineUS$ 9000 - 9999MOQ: 1 Set
-
500P Double Twist Bunching MachineUS$ 15000 - 16000MOQ: 1 Set
-
24DT Fine Copper Wire Drawing Machine With AnnealerUS$ 20000 - 22000MOQ: 1 Set
Machine type |
17DC |
Inlet diameter(MM) |
φ2.5-φ3.5 |
Outlet diameter (MM) |
φ0.4-φ1.6 |
Max. speed(MPM) |
1500 |
Max. Number of Drawing dies |
17 |
Slip ratio of m/c |
18% |
Fix speed capstan slip ratio |
12.5% |
Capstan |
Tungsten |
Max. Capstan dia. (MM) |
φ260 |
Fix speed capstan dia. (MM) |
φ280 |
Frame |
Welded by steel plate |
Main machine power |
45KW three phase AC-motor |
Spooler power |
15KW three phase AC-motor |
Correction system |
Automatically control |
Dynamic control |
Double frequency converters control |
Transmission method |
By high precision gears |
Pay-off method |
0ver head |
Traversing method |
Flat belt + timing motor |
Tension control |
Pneumatic balance by swing arm |
Lubrication system of drawing |
Spray |
Suitable spool (MM) |
500mm 630mm |
Capacity for take-up(KG) |
100-400 |
Loading & unloading method |
Shaft type |
Service voltage |
380V |
Brake |
electromagnetic brake |
Machine dimension |
3500L×1200W×1250H |
Machine weight |
4600KG |
Blacks Wang, Mob./Whatsapp:+86-15995861944, Email: info@listrong.cn
Send Inquiry to This Supplier
