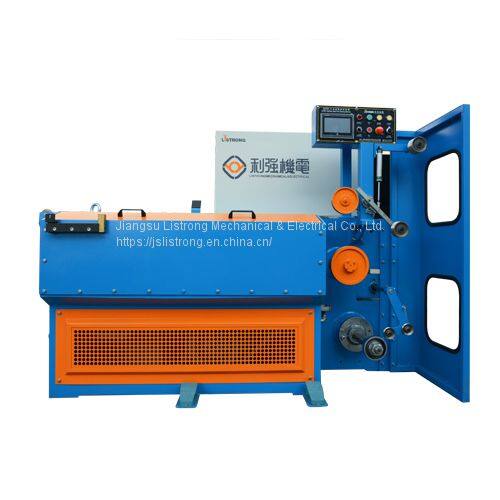

Help Center24DBX Stainl Steel Wire Drawing Machine
Related Products
-
500P Double Twist Bunching MachineUS$ 15000 - 16000MOQ: 1 Set -
24DT Fine Copper Wire Drawing Machine With AnnealerUS$ 20000 - 22000MOQ: 1 Set
-
650P Double Twist Bunching MachineUS$ 17000 - 19000MOQ: 1 Set
-
17DST Intermediate Copper Wire Drawing Machine With AnnealerUS$ 48000 - 49999MOQ: 1 Piece
-
9D Copper Rod Breakdown MachineUS$ 58000 - 59999MOQ: 1 Set
Machine type |
24DBX |
Inlet diameter(MM) |
φ0.6-φ1.2 |
Outlet diameter (MM) |
φ0.1-φ0.3 |
Max. speed(MPM) |
800 |
Max. Number of Drawing dies |
24 |
Slip ratio of m/c |
13％ |
Fix speed capstan slip ratio |
8％ |
Capstan |
Tungsten |
Max. Capstan dia.(MM) |
φ202 |
Fix speed capstan dia. (MM) |
φ167 |
Frame |
Welded by steel plate |
Main machine power |
18.5KW Three phase AC-motor |
Spooler power |
5.5KW Three phase AC-motor |
Correction system |
Automatically control |
Dynamic control |
Double frequency converters control |
Transmission method |
Timing belt |
Pay-off method |
Over head |
Traversing method |
Flat belt + timing motor |
Tension control |
Weight balance by swing arm |
Lubrication system of drawing |
Spray |
Suitable spool (MM) |
φ300 |
Capacity for take-up(KG) |
13 |
Loading & unloading method |
Shaft type |
Service voltage |
380V |
Brake |
Pneumatic brake |
Machine dimension |
2300L×1300W×1900H |
Machine weight |
2500kg |
Blacks Wang, Mob./Whatsapp:+86-15995861944, Email: info@listrong.cn
