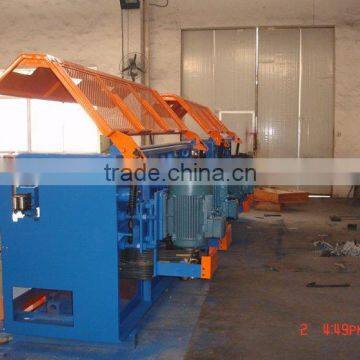

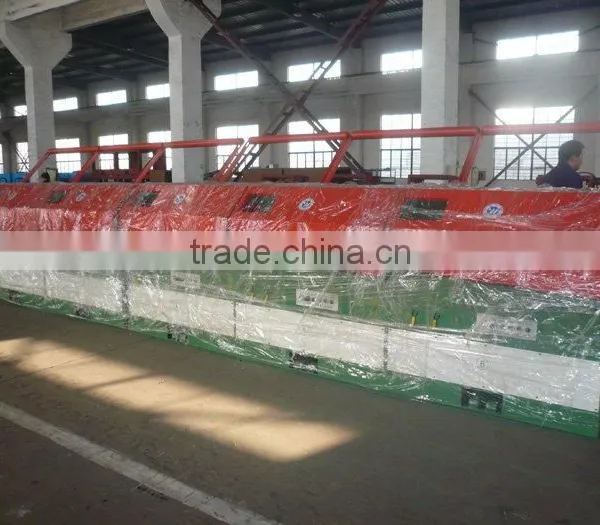

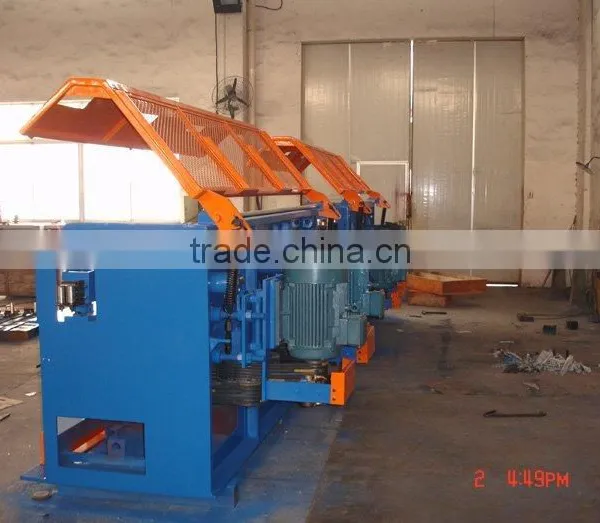

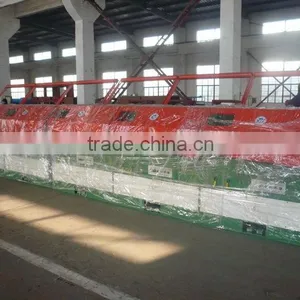

Help CenterCopper Wire Drawing Machine
Related Products
-
Copper Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set -
Copper Wire Drawing MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
ER70S Welding Wire Drawing MachineUS$ 20,000 - 120,000MOQ: 1 Set
-
Non-ferrous Metal Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
al Wire Drawing MachineUS$ 5,000 - 9,500MOQ: 1 Set
brass wire drawing machine
input(max) : diameter 8.0 mm
outp output : diameter 1.3 to 3.0 mfront 5x500mm behind 5x400mm
drawing drum wheel diameter
fixed speed wheel diameter 400 mm
max drawing speed 800 m per min
Machine Type |
JCJX-B22 (JCJX-B22/A) |
JCJX-B24 (JCJX-B24/A) |
JCJX-22D (JCJX-22DA) |
JCJX-24D (JCJX-24DA) |
Inverter Control |
Double Inverter Control |
|||
Inlet Dia.(mm) |
0.60~φ1.20 |
φ0.50~φ1.20 |
φ0.60~φ1.20 |
φ0.50~φ1.00 |
Outlet Dia.(mm) |
φ0.10~φ0.50 |
φ0.08~φ0.40 |
φ0.10~φ0.32 |
φ0.08~φ0.25 |
Max. Die No. |
22 |
24 |
22 |
24 |
Max.Line Speed(m/min) |
2000/(2500) |
|||
Body Structure |
Ironed cast |
|||
Drawing Capstan |
Ceramic Plasma Capstan |
|||
Slip ratio of m/c(%) |
15 |
13 |
15 |
13 |
Fix speed capstan ratio(%) |
8 |
8 |
8 |
8 |
Main motor power(k w) |
15 |
15 |
11 |
11 |
Take-up motor(k w) |
4(5.5) |
4 |
4 |
4 |
Max capstan dia.(mm) |
Φ194/(242) |
|||
Fix speed capstan Dia.(mm) |
Φ159/(206) |
|||
Transmission type |
By flat belts |
|||
Take-up bobbin size(mm) |
Φ300 (apertureφ127) |
|||
Traversing type |
Synchronous motor+belt |
|||
Take-up type |
Shaft Type |
|||
Tension Control |
Weight blance type |
|||
Lubrication type |
Spray |
|||
Brake |
Magnetic brake |
|||
Dimension (mm) |
2300x1600x1750 |
2300x1600x1750 |
2000x1600x1900 |
2000x1600x1900 |
Weight (KG) |
2500 |
2500 |
2200 |
2200 |
