China Factory Supplier 50mm2 Rabbit Conductor 100mm2 Dog Conductor ACSR Cable

FOB Price

US$ 1 - 99 / Meter

1 Meter(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMJT	Place of Origin	China
Model Number	ACSR Conductor
Application	Overhead

Product Description

1. Brief Description

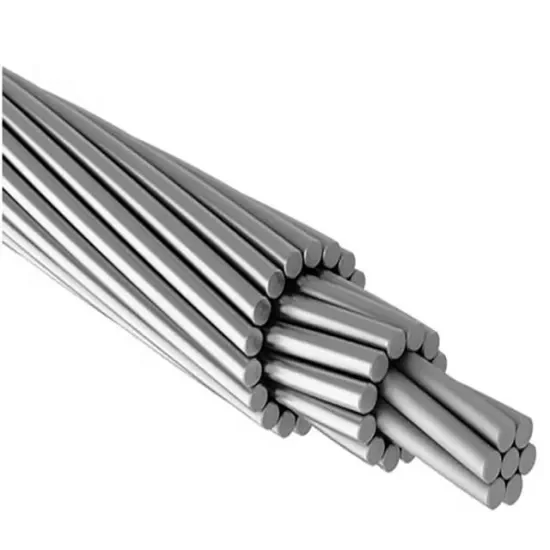

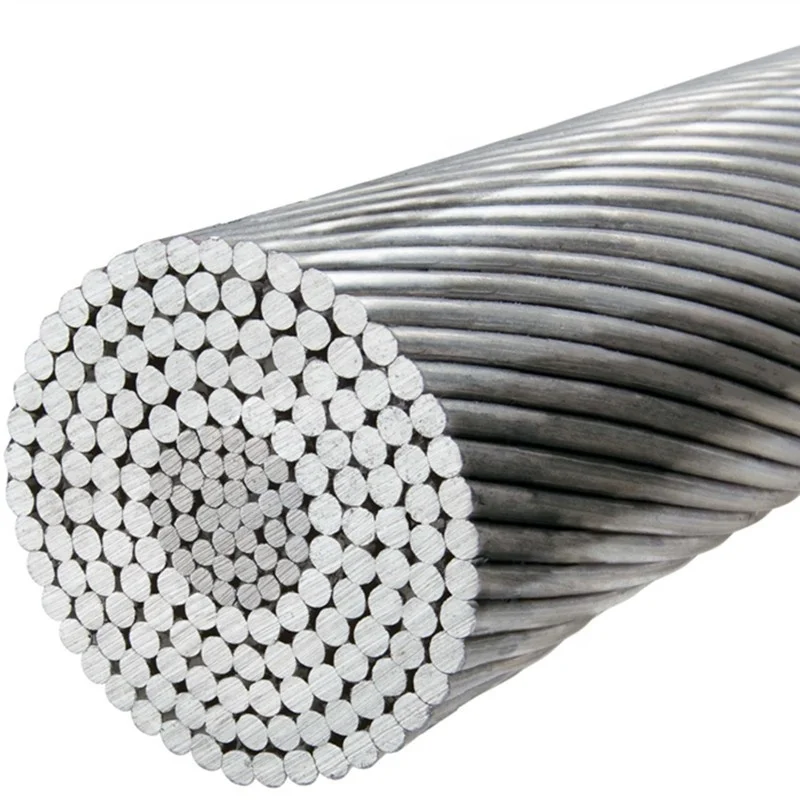

ACSR(Aluminum Conductor Steel Reinforced),consisting of a galvanized steel core which is surrounded by concentric layers of aluminum wires, and can becorrosion resistant if necessary. It is widely used in the overhead power distribution system.

2.Features:

a. high tensile strength b. better sag properties c. economic design d. best suited for transmission lines with long spans

3.Application: ACSR conductor have been widely used in power transmission lines with various voltage. Because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.

4.Standard: We can supply this conductor according to different recognized standards, such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110, and customers’ special specifications also can be satisfied.

5.Package: In coils, wooden drums, steel drums or steel-wooden drums. We could producing according to the customers' requirements.

6.Material: Conductor: AL1350 pure aluminum Steel core: G1A or G2A steel wire Zinc coating steel wire

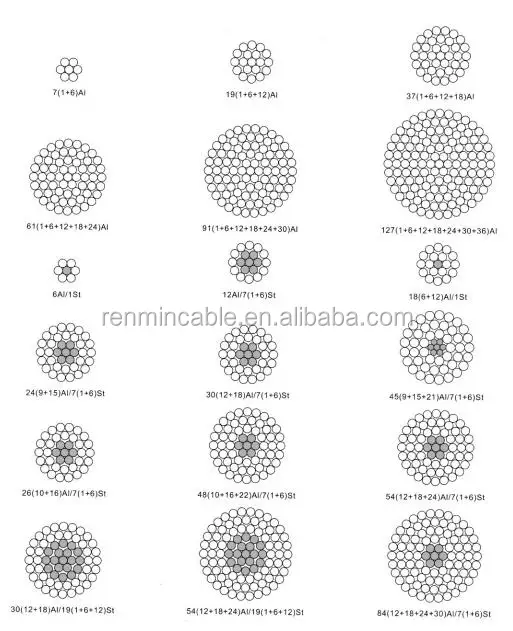

Size	Number / Diameter of wire			Calculated Cross Section Area			Approx. Overall Diameter	Approx. Weight of Conductor	Calculated Breaking Load
	Number / Diameter of wire			Calculated Cross Section Area
		AL	GSW	AL	GSW
mm²	No. / mm	No. / mm	mm²	mm²	mm	kg/km	kN
16	6 / 1.84	1 / 1.84	16	2.7	5.52	64	6.08
25	6 / 2.30	1 / 2.30	24.9	4.2	6.9	101	9.13
40	6 / 2.91	1 / 2.91	39.9	6.7	8.73	161	14.4
63	6 / 3.66	1 / 3.66	63.1	10.5	10.98	255	21.63
100	6 / 4.61	1 / 4.61	100.1	16.7	13.83	405	34.33
125	18 / 2.97	1 / 2.97	124.7	6.9	14.85	397	29.17
125	26 / 2.47	7 / 1.92	124.6	20.3	15.64	503	45.69
...

Attention: We can provide more information than above data, if you need.The above are just some examples.

Detailed images

Our other products

Bare Conductor(AAC AAAC ACSR ACAR ...)

Aerial Bundled Cable(ABC Cable)

Low Voltage Power Cable

Medium Voltage Power Cable

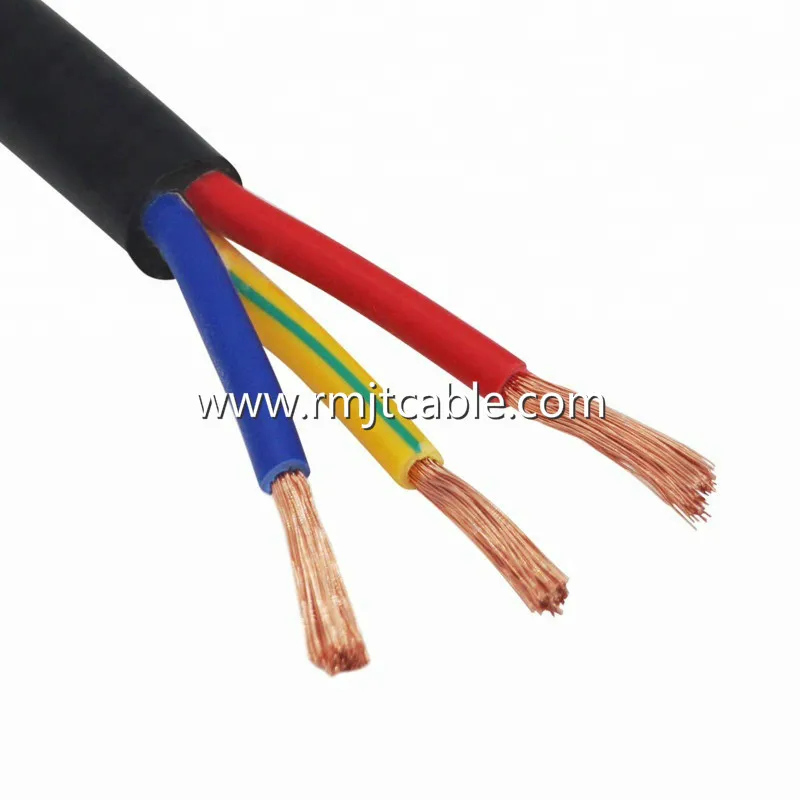

Electrical wire/Cable

Control Cable

Company Profile

People's Cable Group Ltd is a professional cable manufacturer in china, with more than 10 years' experience in cable field, located in Yongding Road, Gongyi City, Henan Province. Our company specialize in manufacturing high, medium and low voltage cable.

And our cable mainly include xlpe power cable, pvc insulated electric cable, fireproof cable, flame-retardant cable, control cable, rubber cable, insulated aerial cable coaxial cable, waterproof cable, aluminum stranded conductor, etc. we have exported to more than 40 countries, and receiving lots of high praise from our clients.

Certification

Packaging and delivery

Our customers

FAQ

Q: I didn't find the cable which I need in this page?
If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q: Are you a trading company or manufacturer?
We are professional manufacturer in Henan, China.

Q: What is the MOQ?
Mostly we sell from stock for normal items, you can buy any quantity unless it is customed-made.

Q: Can you offer me a free sample?
Yes, after price confirmation, you can require for samples to check our quality.

Q: How long to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.

Q: How is your package?
Normally packed with coils and cartons, and wooden/steel wooden drums, other ways can be done according you.

Q: How is the payment?
T/T, L/C is accepted.
